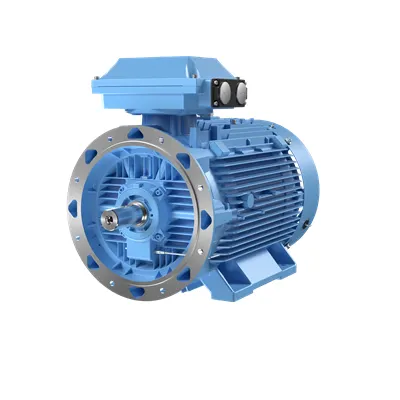

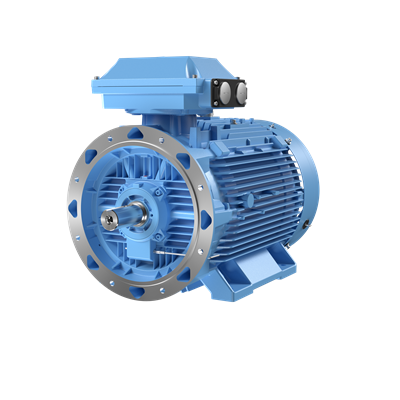

ABB 3GKP356420-BDG 3-Phase Motor - Exdbeb Flameproof
Part Number: 3GKP356420-BDG
Quick Summary
ABB 3GKP356420-BDG is a 3-phase squirrel cage motor for flameproof industrial applications in hazardous areas. The rugged design balances reliability with safety, helping you meet stringent regulatory requirements without sacrificing performance. Customers often struggle with selecting motors that survive high ambient temperatures, limited maintenance windows, and rigorous certification scopes across global sites. This model carries Exdbeb flameproof protection, IP55 enclosure, and IC411 insulation, enabling safe operation in explosive atmospheres up to 40 °C ambient and 1000 m altitude. Its Finland origin, cast-iron frame, and robust bearings support long service life in demanding environments. With one-piece ordering data and standard service factors, you gain installation compatibility and predictable total cost of ownership for mission-critical conveyor, pump, and compressor drives. Designed for efficient operation across variable loads, it helps reduce energy waste and maintenance downtime in continuous duty S1 service.
Product Information
Extended Description
3GKP356420-BDG ABB: (3GKP356420-BDG)
ABB Type Designation
M3KP 355MLB 12
Invoice Description
M3KP 355MLB 12
Product Name
3-Phase squirrel cage motor
Product Type
3KP2__M3KP_IE2_Flameproof_Ex_db_eb_motor
Made To Order
No
Minimum Order Quantity
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015381
Electrical Data
Temperature Class Default
T4
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class NA | Full Load (100%) 93.8 % | Partial Load (75%) 93.9 % | Partial Load (50%) 93.0 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
12
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
EX-Protection
Exdbeb
Gas Group
IIB
Frame Material
Cast Iron
Frame Size
355
Bearing
6322/C3
Bearing NDE
6316/C3
IM Class
IMB5 IM3001
Terminator Box Location
Top
Package Level 1 Units
1 pallet (lift)
Product Net Weight
2224 kg
Gross Weight
2240 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature: Exdbeb flameproof protection for IIB gas groups. Business impact: minimizes ignition risk and streamlines regulatory compliance across global sites. Application: ideal for conveyors, pumps, and compressors in chemical processing and refining environments where maintenance windows are limited and safety certifications matter. Feature: IP55 enclosure, IC411 insulation, ambient 40 °C, altitude 1000 m. Business impact: protects against dust, water ingress, and heat, reducing unplanned downtime and warranty events. Application: outdoor or workshop installations with high ambient conditions, including hazardous area facilities. Feature: Cast iron frame, 355 frame, 12 poles, bearings 6322/C3 and 6316/C3, IMB5 IM3001. Business impact: rugged construction and low wear promote long service life with minimal maintenance. Application: heavy-duty drives in conveyors and pumps under harsh operating conditions. Feature: IE Class NA with efficient full-load performance (approx. 93.8% at 100%, 93.9% at 75%, 93.0% at 50%). Business impact: energy efficiency translates to lower operating costs and reduced cooling loads. Application: continuous duty drives for fans, mixers, and compressors in process industries. Feature: 12-pole, 355 frame, Ex-protection, top termination box, and Finland-origin engineering. Business impact: reliable stock-keeping, easier installation, and proven supply chain support for global projects. Application: scalable motor solution for oil & gas, chemical, and metals sectors with strict safety and procurement standards.
Get a Quick Quote for a ABB 3GKP356420-BDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GKP356420-BDG?
Enquire Now
FAQs
To preserve flameproof integrity, install per Exdbeb certification guidelines, ensuring proper enclosure sealing and correct termination box access. Use compatible connector hardware and verify IP55 protection against dust and water ingress. With a 1000 m altitude rating and 40 °C ambient tolerance, select mounting and cable routing that maintain safe heat dissipation and service accessibility for conveyors and pumps.
Key specs include Exdbeb flameproof protection, IP55, IC411 insulation, 12 poles, 355 frame, and voltage code D. Operating data note 50 Hz efficiencies around 93% at full load, with 75% and 50% loads close to that range. Gas Group IIB status and temperature class T4 support safe operation in hazardous environments with continuous S1 duty.
Yes. The motor is designed for S1 continuous operation and accommodates ambient temperatures up to 40 °C with altitude up to 1000 m. The 355 frame, cast iron construction, and IC411 insulation ensure stable temperatures under load, while the IP55 enclosure protects against dust and water ingress in challenging facilities such as chemical plants and refineries.
Key features include a cast iron frame (355), bearings 6322/C3 and 6316/C3, and IMB5 IM3001 alignment. These elements deliver strong mechanical rigidity, reduced wear, and longer service intervals. The top terminal box location simplifies wiring during retrofits or new installs, while the Finnish origin supports consistent quality and documentation across sites.
The motor carries Exdbeb flameproof protection, IP55, IC411 insulation, Gas Group IIB, and Temperature Class T4. Origin is Finland, with a Customs Tariff Number 85015381 and packaging as 1 pallet (lift). This combination supports regulatory compliance, traceability, and straightforward cross-border procurement for global industrial projects.
