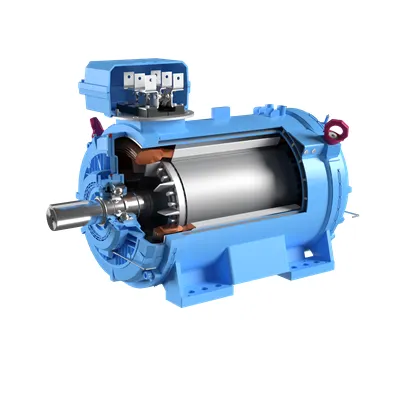

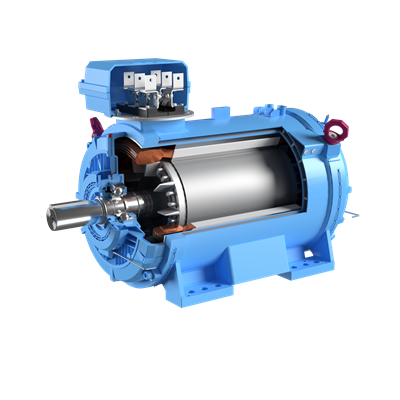

ABB 3GLP353810-ADG 3-Phase squirrel cage motor - IE2
Part Number: 3GLP353810-ADG
Quick Summary
ABB 3GLP353810-ADG is a water-cooled, 3-phase squirrel cage motor designed for heavy industrial drives. In demanding plant environments, cooling limitations and downtime can erode productivity, especially where ambient temperatures reach 40 °C and operation occurs up to 1000 m altitude. This motor addresses those challenges with robust water cooling, a welded steel frame, and a compact 355 frame size. Key attributes include IP55 protection, IE2 efficiency, and IC insulation class, all aligned with industry expectations for reliable, long-life operation. The unit is manufactured in Finland and supports standard mounting footprints, enabling seamless integration with OEM equipment and ABB drives to optimize total cost of ownership.
Product Information
Extended Description
3GLP353810-ADG ABB: Water cooled motor
ABB Type Designation
M3LP 355LKA 6
Invoice Description
Water cooled motor
Product Name
3-Phase squirrel cage motor
Product Type
3LP2__water_cooled_motor_IE2
Made To Order
No
Minimum Order Quantity
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015394
Electrical Data
Temperature Class Default
--
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC71W
IE Class Data (50 Hz)
IE Class IE2 | Full Load (100%) 95.0 % | Partial Load (75%) 95.2 % | Partial Load (50%) 95.1 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
6
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Welded Steel
Frame Size
355
Bearing
6322/C3
Bearing NDE
6316/C3
IM Class
IMB3 IM1001
Terminator Box Location
Top
Package Level 1 Units
0 pallet (lift)
Product Net Weight
2200 kg
Gross Weight
2230 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature → Business Impact → Application: Water-cooled design keeps thermal rise in check during continuous S1 duty, enabling sustained torque and reduced thermal derating in high-load applications. This translates to improved process stability in steel and chemical processing lines, where cooling capacity is a bottleneck. Application: Heavy-duty manufacturing environments with elevated ambient temperatures. Long-term energy efficiency is realized through IE2 rating, cutting operating costs in inline drives and pumps without sacrificing performance. Application: High-energy users seeking lower energy bills in continuous operation.Feature → Business Impact → Application: IP55 enclosure provides reliable protection from dust and moisture, reducing unscheduled downtime in wash-down and outdoor installations. Application: Food & beverage, chemical processing, and mining environments requiring rugged ingress protection.Feature → Business Impact → Application: IC insulation class (ICLF) supports higher temperature margins, enabling operation at elevated ambient temps and at altitude up to 1000 m. Application: Powertrain and process lines in facilities with limited cooling capacity.Feature → Business Impact → Application: 355 frame, welded steel construction with a robust bearing package (6322/C3 / 6316/C3) and IMB3 IM1001 mounting class delivers predictable alignment and long service life. Application: OEM integrations and retrofit projects across packaging, material handling, and water-intensive processes.Feature → Business Impact → Application: 6-pole, 3-phase configuration delivers reliable 6000+ rpm performance with consistent torque characteristics. Application: General-purpose continuous duty (S1) drives in heavy machinery and packaging lines.Feature → Business Impact → Application: Compatibility with standard ABB control architectures and top access terminator box simplifies installation. Application: Plant-wide modernization projects aiming to minimize retrofit risk and downtime.
