4TBO856023C0100
Part Number: 4TBO856023C0100
Product Information
Extended Description

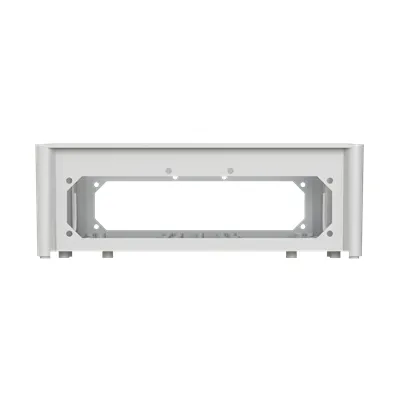

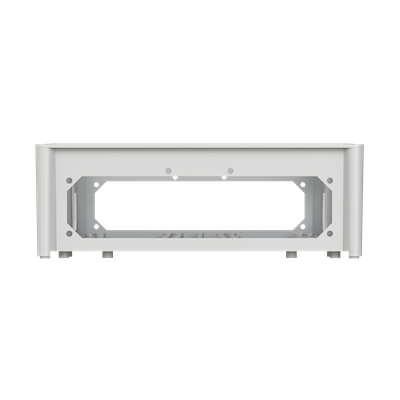

4TBO856023C0100 ABB: APO iso-distributors. AU114 Lower part 600x370x130 4xopen APO RAL7035 Housing lower part with 4 open sides
Number of Flange Openings
4
Number of Conduit Inlets
0
Cover Plate Type
Optional
Enclosure Type NEMA
Type12
Mounting Type
Surface mounted
Door Type
Without Door
Surface Finishing
Untreated
Housing Material
Plastic
Accessories Available
No
RAL Number
RAL 7035 - Light Grey
Color
Grey
REACH Declaration
REACH Declaration ABB Industrial Solutions BVBA Gent Belgium
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Business
Degree of Protection
IP67
Protection Class
Isolated (Class II)
Product Net Width
372 mm
Product Net Height
131 mm
Product Net Depth / Length
603 mm
Product Net Weight
2.3 kg
Built-In Depth (t2)
140 mm
Thickness
Cabinet Plate 3.5 mm | Door Plate 3 mm
Package Level 1 Units
box 2 piece
Package Level 1 Gross Weight
4.7 kg
Data Sheet, Technical Information
Multi-Function Housing
ETIM 8
EC000058 - Empty cabinet
ETIM 9
EC000058 - Empty cabinet
eClass
V11.0 : 27142408
