4TBR610185C0200
Part Number: 4TBR610185C0200
Product Information
Extended Description

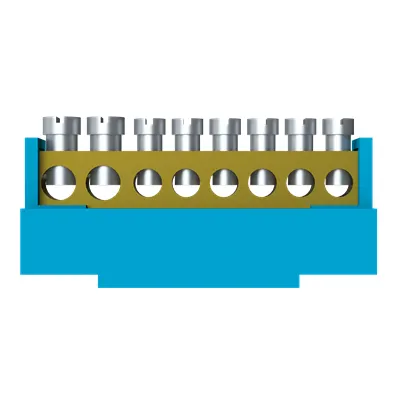

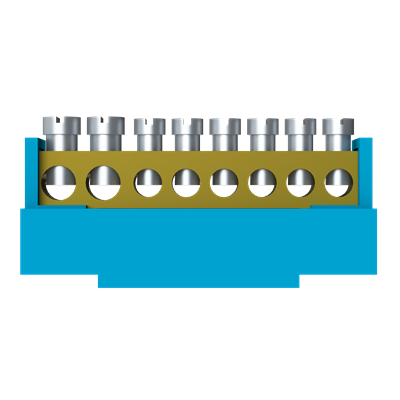

4TBR610185C0200 ABB: PHASE CONNECTION TERMINALS 6X10MM 2X16MM;PHASE CONNECTION TERMINALS 6X10MM 2X16MM
Number of Poles
8P
Number of Connections
Number of connections < 6 mm2: 0 | Number of connections > 25 mm2: 0 | Number of connections 10 mm2: 6 | Number of connections 16 mm2: 2 | Number of connections 25 mm2: 0 | Number of connections total: 8
Accessory Type
terminals
Connection Type
Screw
Mounting Type
Screw mounting
Terminal Connection Type
Phase-Terminal
Material
Brass
Accessories Available
No
Color
Black
Terminal Type
Terminal Bar
RoHS Information
FOR_Standaard_GE_CE_GEN-CE19-523_C11
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20191029
REACH Declaration
REACH Declaration ABB Industrial Solutions BVBA Gent Belgium
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Product Net Width
60 mm
Product Net Height
30 mm
Product Net Depth / Length
20 mm
Product Net Weight
0.1 kg
Package Level 1 Units
box 4 piece
Package Level 1 Gross Weight
0.2 kg
Declaration of Conformity - CE
FOR_Standaard_GE_CE_GEN-CE19-523_C11
ETIM 8
EC000275 - Rail terminal bar
ETIM 9
EC000275 - Main line branch terminal
eClass
V11.0 : 27400603
