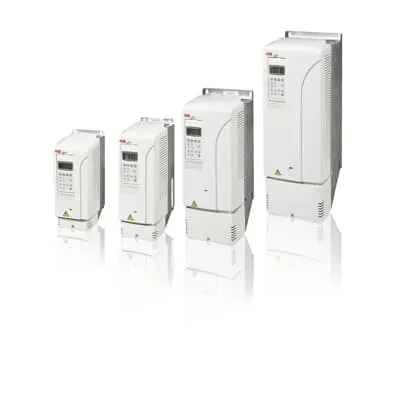

ABB 64669931 ACS800-01-0120-5 - Pcont.max:90kW, Icont.max:157A
Part Number: 64669931
Quick Summary
ABB ACS800-01-0120-5 drives provide precise motor control for industrial automation and process applications. Engineers often face startup shocks, energy waste, and integration gaps when upgrading aging drives, which can drive up maintenance costs and downtime. This solution typically complies with CE marking for safety and EMC, and can be deployed in IP-protected enclosures with SIL-related safety integration in protective systems where required. It integrates with ABB control architectures, offering scalable performance, reliable protection, and the potential for energy savings across machines. Expect improved lifecycle value through configurable safety, diagnostics, and seamless fieldbus compatibility that supports longer equipment life and reduced total cost of ownership.
Product Information
Feature: High power handling with compact integration. Benefit: Delivers robust performance for medium- to high-power motors while reducing footprint and wiring complexity, lowering installation costs. Application: Pumps, fans, and conveyors in compact automation cells. Feature: Soft-start and precise torque control. Benefit: Minimizes mechanical stress and electrical transients, extending motor life and decreasing maintenance intervals. Application: Industrial fans and pump trains with variable load. Feature: Fieldbus compatibility and plug-and-play installation. Benefit: Speeds up commissioning and reduces engineering time, enabling faster project ROI. Application: Retrofit and new-line automation across packaging lines and process plants. Feature: Safety-conscious design and CE-compliant architecture. Benefit: Supports compliant integration with plant safety systems, reducing risk and accelerating approvals. Application: Production lines requiring formal safety documentation. Feature: Reliability and diagnostics for lifecycle cost reduction. Benefit: Predictive insights and reduced downtime through built-in monitoring; lowers long-term service costs. Application: Continuous operation in harsh environments with minimal intervention.
Get a Quick Quote for a ABB 64669931
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 64669931?
Enquire Now
FAQs
To install, verify motor rating does not exceed Pcont.max 90 kW and Icont.max 157 A, connect the drive to a suitable 3-phase supply, and configure motor type and protection parameters in the drive’s setup menu. Use proper shielding, earth grounding, and fieldbus if remote monitoring is required. Perform a static check, followed by a soft-start run, monitoring current and voltage for safe operation.
The ACS800-01-0120-5 model supports a continuous maximum load of 90 kW (Pcont.max) and a continuous output current of up to 157 A (Icont.max). Take care to match these limits to the motor’s full-load current and consider jump-start or soft-start needs to protect cables, fuses, and upstream breakers.
Yes. The drive’s variable-speed control enables energy-efficient operation for centrifugal pumps and fans by adjusting speed to process demand, reducing fan/pump torque, and lowering energy consumption. It’s well-suited for HVAC retrofits and new installations where precise speed control and soft-start reduce wear and noise while improving system efficiency.
Verify CE marking for safety and EMC compliance, ensure an appropriate IP-rated enclosure for your environment, and consider SIL-capable configurations if integrated safety protocols are required. ANSI/UL or other local safety standards may apply depending on your region and application; confirm with your supplier and system integrator before installation.
Expect lower maintenance due to reduced mechanical wear from soft-start control and improved motor protection. Energy savings from variable-speed operation can shorten payback periods, while diagnostic features help predict failures before they cause downtime. A robust service network supports uptime and ongoing optimization across production lines.
