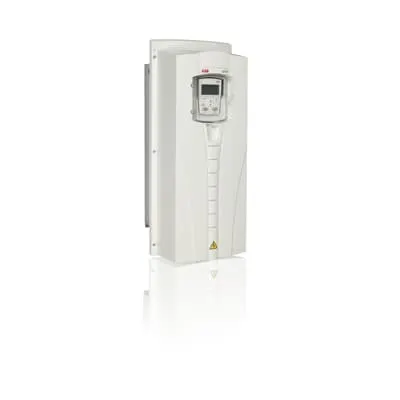

ABB 68261716 Motors & Drives - IP21
Part Number: 68261716
Quick Summary
ABB ACH550 drive controls AC motors in industrial automation and HVAC applications. This compact variable frequency drive helps optimize motor performance while reducing energy use. Users often struggle with motor wear, unexpected starts, and complex commissioning; the ACH550 simplifies parameter setup and provides built-in motor protection. It carries IP21 protection and aligns with CE-compliant European standards for safe operation. For OEMs and service teams, it enables faster installation, predictable performance, and reduced total cost of ownership through straightforward configuration and reliable protection features.
Product Information
Feature: 45 kW power rating enables robust control of mid-to-high power motors. Business impact: Supports efficient operation of pumps, fans, conveyors, and machine tools, delivering consistent torque with reduced energy waste. Application: HVAC fans, water pumps, and process conveyors benefit from precise speed control and smoother operation. Feature: I2n 96 A overload current enhances motor protection against short-term overloads and stall conditions. Business impact: Extends motor life, lowers maintenance costs, and minimizes unplanned downtime. Application: Heavy-duty conveyors and industrial pumps subject to load spikes benefit from proactive protection. Feature: IP21 enclosure rating suitable for indoor panel mounting. Business impact: Simplifies installation within standard electrical cabinets, reducing enclosure needs and integration time. Application: Indoor plant equipment, control panels, and small to mid-size automation loops gain reliability. Feature: Predefined motor profiles and straightforward commissioning streamline setup. Business impact: Reduces engineering resources, speeds up project timelines, and lowers total cost of ownership. Application: OEMs integrating ABB drives into packaging lines, material handling, and process equipment see faster time to first run. Feature: Compatibility with ABB ecosystem and standard drive architectures supports scalable, future-proof installations. Business impact: Facilitates remote monitoring, diagnostics, and seamless upgrades in growing automation environments. Application: Facilities and manufacturing plants aiming to consolidate drives under a common control strategy will appreciate easier maintenance and upgrade paths.
Get a Quick Quote for a ABB 68261716
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 68261716?
Enquire Now
FAQs
The ACH550 family is designed for indoor panel mounting with three-phase motor connections up to 45 kW. It supports standard wiring practices, nut-and-bolt terminal blocks, and parameter presets that minimize field programming. Users typically benefit from reduced commissioning time and fewer wiring errors due to guided setup and built-in motor protection features.
For model ACH550-01-096A-4, the drive delivers 45 kW of output power with an I2n overload current of 96 A and an IP21 enclosure rating. This combination supports reliable control of medium-sized motors in indoor environments, enabling precise speed regulation for pumps, fans, and conveyors.
Yes. The 68261716 ACH550 variant is well-suited for HVAC fans and pumps as well as general motor control in industrial settings. Its 45 kW rating and IP21 protection provide a balance of performance and protection, while configurable motor profiles help tailor speed and torque to specific HVAC loads and energy-saving targets.
IP21 indicates protection against solid objects larger than 12 mm and against vertical water droplets, making it appropriate for indoor panel installations. Ensure adequate ventilation, keep the drive away from direct moisture sources, and mount within standard control cabinets to maximize cooling and accessibility for maintenance.
The ACH550 provides built-in motor protection, soft-start capability, and predefined profiles that reduce wear and tear on driven equipment. These features contribute to lower maintenance costs, reduced downtime, and a favorable total cost of ownership, especially in continuous-up-time processes like pumping and conveying lines.
