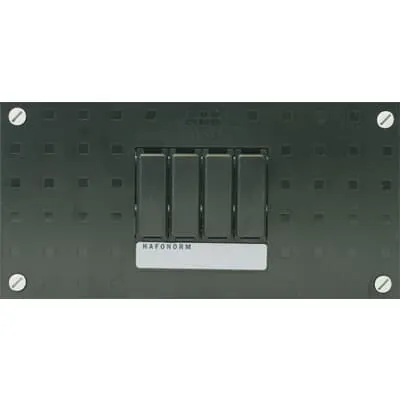

ABB 6929.500 Consumer Unit - IP20, Surface Mount
Part Number: 6929.500
Quick Summary
ABB 6929.500 Consumer Unit is a surface-mounted small distribution board designed for compact control cabinets. In tight spaces, installers need a reliable enclosure that accelerates installation while minimizing changes to existing layouts. Certified with CE conformity, REACH compliance, and an IP20 rating, it delivers safe, standard-compliant protection for domestic and light-industrial use. By combining a lightweight plastic housing with a ready-to-mount 4-module footprint, this unit reduces installation time and total cost of ownership. Its Hafonorm compatibility and support for additional mounting options help systems integrators optimize panel design while keeping inventories lean. This makes it a practical choice for machine builders requiring predictable, compliant enclosures.
Product Information
Extended Description
6929.500 ABB: Small distribution board Hafonorm Empty CU, slot width 70mm
Environmental Product Declaration - EPD
EPD_unequipped installation cabinets with little to no metal
Number of Flange Openings
4
Number of Conduit Inlets
0
Number of Rows
1
Cover Plate Type
Cover
Mounting Type
Surface mounting
Surface Finishing
Untreated
Enclosure Material
Synthetic
Housing Material
Plastic
Options Provided
Din-rail, External mounting possible, Cover with slots, Surface mounting
Cover Style
Closed
RAL Number
RAL 9017 - Traffic Black
Color
Black
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP20
Protection Class
Grounded (Class I)
Environmental Information
Declaration regarding the REACH - Regulation
Width in Number of Modular Spacings
4
Product Net Width
120.000 mm
Product Net Height
140.000 mm
Product Net Depth / Length
230.000 mm
Product Net Weight
0.334 kg
Built-In Depth (t2)
45 mm
Package Level 1 Units
bag 1 piece
Package Level 1 Gross Weight
0.394 kg
Declaration of Conformity - CE
CE Declaration of Conformity HAFONORM distribution boards (domestic use)
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142408
Object Classification Code
Not applicable
Feature → Business Impact → Application: Surface mounting with a 4-module, 1-row footprint minimizes panel depth while delivering straightforward installation for compact control panels in machine centers and packaging lines. This configuration reduces enclosure footprint and enables faster wiring and commissioning, translating into lower labor costs and shorter project timelines. Feature → Business Impact → Application: Lightweight synthetic enclosure (black, RAL 9017) reduces handling effort and shipping costs, improving on-site logistics for field service and panel assembly. Feature → Business Impact → Application: IP20 protection and Class I grounding offer safe operation in domestic and light-industrial environments, ensuring regulatory compliance while supporting straightforward service and maintenance routines. Feature → Business Impact → Application: Cover with slots and DIN-rail/external mounting options provide installation flexibility, enabling retrofit or expansion in existing Hafonorm layouts without reengineering cabinets. Feature → Business Impact → Application: 140 mm W x 120 mm H x 230 mm D dimensions with built-in 45 mm depth and 0.334 kg weight enable tight fit in shallow enclosures, reducing the need for custom housings in small control cabinets. Feature → Business Impact → Application: Environmental and material compliance (REACH, CE) supports supply chain sustainability goals and risk management for regulated industries, reassuring procurement teams during supplier audits.
Get a Quick Quote for a ABB 6929.500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 6929.500?
Enquire Now
FAQs
Begin by selecting a suitable surface-mount location within the Hafonorm framework. Align the 4 flange openings to the panel surface and secure the unit with the provided fasteners. If external mounting is required, use the compatibility options and ensure the cover with slots is seated properly. Finally, connect wiring within the 4-module space and verify IP20 protection and grounding continuity for safe operation.
Key specs include IP20 environmental protection, 4 modules in a single row, surface mounting, and a 140 mm width by 120 mm height by 230 mm depth housing. The unit uses a plastic housing with a closed cover, weighs 0.334 kg, and has a built-in depth of 45 mm. It is CE-marked and REACH-compliant, with no conduit inlets and 4 flange openings for mounting.
Yes. The 6929.500 is designed as a Hafonorm empty consumer unit, supporting surface mounting with compatible options for DIN-rail or external mounting. Its compact footprint and 4-module capacity make it suitable for small control cabinets and distribution blocks within Hafonorm configurations, while maintaining easy access for maintenance.
The unit carries CE conformity and a REACH declaration, indicating regulatory compliance for European markets. It is classified under WEEE as not in scope, and ETIM/eClass references align it with industry standards for small distribution boards. These certifications support supply chain transparency and auditable product compliance during procurement.
The unit’s lightweight plastic housing and compact footprint reduce shipping, handling, and installation time. Its surface-mount design and flexible mounting options lower assembly labor and inventory complexity. CE and REACH compliance minimize regulatory risk, while a dependable IP20-rated enclosure helps reduce maintenance costs by providing durable, standards-aligned protection for light-industrial applications.
