6929.505
Part Number: 6929.505
Product Information
Extended Description

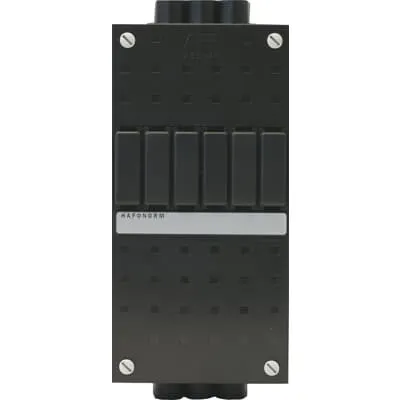

6929.505 ABB: Small distribution board Hafonorm Empty CU, slot width 70mm
Environmental Product Declaration - EPD
EPD_unequipped installation cabinets with little to no metal
Number of Flange Openings
6
Number of Conduit Inlets
0
Number of Rows
1
Cover Plate Type
Cover
Mounting Type
Surface mounting
Surface Finishing
Untreated
Enclosure Material
Synthetic
Housing Material
Plastic
Options Provided
Din-rail, External mounting possible, Cover with slots, Surface mounting
Cover Style
with Notch
RAL Number
RAL 9017 - Traffic Black
Color
Black
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP20
Protection Class
Grounded (Class I)
Environmental Information
Declaration regarding the REACH - Regulation
Width in Number of Modular Spacings
6
Product Net Width
120.000 mm
Product Net Height
140.000 mm
Product Net Depth / Length
230.000 mm
Product Net Weight
0.334 kg
Built-In Depth (t2)
45 mm
Package Level 1 Units
bag 1 piece
Package Level 1 Gross Weight
0.394 kg
Declaration of Conformity - CE
CE Declaration of Conformity HAFONORM distribution boards (domestic use)
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142408
Object Classification Code
Not applicable
