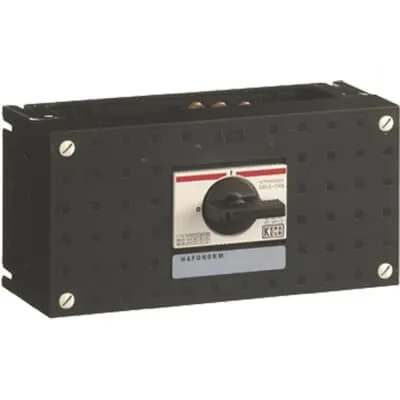

ABB 6962.160 Switchboard - IP20 Enclosure
Part Number: 6962.160
Quick Summary
ABB 6962.160 Switchboard is a consumer unit for externally mounted protection in control panels. It addresses space constraints and wiring complexity by offering a compact, modular enclosure that simplifies installation and upgrades. CE certified, RoHS compliant, and REACH declared, with IP20 protection, it supports safe operation in industrial environments. Designed for fast DIN rail mounting and compatibility with Hafonorm main switches, it reduces downtime during panel changes. For engineers handling critical loads, this unit enables quick maintenance with clear labeling and standard dimensions. Procurement teams benefit from consistent stock, transparent datasheets, and reduced variance across sites. Its compact footprint and lightweight design also reduce shipping and on-site handling costs.
Product Information
Extended Description
6962.160 ABB: Distributor assembly with main switch Hafonorm Main Switch 4-p 40A Switch box
Rated Current (In)
40 A
Model Number
With cover
Number of Poles
4P
Number of Switches
1
Mounting Type
Externally Mountable
Product Type
Switchboard
Enclosure Material
Synthetic
Housing Material
Plastic
Mounting on DIN Rail
Universal
Number of Batteries
0
RoHS Information
EU Declaration of Conformity / switch boxes HAFONORM
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20160420
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP20
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
120.000 mm
Product Net Height
140.000 mm
Product Net Depth / Length
230.000 mm
Product Net Weight
0.748 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
10.544 kg
Declaration of Conformity - CE
EU Declaration of Conformity / switch boxes HAFONORM
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002280 - Distributor assembly with main switch
ETIM 9
EC002280 - Distributor assembly with main switch
eClass
V11.0 : 27400625
Object Classification Code
Not applicable
Externally mountable housing with universal DIN rail compatibility enables straightforward integration into existing control panels. This reduces installation time and minimizes wiring errors, delivering faster commissioning and lower labor costs. Applications include Hafonorm distributor assemblies and switchboards in industrial automation environments. The 4P 40 A main switch provides robust control in distributed control systems, delivering reliable power switching while maintaining a compact footprint ideal for dense control panels. Benefits include reduced panel depth requirements and improved heat management, supporting safer operation and easier serviceability. The IP20 enclosure, synthetic enclosure material, and plastic housing offer practical protection for indoor installations, helping keep dust and incidental contact at bay in moderate environments. Dimensions of 120 mm width, 140 mm height, and 230 mm depth support space-constrained layouts while the 0.748 kg weight simplifies handling. RoHS, REACH, and CE declarations streamline compliance across regulated markets, while WEEE and CMRT data support responsible end-of-life and supplier transparency. The unit is DIN-rail ready with universal mounting, accelerating retrofits and upgrades in existing installations. APIM0709-123NL/120824 provides installation guidance to reduce commissioning time, ensuring reliable operation from first power-on.
Get a Quick Quote for a ABB 6962.160
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 6962.160?
Enquire Now
FAQs
Yes. The ABB 6962.160 Switchboard is designed for universal DIN rail mounting and is compatible with Hafonorm main switches (4-p, 40 A). This enables rapid integration into existing control panels, minimizes wiring changes, and supports straightforward retrofits. For installers, consult the manual APIM0709-123NL/120824 for mounting steps and wiring diagrams to ensure compliant, efficient installations.
Key specifications include a rated current of 40 A, 4 poles (4P), and a single main switch. The enclosure provides IP20 protection, with a synthetic enclosure and plastic housing suitable for indoor environments. Dimensions are 120 mm wide, 140 mm high, and 230 mm deep, and the unit weighs 0.748 kg. These specs support reliable control of moderate loads in compact consumer unit and switchboard applications.
The 6962.160 is ideal for industrial automation environments requiring a compact distributor assembly with a main switch. Typical use cases include Hafonorm distributor setups in control panels, electrical rooms, and retrofit projects where DIN rail mounting is advantageous. Its IP20 rating and robust 4P 40A switching capacity make it suitable for indoor, non-harsh environments where reliable power distribution is essential.
This product includes a CE declaration of conformity and RoHS compliance, along with a REACH declaration. It is aligned with WEEE categorization (category 5) and CMRT documentation for conflict minerals reporting. ETIM and eClass mappings provide consistent classification, while the product data sheet and manuals offer structured guidance for compliant installation and lifecycle management.
The ABB 6962.160 supports faster maintenance and reduced downtime through standardized, clearly documented specifications and a universal mounting approach. Its compact size and lightweight design lower shipping and labor costs, while CE RoHS and REACH compliance minimize regulatory risk. For long-term value, the unit’s predictable compatibility with Hafonorm switches simplifies stocking, procurement, and service planning across multiple sites.
