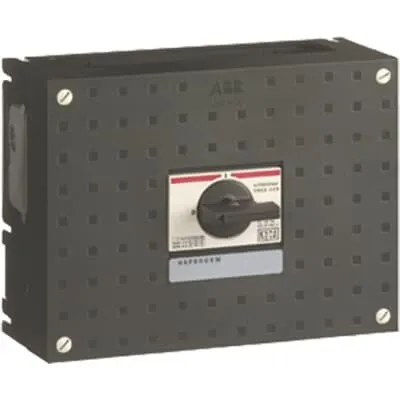

ABB 6962.170 Distributor Assembly - IP20 Switchbox
Part Number: 6962.180
Quick Summary
ABB 6962.170 Distributor Assembly is a compact externally mounted switchboard designed for control panels. Engineers often face space constraints, wiring complexity, and the need to meet regulatory requirements in modern cabinets. This unit delivers CE conformity, RoHS compliance, and IP20 protection, strengthening safety and sustainability across installations. With Hafonorm main switch and two terminal blocks, it simplifies distribution while maintaining a tidy, maintainable layout. The modular design supports quick installation and future expansion, reducing downtime during upgrades and easing procurement with a standards-based enclosure. Ideal for interior cabinet installations in automation, machinery, and process control environments where reliable power distribution and clear labeling matter.
Product Information
Extended Description
6962.180 ABB: Distributor assembly with main switch Hafonorm Main Switch 4-p 63A Switch box
Rated Current (In)
63 A
Model Number
With cover
Number of Poles
4P
Number of Switches
1
Mounting Type
Externally Mountable
Product Type
Switchboard
Enclosure Material
Synthetic
Housing Material
Plastic
Mounting on DIN Rail
Universal
Number of Batteries
0
RoHS Information
EU Declaration of Conformity / switch boxes HAFONORM
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20160420
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP20
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
175.000 mm
Product Net Height
145.000 mm
Product Net Depth / Length
230.000 mm
Product Net Weight
0.915 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
1.011 kg
Declaration of Conformity - CE
EU Declaration of Conformity / switch boxes HAFONORM
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002280 - Distributor assembly with main switch
ETIM 9
EC002280 - Distributor assembly with main switch
eClass
V11.0 : 27400625
Object Classification Code
Not applicable
Feature → Business Impact → Application: The 4P 40A Hafonorm main switch inside a four-pole distributor assembly enables centralized control and clear load distribution, reducing wiring complexity and potential fault paths in control cabinets. This supports faster commissioning and safer operation in automated lines and packaging facilities. Feature → Business Impact → Application: Externally mountable IP20 enclosure with a synthetic enclosure and plastic housing provides robust indoor protection while enabling straightforward installation in cabinet interiors and on factory floors where cleanliness and accessibility are essential. Feature → Business Impact → Application: Universal DIN rail mounting delivers broad compatibility with standard panels, lowering retrofit costs and speeding panel upgrades across existing machinery fleets. Feature → Business Impact → Application: Two terminal blocks and a single switch simplify wiring, reduce terminal density, and shorten installation time for compact control boxes in automotive and process automation. Feature → Business Impact → Application: RoHS and REACH declarations, plus WEEE classification, minimize regulatory risk and support sustainable end-of-life handling in industrial environments. Feature → Business Impact → Application: Compact dimensions (140 mm height, 120 mm width, 230 mm depth) and weight of 0.916 kg optimize space in crowded switchgear cabinets and enable easier handling during installation and upgrades.
Get a Quick Quote for a ABB 6962.180
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 6962.180?
Enquire Now
FAQs
Yes. The ABB 6962.170 is designed for universal DIN rail mounting and integrates with Hafonorm main switches. Its externally mountable enclosure supports straightforward panel integration, while the 4P 40A rating provides robust distribution for multi-load control. This combination reduces retrofit effort and simplifies cabinet wiring for existing automation lines.
The unit features a rated current of 40 A, four poles (4P), and a single switch. It is housed in a synthetic enclosure with a plastic housing, IP20 protection, and dimensions of 140 × 120 × 230 mm. It also includes two terminal blocks for efficient wiring and a weight of about 0.916 kg.
Yes. The IP20-rated, externally mountable switchbox is intended for indoor cabinet installations in manufacturing, automation, and machinery applications. Its compact footprint, DIN-rail compatibility, and modular Hafonorm component integration make it ideal for streamlined control panel designs and easy future upgrades.
The unit carries CE conformity and RoHS compliance, along with REACH declarations and WEEE categorization. These certifications support regulatory alignment for European markets, environmental responsibility, and safe end-of-life handling, reducing risk during audits and procurement evaluations.
By combining a compact, readily installable enclosure with a universal DIN rail mount and a modular Hafonorm main switch, maintenance and upgrades are quicker and less error-prone. The RoHS/REACH compliance and clear labeling simplify regulatory checks, while the small footprint lowers space requirements and potential cabinet redesign costs.
