6962.185
Part Number: 6962.185
Product Information
Extended Description

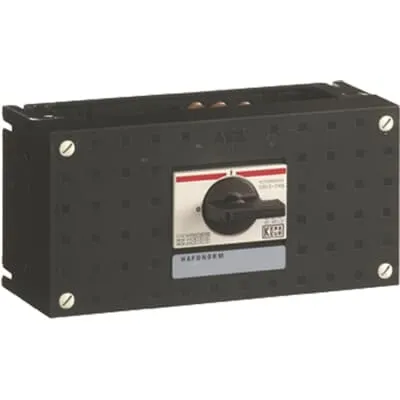

6962.185 ABB: Distributor assembly with main switch Hafonorm Main Switch 4-p 63A Switch box
Rated Current (In)
63 A
Model Number
With cover
Number of Poles
4P
Number of Switches
1
Mounting Type
Externally Mountable
Product Type
Switchboard
Enclosure Material
Synthetic
Housing Material
Plastic
Mounting on DIN Rail
Universal
Number of Batteries
0
RoHS Information
EU Declaration of Conformity / switch boxes HAFONORM
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20160420
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP20
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
120.000 mm
Product Net Height
140.000 mm
Product Net Depth / Length
230.000 mm
Product Net Weight
0.787 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
10.544 kg
Declaration of Conformity - CE
EU Declaration of Conformity / switch boxes HAFONORM
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002280 - Distributor assembly with main switch
ETIM 9
EC002280 - Distributor assembly with main switch
eClass
V11.0 : 27400625
Object Classification Code
Not applicable
