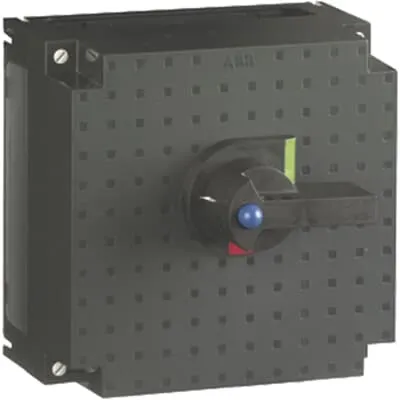

ABB 6962.220 Switchboard - Externally Mountable IP20 160A
Part Number: 6962.220
Quick Summary
ABB 6962.220 Switchboard is a consumer unit designed for external mounting in commercial electrical installations. Engineers often struggle with compatibility and regulatory compliance when sourcing subpanels for compact control rooms. It delivers IP20 protection, CE conformity, and RoHS/REACH declarations to streamline approvals and reduce risk. By integrating Hafonorm main switch technology and DIN-rail compatibility, it enables faster installation, safer operation, and simpler procurement for panel builders and electrical contractors. The rugged 230×300×390 mm footprint, lightweight design, and synthetic enclosure fit constrained spaces while keeping serviceability high and total cost of ownership low. With ABB quality backing and clear environmental declarations, customers can plan installations with confidence across projects.
Product Information
Extended Description
6962.220 ABB: Distributor assembly with main switch Hafonorm Main Switch 4-p 160A Switch box
Rated Current (In)
160 A
Model Number
With cover
Number of Poles
4P
Number of Switches
1
Mounting Type
Externally Mountable
Product Type
Switchboard
Enclosure Material
Synthetic
Housing Material
Plastic
Mounting on DIN Rail
Universal
Number of Batteries
0
RoHS Information
EU Declaration of Conformity / fuse boxes HAFONORM
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20160420
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP20
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
300.000 mm
Product Net Height
230.000 mm
Product Net Depth / Length
390.000 mm
Product Net Weight
2.28 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
2.688 kg
Declaration of Conformity - CE
EU Declaration of Conformity / fuse boxes HAFONORM
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002280 - Distributor assembly with main switch
ETIM 9
EC002280 - Distributor assembly with main switch
eClass
V11.0 : 27400625
Object Classification Code
Not applicable
Externally mountable enclosure with IP20 rating supports quick integration into existing panel spaces where internal mounting is not feasible. This reduces installation time and minimizes invasive work for retrofit projects. The Hafonorm main switch, a 4-pole 160A configuration, is integrated into a single distributor assembly, streamlining power distribution and lowering parts count, which translates to lower material costs and faster commissioning. A single 4P switch provides clear, centralized control for multi-phase circuits, improving reliability and simplifying maintenance cycles in industrial panels. Universal DIN rail mounting adds installation flexibility across a wide range of control panels, enabling reuse of standard mounting rails and faster on-site setup. RoHS and REACH declarations, plus WEEE categorization, reduce regulatory risk and support sustainable procurement practices. The compact 230×300×390 mm footprint and 2.28 kg weight simplify logistics, freight, and handling while preserving serviceability during field updates.
Get a Quick Quote for a ABB 6962.220
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 6962.220?
Enquire Now
FAQs
The ABB 6962.220 Switchboard is designed for external mounting in commercial electrical installations. It supports 4P operation with a 160A rating and incorporates Hafonorm main switch technology, making it suitable for distributor assemblies in control panels and retrofit projects where space is at a premium.
This unit features an externally mountable enclosure with universal DIN rail mounting. The design allows easy integration into existing panels and fast commissioning, using standard DIN rails and a single main switch for centralized control.
The product carries CE conformity, RoHS compliance under EU Directive 2011/65/EU, and REACH declarations. It is categorized under WEEE as a small equipment item, aligning with regulatory expectations for safe disposal and environmental responsibility.
Yes. The switchboard is designed with universal DIN rail mounting, enabling straightforward installation alongside other standard control devices and simplifying future expansions or rework within existing panels.
Key benefits include reduced parts count thanks to the integrated Hafonorm main switch, faster installation through external mounting and DIN rail compatibility, and regulatory peace of mind from RoHS/REACH and CE declarations. The compact footprint and lightweight design also improve logistics and on-site handling for panel builders and electrical contractors.
