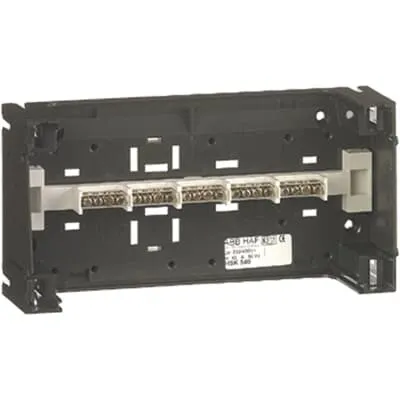

ABB 6963.110 Terminal board - Surface mounting, IP20
Part Number: 6963.110
Quick Summary
ABB 6963.110 Terminal board is a surface-mounted consumer unit that simplifies compact control-panel wiring for industrial automation environments. Engineers often face cramped spaces, dense terminal layouts, and the challenge of delivering reliable protection in indoor enclosures without sacrificing accessibility. It carries a CE Declaration of Conformity and REACH compliance, and features IP20 protection to meet indoor safety and regulatory requirements. Rated at 400 V and 40 A with capacity for up to 20 terminals, it supports Hafonorm configurations for scalable, cost-efficient panel builds. By standardizing on a robust, untreated plastic enclosure, installers reduce commissioning time, improve traceability, and lower field maintenance costs. This makes it a practical choice for panel builders seeking dependable performance in harsh industrial environments.
Product Information
Extended Description
6963.110 ABB: Terminal box Hafonorm 40A, 5 x terminal block (3x10+1x16mm) Terminal box
Environmental Product Declaration - EPD
EPD_unequipped clamping cabinets
Rated Insulation Voltage (Ui)
400 V
Rated Current (In)
40 A
Number of Terminals (Nterm)
20
Cover Mounting Type
Screw
Mounting Type
Surface mounting
Product Type
Terminal board
Surface Finishing
Untreated
Enclosure Material
Synthetic
Material
Plastic
Color
Black
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP20
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
120.000 mm
Product Net Height
140.000 mm
Product Net Depth / Length
230.000 mm
Product Net Weight
0.41 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
6.284 kg
Declaration of Conformity - CE
CE Declaration of Conformity HAFONORM distribution boards (domestic use)
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002713 - Terminal box
ETIM 9
EC002713 - Terminal box
eClass
V11.0 : 27144403
Object Classification Code
Not applicable
Feature: Surface mounting minimizes enclosure footprint and simplifies routing of conductors. Business Impact: Reduces panel footprint, speeds up wiring, and lowers field labor costs. Application: Ideal for compact control panels in automated assembly lines and compact machine housings. Feature: IP20 enclosure rating and synthetic, untreated plastic body. Business Impact: Delivers indoor protection while keeping weight and materials cost low. Application: Suited for indoor installations in manufacturing facilities where protection from incidental contact is required. Feature: 40 A rating with 20 terminals. Business Impact: Supports multiple circuits from a single box, reducing the need for spare components and simplifying documentation. Application: Fits Hafonorm 40 A configurations and similar terminal block layouts in panel assemblies. Feature: 140 mm x 120 mm x 230 mm footprint with 0.41 kg weight. Business Impact: Clear space planning benefits and easier handling during installation. Application: Compatible with tight panel spaces in OEM machines. Feature: Environment and compliance focus with REACH, CMRT, and CE declarations. Business Impact: Maintains regulatory alignment and reduces compliance risk for assembly houses. Application: Ideal for vendors aiming to meet industry standards while keeping procurement straightforward. Feature: Terminal box designed for Hafonorm systems, with screw cover mounting and surface mounting type. Business Impact: Simplifies maintenance access and reduces downtime during terminal block servicing. Application: Well-suited for serviceable control cabinets in production lines.
Get a Quick Quote for a ABB 6963.110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 6963.110?
Enquire Now
FAQs
Yes. The 6963.110 is designed for Hafonorm 40 A configurations and utilizes a surface mounting approach with a screw-mounted cover, making it suitable for compact control panels in Hafonorm-based installations and similar enclosures. Its dimensions (120 mm width, 140 mm height, 230 mm depth) fit within typical Hafonorm footprints, enabling straightforward integration with existing terminal blocks and harness layouts.
The terminal board is rated for 400 V insulation voltage and 40 A current, supporting up to 20 terminals. This combination enables multiple circuits to be terminated in a single unit, reducing the need for additional boxes and simplifying documentation for panel builders and maintenance teams.
Industries with compact control panels and high wiring density, such as packaging, material handling, and machine automation, benefit most. The 6963.110’s Hafonorm compatibility, IP20 protection, and lightweight plastic enclosure make it ideal for indoor automation cabinets where space is limited and reliable termination is required.
The terminal board carries a CE Declaration of Conformity and REACH compliance, with an IP20 enclosure rating. It also references WEEE status as not in scope and aligns with environmental declarations, including the EPD for unequipped clamping cabinets, helping buyers meet regulatory and sustainability requirements.
The surface-mount design, screw cover mounting, and lightweight construction streamline installation and reduce labor time. With up to 20 terminals and high-density wiring, field maintenance is faster, fewer spare parts are required, and commissioning cycles are shortened, delivering a lower total cost of ownership for panel builds and service operations.
