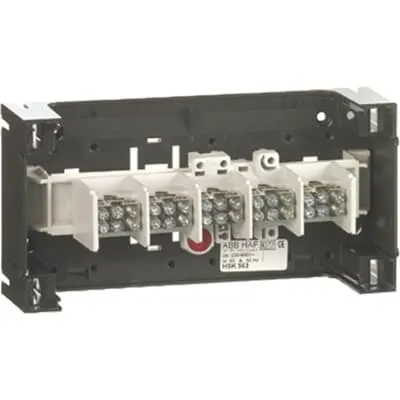

ABB 6963.120 Terminal Box - IP20, 63A, 15 Terminals
Part Number: 6963.120
Quick Summary
ABB 6963.120 Terminal Box is a surface-mounted consumer unit designed for compact control panels. Engineers often wrestle with cramped enclosures, tangled wiring, and long install times; this unit simplifies mounting and organization. CE conformity, IP20 protection, and a 63 A rating ensure safe, compliant assemblies in industrial environments. The design aligns with Hafonorm systems and supports scalable terminal block configurations, delivering value for panel builders and maintenance teams. With the included 5 x terminal blocks (2x16 + 1x25 mm) and surface mounting, installation is faster and less error-prone. It carries a CE Declaration of Conformity and supports REACH compliance, reinforcing your supply chain's regulatory readiness.
Product Information
Extended Description
6963.120 ABB: Terminal box Hafonorm 63A, 5 x terminal block (2x16 + 1x25mm) Terminal box
Environmental Product Declaration - EPD
EPD_unequipped clamping cabinets
Rated Insulation Voltage (Ui)
400 V
Rated Current (In)
63 A
Number of Terminals (Nterm)
15
Cover Mounting Type
Screw
Mounting Type
Surface mounting
Product Type
Terminal board
Surface Finishing
Untreated
Enclosure Material
Synthetic
Material
Plastic
Color
Black
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP20
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
120.000 mm
Product Net Height
140.000 mm
Product Net Depth / Length
230.000 mm
Product Net Weight
0.662 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.733 kg
Declaration of Conformity - CE
CE Declaration of Conformity HAFONORM distribution boards (domestic use)
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002713 - Terminal box
ETIM 9
EC002713 - Terminal box
eClass
V11.0 : 27144403
Object Classification Code
Not applicable
Feature: Surface mounting and a compact footprint enable flexible placement within crowded switchgear. Business Impact: Faster installation, easier back-panel access, and reduced wiring crossover risks. Application: Ideal for small control cabinets and Hafonorm-based enclosures where space is at a premium. Feature: IP20-rated enclosure crafted from synthetic plastic provides economical indoor protection. Business Impact: Lightweight, cost-effective solutions that simplify inventory and reduce shipping burdens. Application: Indoor industrial environments and surface-mounted consumer units in machine rooms where basic ingress protection is sufficient. Feature: 63 A rating with 15 terminals across 5 terminal blocks (2x16 + 1x25) streamlines wiring and terminal access. Business Impact: Clear wiring paths, faster terminations, and lower risk of misconnection in busy panels. Application: Power distribution within Hafonorm-based units and other compact control enclosures. Feature: CE Declaration of Conformity, REACH compliance, and WEEE status communicate regulatory readiness. Business Impact: Reduces supplier regulatory risk, simplifies procurement, and supports compliant end-of-life handling. Application: EU and global manufacturing environments with formal compliance requirements and supplier audits. Feature: Size and weight details—dimensions 140 x 120 x 230 mm; net weight 0.662 kg. Business Impact: Predictable space planning and ergonomic handling during installation. Application: Integrates with surface-mounted installations and back-panel design constraints.
Get a Quick Quote for a ABB 6963.120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 6963.120?
Enquire Now
FAQs
To install, prep the Hafonorm space, remove the cover screws, align the terminal box with the back panel, and secure with the supplied screws for surface mounting. Connect the 15 terminals in the 5 blocks (2x16 and 1x25 mm) per your wiring diagram, then tighten all terminations before resealing the cover. Ensure CE declarations are reviewed and the IP20 rating is preserved.
Key specs include a 63 A rated current, 400 V rated insulation voltage, and IP20 protection. The enclosure holds 15 terminals across 5 terminal blocks (2x16 + 1x25 mm). The unit is black synthetic plastic with surface mounting and screw cover mounting, designed for indoor industrial use and CE compliance.
Yes. The terminal box carries a CE Declaration of Conformity and REACH compliance, aligning with standard EU regulatory requirements for control panel components. Its IP20 rating suits indoor factory environments, and the Hafonorm-compatible design supports reliable integration with common distribution cabinets used in industrial settings.
The unit measures 140 mm (width) x 120 mm (height) x 230 mm (depth) with a net weight of 0.662 kg. This compact footprint supports efficient space planning in tight enclosures and helps reduce overall panel weight for easier on-site handling and mounting.
ROI benefits stem from faster installation, fewer wiring errors, and regulatory compliance with CE and REACH. Its compact, lightweight design lowers labor time during assembly and service, while the organized 15-terminal layout reduces maintenance complexity and improves reliability in ongoing production line operations.
