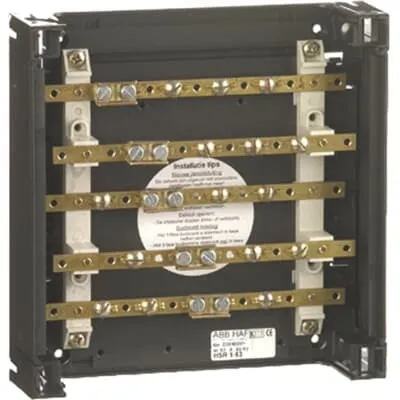

ABB 6963.210 Bus Bar Board - 63 A, IP20, Mountable
Part Number: 6963.210
Quick Summary
ABB 6963.210 Bus Bar Board is a compact distribution unit for 63 A rail installations in control panels. Engineers struggle with space constraints and wiring complexity when upgrading legacy panels. This unit delivers reliable IP20 protection, CE conformity, and RoHS/REACH compliance, reducing regulatory risk while meeting industry standards. Its Hafonorm busbar housing and externally mountable design streamline field installations and future expansions. By consolidating busbars in a dedicated enclosure, it supports faster assembly, simplified maintenance, and safer operation across industrial applications. For OEMs and panel builders, this translates into lower installation time, improved traceability, and a cleaner, scalable solution that fits tight panel dimensions and evolving control architectures.
Product Information
Extended Description
6963.210 ABB: Busbar housing Hafonorm 63 A, 5x rail 10 x 2 mm Spreader Box
Environmental Product Declaration - EPD
EPD_unequipped rail cabinets
Rated Current (In)
63 A
Number of Poles
5P
Mounting Type
Externally Mountable
Product Type
Bus bar board
Enclosure Material
Synthetic
Housing Material
Plastic
Number of Batteries
0
RoHS Information
EU Declaration of Conformity / busbar boxes HAFONORM
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20160420
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP20
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
235.000 mm
Product Net Height
100.000 mm
Product Net Depth / Length
265.000 mm
Product Net Weight
0.855 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.9685 kg
Declaration of Conformity - CE
EU Declaration of Conformity / busbar boxes HAFONORM
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002274 - Busbar housing
ETIM 9
EC002274 - Busbar housing
eClass
V11.0 : 27400623
Object Classification Code
Not applicable
63 A rating with 5 poles enables robust distribution on a compact module, reducing enclosure depth and simplifying wiring. This translates to faster assembly, fewer wiring errors, and improved heat management in panel builds. Ideal for machine builders upgrading existing lines or expanding control cabinets with minimal rework. Externally Mountable design lets you retrofit or expand without opening main enclosures. This reduces downtime and avoids interior cable rearrangements, improving technician productivity during upgrades. Suitable for modular control panels in manufacturing lines and process automation workflows. Lightweight synthetic enclosure with a plastic housing lowers weight, eases handling, and provides integral insulation. The material choice supports cost-effective manufacturing and reduces drilling or mounting effort during installation. IP20 protection offers indoor safeguarding against dust and incidental contact within panel housings, while CE declarations and RoHS compliance ensure regulatory alignment. This helps avoid compliance bottlenecks during audits and supports safer, reliable operation. Environmental declarations (EPD) and REACH statements provide sustainability transparency, enabling lifecycle assessments and green procurement goals. Hafonorm busbar integration and ETIM/eClass classifications support consistent sourcing and faster cross-referencing. Product dimensions—235 mm width, 100 mm height, 265 mm depth—and a net weight of 0.855 kg enable precise planning in dense panel layouts and straightforward shipping and handling.
Get a Quick Quote for a ABB 6963.210
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 6963.210?
Enquire Now
FAQs
ABB 6963.210 is designed for external mounting in compact control panels with Hafonorm rails. Plan for a clean busbar layout, ensure IP20-rated indoor enclosure placement, and allow clearance for 235 mm width and 265 mm depth. The externally mountable design minimizes enclosure openings during upgrades, reducing downtime and rework. Verify RoHS/REACH compliance documentation during commissioning.
The unit is rated for 63 A with 5 poles, suitable for distributing medium-power circuits in a single enclosure. Its compact footprint supports efficient use of panel space while maintaining safe insulation and clear routing. Confirm conductor sizing and protective device coordination to maximize performance and minimize fault propagation within machine control panels.
Ideal for OEMs and panel builders in factory automation, machine building, and process control where space is limited. The Hafonorm-based 63 A busbar system supports modular expansions, retrofits, and standardized panel designs, simplifying procurement and ensuring consistent electrical topology across multiple lines.
The product carries CE declarations of conformity and RoHS compliance under EU Directive 2011/65/EU, with REACH information. It features IP20 protection for indoor environments and an environmental declaration (EPD). These certifications help meet regulatory requirements, support sustainability goals, and streamline audits during system integration.
ROI is driven by reduced installation time, fewer wiring errors, and easier future expansions due to the externally mountable design. Maintenance is simplified by a centralized busbar enclosure, clear labeling, and standardized dimensions. Regularly verify RoHS/REACH declarations and CE documentation to sustain compliance and minimize unexpected downtime.
