ABB 6963.220 Busbar housing - IP20, 160A ExternallyMountable
Part Number: 6963.220
Quick Summary
ABB 6963.220 Busbar housing enables compact power distribution for industrial control panels. Engineers often struggle to safely enclose 160 A busbars while preserving access for maintenance and conforming to IP20 and RoHS/REACH requirements. It carries CE conformity and RoHS/REACH declarations, including a REACH declaration and WEEE stance, supporting regulatory audits. The combination of a robust synthetic enclosure and Hafonorm rails reduces footprint and simplifies wiring, delivering faster panel builds and reliable long-term operation. This solution scales with evolving control architectures, offering a cost-effective path to compliant, high-density panel designs.
Product Information
Extended Description

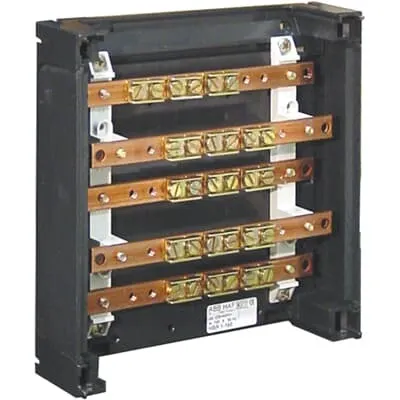

6963.220 ABB: Busbar housing Hafonorm 160A, 5x rail 15 x 4 mm Spreader Box
Environmental Product Declaration - EPD
EPD_unequipped rail cabinets
Rated Current (In)
160 A
Number of Poles
5P
Mounting Type
Externally Mountable
Product Type
Bus bar board
Enclosure Material
Synthetic
Housing Material
Plastic
Number of Batteries
0
RoHS Information
EU Declaration of Conformity / busbar boxes HAFONORM
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20160420
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP20
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
235.000 mm
Product Net Height
100.000 mm
Product Net Depth / Length
265.000 mm
Product Net Weight
1.216 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
1.3295 kg
Declaration of Conformity - CE
EU Declaration of Conformity / busbar boxes HAFONORM
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002274 - Busbar housing
ETIM 9
EC002274 - Busbar housing
eClass
V11.0 : 27400623
Object Classification Code
Not applicable
Feature 160 A rated current Kingpin a 5P configuration delivers robust power handling with a compact footprint. Business Impact: Enables high-density busbar layouts without sacrificing safety or serviceability, reducing cabinet size and wiring complexity. Application: Ideal for Hafonorm 160A installations in control panels and switchgear, supporting quicker commissioning and easier future upgrades. Feature Externally mounting capability adds installation flexibility and minimizes cabinet modification needs. Business Impact: Streamlines retrofits and modular builds, cutting installation time and labor costs. Application: Use in panel upgrades and OEM builds where external mounting reduces space requirements and improves thermal management. Feature Synthetic enclosure with Plastic housing lowers weight and corrosion risk while improving impact resistance. Business Impact: Simplifies handling during assembly and improves lifecycle costs. Application: Suitable for industrial environments requiring safer, lighter enclosures with durable protection. Feature RoHS and REACH compliance plus CE declaration ensures regulatory readiness. Business Impact: Reduces compliance risk and audit preparation time, supporting traceable supply chains. Application: Fit for industries with strict environmental and material standards. Feature Precise dimensions and weight (235 mm width, 100 mm height, 265 mm depth; 1.216 kg net) enable accurate panel planning. Business Impact: Improves rack and door clearances, reduces material waste, and supports accurate BOMs. Application: Used in space-constrained control rooms and machine frames. Feature ETIM EC002274 classification aligns procurement with standardized data. Business Impact: Improves purchasing efficiency and supplier integration. Application: Enterprise datasets and ERP workflows benefit from consistent product attributes.
Get a Quick Quote for a ABB 6963.220
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 6963.220?
Enquire Now
FAQs
The 6963.220 is designed specifically for Hafonorm 160 A rails, featuring a 5P configuration and externally mountable design. Its 235 mm width by 100 mm height by 265 mm depth footprint supports compact layouts while delivering a rated current of 160 A. This compatibility streamlines panel design, reduces the need for adapters, and improves installation reliability in industrial control applications.
The unit provides CE conformity with EU declarations, RoHS compliance under Directive 2011/65/EU, and a REACH declaration. It also notes a declared WEEE status and material disclosures. This combination supports regulatory audits, lifecycle planning, and sustainable procurement for automated systems and panel assemblies.
External mounting reduces cabinet modification and simplifies maintenance access. Refer to the APIM0709-123NL/120824 manuals for installation guidance. The enclosure supports straightforward wiring through Hafonorm rails, and its IP20 rating suits indoor control panels. Ensure adequate clearance for wiring and serviceability while maintaining the 160 A rating with proper conductor sizing.
Key benefits include safe high-current distribution within a compact footprint, reduced panel footprint due to external mounting, and compliant material use with RoHS/REACH and CE declarations. The lightweight synthetic plastic housing lowers handling effort and improves installation speed. In practice, you gain faster assembly, easier maintenance, and adherence to regulatory standards across industrial automation projects.
Yes. The product carries RoHS compliance and a REACH declaration, with specific dates indicating regulatory alignment (RoHS 20160420, REACH 20230911) and a WEEE category statement. This supports risk assessments, supplier evaluations, and end-of-life planning, helping procurement teams meet sustainability targets while maintaining panel integrity.
