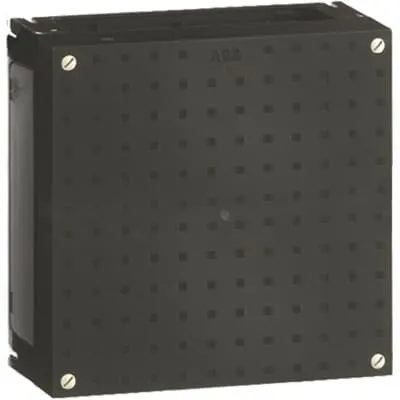

ABB 6964.120 Consumer Unit - IP20 Surface Mount
Part Number: 6964.120
Quick Summary
ABB 6964.120 Consumer Unit is a surface-mounted small distribution board designed for electrical enclosures in industrial and commercial panels. Users often struggle with mounting versatility and protection in tight spaces, which complicates installs and increases commissioning time. This enclosure carries CE conformity, IP20 protection, and REACH compliance, providing a clear regulatory trail. By focusing on compact dimensions, lightweight construction, and flexible mounting options, this solution supports faster panel builds, easier maintenance, and lower total cost of ownership for building services and machine controls.
Product Information
Extended Description
6964.120 ABB: Small distribution board Hafonorm Empty CU with blind cover
Environmental Product Declaration - EPD
EPD_unequipped installation cabinets with little to no metal
Number of Flange Openings
4
Number of Conduit Inlets
0
Number of Rows
0
Cover Plate Type
Cover
Mounting Type
Surface mounting
Product Type
Standard
Surface Finishing
Untreated
Enclosure Material
Synthetic
Housing Material
Plastic
Options Provided
Mounting plate, External mounting possible, Closed cover, Surface mounting
Cover Style
Closed
RAL Number
RAL 9017 - Traffic Black
Color
Black
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP20
Protection Class
Grounded (Class I)
Environmental Information
Declaration regarding the REACH - Regulation
Width in Number of Modular Spacings
0
Product Net Width
235.000 mm
Product Net Height
100.000 mm
Product Net Depth / Length
265.000 mm
Product Net Weight
0.594 kg
Built-In Depth (t2)
45 mm
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.7075 kg
Declaration of Conformity - CE
CE Declaration of Conformity HAFONORM distribution boards (domestic use)
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142408
Object Classification Code
Not applicable
Feature → Business Impact → Application: The Hafonorm consumer unit uses a synthetic enclosure with a robust plastic housing, delivering corrosion resistance and lightweight handling, which reduces labor during installation and minimizes transport costs on site. This translates to faster cabinet assembly and easier inventory management in control panels for manufacturing lines and facility infrastructure. Feature → Business Impact → Application: Surface mounting with a closed cover and a mounting plate option provides quick, clean installations in space-constrained switchgear closets, improving panel aesthetic and accessibility for maintenance. Feature → Business Impact → Application: 235 mm width, 100 mm height, and 265 mm depth along with a built-in depth of 45 mm yield a compact footprint ideal for narrow equipment rooms, enabling modular upgrades and scalable control cabinets. Feature → Business Impact → Application: RAL 9017 black color and external mounting capabilities support consistent industrial aesthetics and flexible positioning in harsh factory environments. Feature → Business Impact → Application: Compliance features including REACH declaration, CE conformity, and WEEE considerations help ensure regulatory readiness and smoother audits for machine builders and panel integrators.
Get a Quick Quote for a ABB 6964.120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 6964.120?
Enquire Now
FAQs
The ABB 6964.120 is purpose-built for surface mounting, offering a plug-and-play mounting plate option and external mounting capability. Its compact 235x100x265 mm footprint fits tight panel spaces, simplifying layout planning and reducing mounting time while maintaining robust access for wiring and future upgrades.
Key specs include IP20 protection, 235 mm width, 100 mm height, 265 mm depth, 0.594 kg weight, and built-in depth of 45 mm. Material is synthetic housing with a plastic enclosure, closed cover, and RAL 9017 color, all contributing to compactness and ease of integration into standard Hafonorm layouts.
Yes. The unit carries a CE Declaration of Conformity for Hafonorm distribution boards and includes REACH information with a date of 20230911, plus a REACH declaration indicating safe material usage. These certifications support regulatory compliance and smoother audits in industrial environments.
Yes. The design supports surface mounting with an external mounting option and includes a mounting plate, enabling both internal cabinet integration and external mounting configurations. This versatility helps optimize panel layouts, reduces enclosure conflicts, and speeds up installation in varied plant layouts.
The compact footprint and lightweight plastic enclosure reduce shipping and handling costs, while CE and REACH compliance minimize risk during audits. Easy mounting and accessible covers speed routine maintenance, cutting downtime and improving overall panel reliability in ongoing manufacturing or facility management operations.
