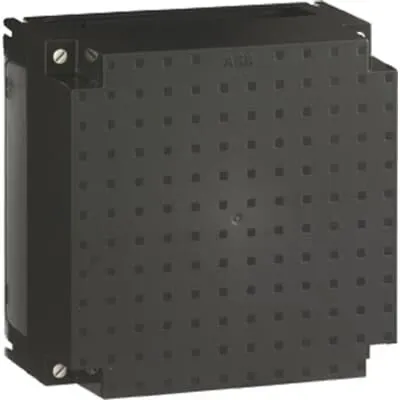

ABB 6964.150 Consumer Unit - Surface Mount IP20
Part Number: 6964.150
Quick Summary
ABB 6964.150 Consumer Unit is a compact surface-mount distribution board designed for compact electrical installations in cabinets. Engineers often struggle with space constraints and cable management when upgrading control panels. This unit carries CE conformity, IP20 protection, and REACH compliance, with a Class I grounding design for safety. Its lightweight, empty 1-row format supports rapid panel assembly, while the closed cover helps protect wiring in busy environments. As part of Hafonorm's enclosure family, it blends trusted performance with easy sourcing for industrial control panels. Manufacturers benefit from consistent dimensions and mounting allowances across Hafonorm ranges.
Product Information
Extended Description
6964.150 ABB: Small distribution board Hafonorm Empty CU with blind raised cover
Environmental Product Declaration - EPD
EPD_unequipped installation cabinets with little to no metal
Number of Flange Openings
4
Number of Conduit Inlets
0
Number of Rows
1
Cover Plate Type
Cover
Mounting Type
Surface mounting
Product Type
Standard
Surface Finishing
Untreated
Enclosure Material
Synthetic
Housing Material
Plastic
Options Provided
Mounting plate, External mounting possible, Closed cover, Surface mounting
Cover Style
Closed
RAL Number
RAL 9017 - Traffic Black
Color
Black
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP20
Protection Class
Grounded (Class I)
Environmental Information
Declaration regarding the REACH - Regulation
Width in Number of Modular Spacings
0
Product Net Width
230.000 mm
Product Net Height
150.000 mm
Product Net Depth / Length
265.000 mm
Product Net Weight
0.771 kg
Built-In Depth (t2)
45 mm
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.9044 kg
Declaration of Conformity - CE
CE Declaration of Conformity HAFONORM distribution boards (domestic use)
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142408
Object Classification Code
Not applicable
Feature: Surface mounting with 1 row and closed cover. Business Impact: Simplifies installation in tight spaces and delivers neat wiring routes, reducing panel assembly time. Application: Ideal for compact control cabinets in manufacturing lines and commercial environments. Feature: IP20 protection and Class I grounding. Business Impact: Enhances internal component safety and reliability in indoor, non-harsh environments, lowering risk of contact and electrical faults. Application: Domestic and light-industrial electrical installations requiring safe indoor enclosure. Feature: Lightweight synthetic enclosure with plastic housing and built-in depth of 45 mm. Business Impact: Easier handling, reduced shipping costs, and flexible mounting options without sacrificing rigidity. Application: Retrofit projects and new builds where weight and space savings matter. Feature: Aesthetic and durable finish with RAL 9017 Black and closed cover. Business Impact: Consistent appearance with other Hafonorm components and improved dust/mite protection for clean environments. Application: Retail, offices, workshops, and process lines needing unobtrusive enclosures. Feature: Flexible options provided including mounting plate, external mounting, and surface mounting. Business Impact: Maximizes installation flexibility and minimizes procurement complexity for OEMs. Application: Systems integrating external mounting or future expansions; supports scalable control architectures.
Get a Quick Quote for a ABB 6964.150
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 6964.150?
Enquire Now
FAQs
ABB 6964.150 supports surface mounting with an optional mounting plate and external mounting capability. It is designed for a 1-row, 0-module configuration and offers a closed cover for cable protection, making it straightforward to install in tight control panels without sacrificing accessibility for future wiring changes.
The unit has a product net width of 230.000 mm, height of 150.000 mm, and depth of 265.000 mm, with a built-in depth of 45 mm. It weighs 0.771 kg, making it lightweight for quick handling during installation and relocation within enclosures.
Yes. The product carries a CE Declaration of Conformity for Hafonorm distribution boards and adheres to REACH requirements, with a declared REACH declaration and information indicating no substances above 0.1 mass percentage. This supports regulatory compliance across European markets.
Suitable for indoor, dry environments requiring reliable IP20 protection and Class I grounding. It is ideal for small distribution boards, domestic control cabinets, workshops, and light-industrial panels where compact size and flexible mounting are beneficial.
It addresses space constraints with a compact 1-row design, lightweight plastic housing, and a closed cover that protects wiring. The option for external mounting and mounting plates reduces lead times and procurement complexity, supporting faster commissioning and scalable panel architectures.
