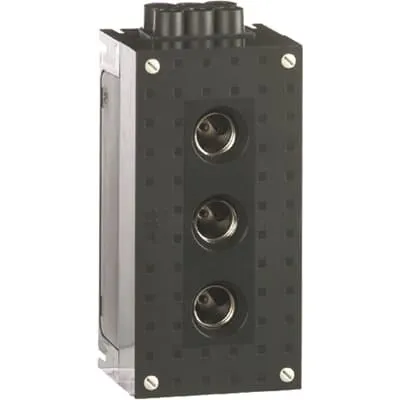

ABB 6965.110 Fuse Holder Board - IP20, 25 A Screw Fuse
Part Number: 6965.110
Quick Summary
ABB 6965.110 Fuse Holder Board is an externally mounted fuse enclosure that protects control panels with compact, reliable fuse protection. When space is tight or service access is limited, the unit simplifies wiring and reduces downtime with universal DIN rail mounting and straightforward screw fuse installation. It carries CE conformity via EU Declaration of Conformity, RoHS compliance under Directive 2011/65/EU, REACH declarations, and WEEE category handling. IP20 protection and Hafonorm heritage deliver durable, scalable performance, while the 25 A rating supports common industrial circuits—helping you meet safety, compliance, and cost-management objectives across panel builds.
Product Information
Extended Description
6965.110 ABB: Fuse enclosure Hafonorm Fuse holder 1 x (3 x 25) Fuse box
Rated Current (In)
25 A
Current Rating, Main Switch
25 A
Fuse Type
Screw fuse
Mounting Type
Externally mountable
Product Type
Fuse holder board
Protection Type
Screw cartridge fuse
Enclosure Material
Synthetic
Housing Material
Plastic
Mounting on DIN Rail
Universal
Number of Batteries
0
RoHS Information
EU Declaration of Conformity / fuse boxes HAFONORM
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20160420
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP20
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
120.000 mm
Product Net Height
140.000 mm
Product Net Depth / Length
230.000 mm
Product Net Weight
0.574 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
7.988 kg
Declaration of Conformity - CE
EU Declaration of Conformity / fuse boxes HAFONORM
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC000100 - Fuse enclosure
ETIM 9
EC000100 - Fuse enclosure
eClass
V11.0 : 27400628
Object Classification Code
Not applicable
Feature → Business Impact → Application: Externally mountable fuse enclosure enables easy retrofit and external wiring access, reducing installation time and minimizing panel downtime; ideal for retrofits in existing control cabinets and space-constrained machines. Feature → Business Impact → Application: 25 A rating with 25 A main switch provides predictable protection for medium-load circuits, lowering fault risk and simplifying circuit design in industrial machines and subpanels. Feature → Business Impact → Application: Screw fuse and screw cartridge protection simplify maintenance and spare part handling, improving uptime in machine shops and manufacturing lines. Feature → Business Impact → Application: Synthetic enclosure with plastic housing delivers cost-effective, lightweight construction; compatible with Hafonorm fuse boxes for standardized replacements in production lines. Feature → Business Impact → Application: IP20 rating, compact dimensions (140 × 120 × 230 mm) and 0.574 kg weight support tight-panel layouts and easy integration into modular control systems. Feature → Business Impact → Application: DIN rail universal mounting plus external mounting option speeds installation in new builds and expansions, reducing install time and training needs. Feature → Business Impact → Application: RoHS, REACH, and WEEE compliance streamline regulatory audits and sustainability reporting for OEMs and service providers. Feature → Business Impact → Application: Comprehensive documentation (data sheet, manuals) ensures correct installation, safer operation, and faster commissioning across facilities.
Get a Quick Quote for a ABB 6965.110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 6965.110?
Enquire Now
FAQs
The ABB 6965.110 uses universal DIN rail mounting and can be externally mounted, making it suitable for both new installations and retrofits in compact control cabinets. This flexibility reduces wiring complexity and supports standardized layouts across multiple machines.
It is rated for 25 A with a main switch rating of 25 A, uses screw fuse protection, and supports screw cartridge fuses. This combination suits mid-range control circuits while enabling straightforward fuse replacement and maintenance.
Yes. The product carries CE conformity via EU Declaration of Conformity and RoHS compliance under EU Directive 2011/65/EU, with REACH declarations indicating substances are within safe limits and documentation is available for audits.
The enclosure is IP20 protected, with a synthetic enclosure and plastic housing. This combination provides a cost-effective, lightweight solution suitable for indoor environments with minimal dust exposure.
Access the APIM0709-123NL/120824 installation manuals and the WebCatalog data sheet for consumer units and junction boxes. These resources support correct wiring, mounting, and ongoing maintenance within Hafonorm fuse enclosure families.
