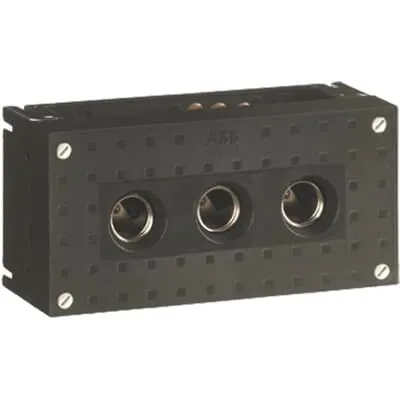

ABB 6965.310 Fuse enclosure - IP20
Part Number: 6965.310
Quick Summary
ABB 6965.310 Fuse enclosure is an externally mountable consumer unit for safe power distribution in electrical control panels. This design addresses the common challenge of fitting robust protection within compact spaces while maintaining easy access for maintenance. It carries CE conformity, RoHS and REACH declarations, plus IP20 protection for reliable indoor operation in industrial environments. Designed for DIN rail compatibility and external mounting on control panels, this fuse enclosure delivers cost-efficient protection with straightforward installation and service. Ideal for panel builders and maintenance teams seeking modular, standards-aligned protection with predictable lead times. Its 25 A rating and screw fuse type simplify sizing decisions and spare parts planning.
Product Information
Extended Description
6965.310 ABB: Fuse enclosure Hafonorm Fuse holder 1 x (3 x 25) Fuse box
Rated Current (In)
25 A
Current Rating, Main Switch
25 A
Fuse Type
Screw fuse
Mounting Type
Externally mountable
Product Type
Fuse holder board
Protection Type
Screw cartridge fuse
Enclosure Material
Synthetic
Housing Material
Plastic
Mounting on DIN Rail
Universal
Number of Batteries
0
RoHS Information
EU Declaration of Conformity / fuse boxes HAFONORM
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20160420
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP20
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
120.000 mm
Product Net Height
140.000 mm
Product Net Depth / Length
230.000 mm
Product Net Weight
0.566 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
8.252 kg
Declaration of Conformity - CE
EU Declaration of Conformity / fuse boxes HAFONORM
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC000100 - Fuse enclosure
ETIM 9
EC000100 - Fuse enclosure
eClass
V11.0 : 27400628
Object Classification Code
Not applicable
Externally mountable IP20 fuse enclosure enables flexible installation in crowded panels, reducing enclosure drilling and on-site modifications. This translates to faster project timelines, lower labor costs, and safer wiring practices because the enclosure provides clear, protected access to fuse components. Application: control panels and junction setups in manufacturing lines.Fuse holder board with 1 x (3 x 25) and screw fuse ensures straightforward protection of 25 A circuits. The design supports quick fuse replacement, minimizes downtime, and improves reliability in machine safety circuits by allowing standard screw fuses to be sourced locally.Enclosure material is synthetic with a plastic housing, delivering a robust yet lightweight solution that benefits tracking, handling, and long-term supply chain stability. RoHS and REACH declarations, along with the WEEE categorization, reduce regulatory risk and support compliant disposal at end-of-life.DIN rail mounting is universal, enabling rapid retrofits and seamless compatibility with common automation cabinets. This simplifies installation in new builds and upgrades, while APIM0709-123NL/120824 manuals and the WebCatalog data sheet provide clear guidance to installers and technicians.Compact footprint (140 mm x 120 mm x 230 mm) and a net weight of 0.566 kg help keep enclosure inventories and shipping costs predictable. The product is designed for panel builders who require dependable, scalable protection with minimal on-site adjustments.
Get a Quick Quote for a ABB 6965.310
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 6965.310?
Enquire Now
FAQs
The 6965.310 is designed for universal DIN rail mounting, enabling quick mounting without altering existing wiring. Installers simply align the enclosure with the rail, snap it into place, and connect the bus bars and fuses as per the APIM0709-123NL/120824 manual. This reduces installation time and minimizes field errors in panel assemblies.
Key specs include a rated current of 25 A, main switch rating of 25 A, screw fuse type, and protection type screw cartridge fuse. The enclosure supports 1 x (3 x 25) fuse configurations, with IP20 protection for indoor use. These specs align with standard control panel protection needs and spare-part compatibility.
Yes. The 6965.310 is a Hafonorm-style fuse enclosure designed to house a fuse holder board and accommodate standard screw fuses. Its externally mountable design and DIN-rail compatibility make it suitable for Hafonorm and other compatible fuse boxes in compact control panels, offering modular protection with straightforward service access.
The enclosure carries CE conformity, RoHS compliance under EU Directive 2011/65/EU, and a REACH declaration. WEEE classification is 5. Small Equipment, and the product provides a REACH and CMRT supporting documentation for responsible sourcing and end-of-life management.
It reduces installation time with universal DIN rail mounting, lowers spare-parts inventory by using common screw fuses, and enhances uptime through straightforward fuse replacement. The RoHS/REACH/CE compliance minimizes regulatory risk while compact dimensions and light weight simplify shipping, handling, and on-site deployment in high-volume manufacturing environments.
