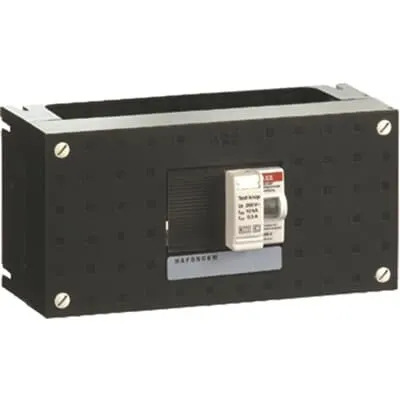

ABB 6970.110 Earth leakage circuit breaker - IP2XC
Part Number: 6970.110
Quick Summary
Earth leakage circuit breaker from ABB protects indoor distribution boards by quickly interrupting leakage currents. In compact panels where space is at a premium, unreliable protection or nuisance tripping can disrupt operations and force costly rewiring. This unit combines a 230 V single-phase design with a B-type tripping characteristic and a 6 kA short-circuit capacity, delivering dependable performance in everyday HVAC, lighting, and control circuits. It carries CE conformity, IP2XC enclosure protection, and REACH compliance to support safe, compliant installations in both residential and commercial environments. By integrating surface mounting with a slim 110x220x110 mm footprint and optional surge protection, it simplifies assembly, reduces wiring time, and lowers service costs for panel builders and maintenance teams.
Product Information
Extended Description
6970.110 ABB: Small distribution board equipped Hafonorm Surge protection device 2-pole Consumer Unit
Tripping Characteristic
B
Rated Short-Circuit Capacity
(230 V) 6 kA
Number of Groups with RCD
0
Number of Protected Poles
0
Number of Poles Main Switch
0
Number of Outputs
0
Number of Phases
1
Number of Earth Leakage Circuit Breakers (ELCBs)
0 | 30mA 0 | 300mA 0
Number of Miniature Circuit Breakers (MCBs)
Three-Phase 0
Number of RCDs 30mA
0
Number of RCDs 300mA
0
Number of RCBOs
0
Number of Phases in Cooking Group
0
Number of Rows
1
Overvoltage Category
II
Closure Type
Snap Function
Cover Plate Type
Cover
Mounting Type
Surface mounted
Product Type
Consumer unit with surge arresters
Protection Type
Miniature-/earth leakage circuit breaker
Enclosure Material
Synthetic
Housing Material
Plastic
Options Provided
Over-voltage protection
RAL Number
Similar to RAL 9005
Color
Black
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
07fdeac9-41b8-49bf-9fd4-213b726f9d2d Netherlands (NL)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP2XC
Environmental Information
Declaration regarding the REACH - Regulation
Width in Number of Modular Spacings
4
Product Net Width
220 mm
Product Net Height
110 mm
Product Net Depth / Length
110 mm
Product Net Weight
0.756 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.827 kg
Declaration of Conformity - CE
CE Declaration of Conformity HAFONORM distribution boards (domestic use)
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
eClass
V11.0 : 27142415
Object Classification Code
Not applicable
Tripping characteristic B provides fast, predictable response for overload and short-circuit events, reducing nuisance trips and unnecessary downtime. In a single-phase distribution context, it protects sensitive loads while keeping equipment safe. This brings measurable uptime improvements for lighting, small motors, and control circuits in commercial spaces. Rated Short-Circuit Capacity of 6 kA at 230 V ensures robust fault handling, limiting damage and enabling faster return to service after faults. The compact surface-mounted, 1-row design (110 mm x 220 mm x 110 mm) fits tight panel enclosures, accelerating installation and reducing space costs in retrofit projects. Enclosure material is synthetic with a plastic housing, paired with a cover plate for a neat finished appearance, which simplifies maintenance and replacement. Compatibility with Hafonorm surge protection devices and the option for built-in over-voltage protection support safer, more resilient panel solutions. Certifications such as CE conformity, REACH, and WEEE alignment reduce regulatory risk and streamline audits for electrical contractors and panel builders. The unit’s 1-phase, 230 V operation is ideal for domestic and light commercial applications, keeping wiring diagrams straightforward and improving training efficiency for maintenance staff.
Get a Quick Quote for a ABB 6970.110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 6970.110?
Enquire Now
FAQs
ABB 6970.110 is designed for use in compact distribution boards and is compatible with Hafonorm surge protection devices. It functions as a one-phase unit with surface mounting, 110x220x110 mm dimensions, and IP2XC protection, making it suitable for integration alongside Hafonorm 2-pole surge protection in residential or light commercial panels.
To install, place the unit in the surface-mounted enclosure, align with the 1-row layout, and secure with the enclosure’s mounting provisions. Use the supplied cover plate for a finished appearance and connect conductors per the panel’s wiring diagram. Ensure IP2XC protection is maintained and verify rated voltage of 230 V and the functional B-type trip for reliable protection.
Yes. The device is a single-phase, 230 V protection unit with a rated short-circuit capacity of 6 kA, providing robust protection against short circuits while maintaining safe tripping characteristics for general-purpose circuits in domestic and light commercial panels.
The ABB 6970.110 carries CE conformity and REACH compliance. It also aligns with WEEE guidelines and relevant ETIM/eClass classifications, supporting safe use, regulatory audits, and responsible end-of-life handling in both residential and commercial environments.
The unit is surface-mounted, 1-row, with dimensions 110 mm x 220 mm x 110 mm and a net weight of about 0.756 kg. Its black plastic housing (similar to RAL 9005) and compact footprint simplify retrofits and space-constrained installations, while keeping wiring straightforward and serviceable in compact consumer units.
