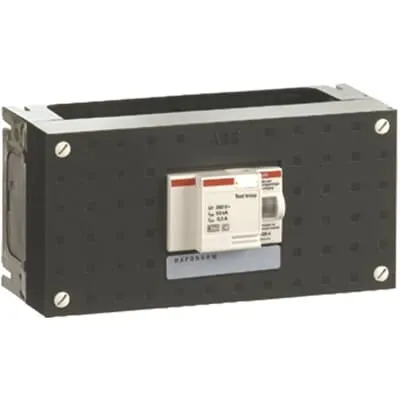

ABB 6970.210 Consumer Unit - Hafonorm Surge, 3-Phase IP2XC
Part Number: 6970.210
Quick Summary
ABB 6970.210 consumer unit provides compact three-phase distribution for indoor panels. Facing space constraints and wiring complexity in modern control rooms, engineers need a ready-to-install solution that doesn’t compromise safety. This unit carries CE conformity, IP2XC protection, and REACH/SCIP compliance to help meet regulatory demands while keeping installation straightforward. With a surface-mounted footprint of 110 mm by 220 mm and Hafonorm surge protection, it supports both new builds and panel upgrades. Designed for reliability and cost efficiency, it minimizes downtime, simplifies procurement, and accelerates commissioning in commercial and light-industrial applications.
Product Information
Extended Description
6970.210 ABB: Small distribution board equipped Hafonorm Surge protection device 4-pole Consumer Unit
Tripping Characteristic
B
Rated Short-Circuit Capacity
(230 V) 6 kA
Number of Groups with RCD
0
Number of Protected Poles
0
Number of Poles Main Switch
0
Number of Outputs
0
Number of Phases
3
Number of Earth Leakage Circuit Breakers (ELCBs)
0 | 30mA 0 | 300mA 0
Number of Miniature Circuit Breakers (MCBs)
Three-Phase 0
Number of RCDs 30mA
0
Number of RCDs 300mA
0
Number of RCBOs
0
Number of Phases in Cooking Group
0
Number of Rows
1
Overvoltage Category
II
Closure Type
Snap Function
Cover Plate Type
Cover
Mounting Type
Surface mounted
Product Type
Consumer unit with surge arresters
Protection Type
Miniature-/earth leakage circuit breaker
Enclosure Material
Synthetic
Housing Material
Plastic
Options Provided
Over-voltage protection
RAL Number
Similar to RAL 9005
Color
Black
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
07fdeac9-41b8-49bf-9fd4-213b726f9d2d Netherlands (NL)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP2XC
Environmental Information
Declaration regarding the REACH - Regulation
Width in Number of Modular Spacings
6
Product Net Width
220 mm
Product Net Height
110 mm
Product Net Depth / Length
110 mm
Product Net Weight
0.933 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
1.004 kg
Declaration of Conformity - CE
CE Declaration of Conformity HAFONORM distribution boards (domestic use)
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
eClass
V11.0 : 27142415
Object Classification Code
Not applicable
Feature Hafonorm surge protection is integrated as a four-pole device. Business impact: reduces surge-related downtime and protects connected equipment, lowering maintenance costs. Application: well-suited for control panels and small distribution boards in industrial and commercial electrical rooms. Feature Tripping characteristic B with a rated short-circuit capacity of 6 kA at 230 V. Business impact: safe isolation during fault events and improved safety compliance. Application: suitable for European mains and similar networks. Feature 3 phases in a single 1-row enclosure with dimensions 220 mm W x 110 mm H x 110 mm D and weight 0.933 kg; surface-mounted. Business impact: space savings, easier wiring, faster installation. Application: retrofit projects and new builds in constrained spaces. Feature Durable materials: synthetic enclosure with plastic housing and a black finish (similar to RAL 9005); cover plate with snap function. Business impact: robust, vandal-resistant housing and quick access for maintenance. Application: service panels and protected-control cabinets. Feature Compliance: CE Declaration, REACH, SCIP, WEEE Category 5, ETIM 8/9, and eClass classification. Business impact: regulatory assurance, simplifies procurement, and streamlines maintenance. Application: industrial and commercial sectors requiring certified, traceable components.
Get a Quick Quote for a ABB 6970.210
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 6970.210?
Enquire Now
FAQs
Install the unit on a flat surface using suitable fixings to ensure full seating. Ensure the enclosure accommodates 220 mm width, 110 mm height and 110 mm depth. Use the snap-function cover for secure closure and verify three-phase connections while maintaining IP2XC protection throughout the wiring. Refer to the APIM0709-123NL/120824 manual for specifics.
A 6 kA short-circuit rating indicates the device can safely interrupt fault currents up to 6 kiloamps at 230 V without sustaining damage. In practice, this supports safe isolation of faults in typical EU mains and aligns with standard protective device coordination. Upstream components should be selected to operate within this limit to avoid nuisance tripping.
Yes. The ABB 6970.210 is designed as a compact, three-phase consumer unit with a 1-row footprint suitable for control cabinets and small distribution boards. Its surface-mount installation and integrated surge protection simplify retrofits and new builds, enabling faster commissioning in industrial environments while maintaining essential protection and compliance.
The unit carries CE conformity with a CE Declaration of Conformity, REACH compliance, SCIP registration, and a WEEE category 5 designation. It is classified in ETIM 8/9 and eClass, with a black finish similar to RAL 9005. These certifications support regulatory compliance, procurement accuracy, and safe handling in industrial settings.
Lifecycle value comes from integrated surge protection reducing surge-related downtime and fewer standalone components. The compact, lightweight housing simplifies handling and installation, while certified compliance minimizes regulatory risk. Over time, you benefit from predictable maintenance, lower spare-part inventories, and faster implementation in both retrofits and new installations.
