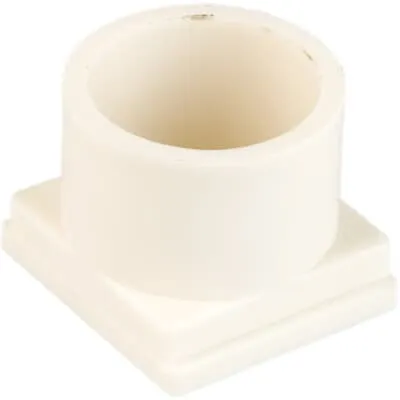

ABB 7109.110 Tube inlet - CE & REACH compliant
Part Number: 7109.110
Quick Summary
ABB 7109.110 tube inlet provides a compact entry for 16 mm tubes in flush-mounted brick-wall junction boxes. This reduces installation complexity and rework in tight spaces. It carries REACH Declaration, CE conformity, and CMRT data to support regulatory audits and supply chain transparency. With 1x16 mm tube inlet compatibility and 1 conduit inlet, it speeds installs and lowers labor costs. OEMs and installers gain predictable performance, reduced field handling, and easier REACH and CE documentation for safe deployment. The accessory is designed for one conduit inlet and single tube entry, reducing inventory variety while remaining compatible with ABB and third-party enclosures.
Product Information
Extended Description
7109.110 ABB: Insert 1x16mm, for 3513
Suitable For
Flush mounted brick wall junction boxes
Number of Conduit Inlets
1
Number of Tubes
1
Accessory Type
Tube inlet
Product Type
Tube inlet
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
25.000 mm
Product Net Height
35.000 mm
Product Net Depth / Length
37.000 mm
Product Net Weight
0.003 kg
Package Level 1 Units
bag 50 piece
Package Level 1 Gross Weight
0.21 kg
Declaration of Conformity - CE
Declaration regarding the REACH - Regulation
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002326 - Cable plug for cable-/installation tube entry
ETIM 9
EC002326 - Cable plug for cable-/installation tube entry
eClass
V11.0 : 27144407
Object Classification Code
Not applicable
Feature: 1x16 mm tube inlet. Business impact: streamlines cable routing, reduces the need for adapters, and minimizes field rework. Application: designed for flush-mounted brick-wall junction boxes and 3513-compatible enclosures. Feature: 1 conduit inlet. Business impact: consolidates ingress paths into a single entry, shortening installation time and lowering risk of leaks or misalignment. Application: effective in constrained installations where space is at a premium. Feature: Compact footprint (25x35x37 mm) and light weight (0.003 kg). Business impact: minimizes enclosure intrusion and simplifies handling, routing, and service calls. Application: ideal for OEM deployments and retrofit projects in dense electrical cabinets. Feature: Compliance documentation (REACH Declaration, CE conformity, CMRT). Business impact: accelerates regulatory audits and supply chain transparency while reducing compliance overhead. Application: useful for global projects and vendor qualification. Feature: Packaging and logistics (bag of 50 units; 0.21 kg gross per bag). Business impact: lowers procurement overhead, simplifies stocking, and improves cash flow. Application: suitable for large installations and distributor inventory. Feature: Certifications and classifications (ETIM 8/9 EC002326, eClass V11.0, WEEE not in scope). Business impact: reinforces interoperability and catalog accuracy in digital procurement. Application: supports data-driven sourcing and seamless integration with engineering catalogs.
Get a Quick Quote for a ABB 7109.110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7109.110?
Enquire Now
FAQs
The 7109.110 is designed for flush-mounted brick-wall junction boxes and is compatible with ABB’s 3513 series as noted in its insertion specification. It provides a single 16 mm tube entry and one conduit inlet, simplifying retrofit or new-build installations in restricted spaces.
This tube inlet carries a REACH Declaration and CE conformity, with CMRT data available for supply-chain transparency. The device is documented to meet ABB’s REACH declarations and is listed with WEEE as not in scope, aiding regulatory audits and supplier qualification across global projects.
Yes. The 7109.110 is specified for 1 conduit inlet and 1 tube entry, providing a clean, single-entry point that reduces монтаж time, minimizes leakage risk, and supports straightforward routing in compact enclosures.
The unit ships in bags of 50 pieces with a gross bag weight of approximately 0.21 kg. This packaging supports bulk orders and distributor stocking, enabling easier inventory planning, fewer stocking points, and faster project fulfillment.
Installation is streamlined by a compact 25x35x37 mm footprint and a lightweight 0.003 kg per unit, which reduces handling time and enclosure intrusion. Compatibility with ABB and third-party enclosures minimizes parts diversification and accelerates field commissioning.
