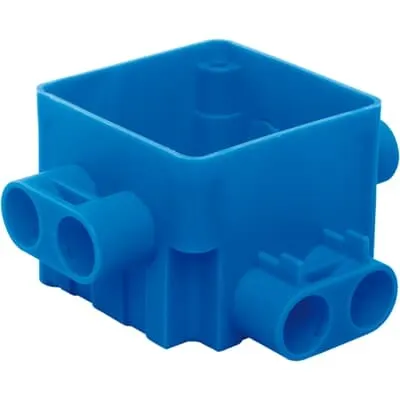

ABB 7110.410 Ceiling Box - Central conduit box, 8 inlets
Part Number: 7110.410
Quick Summary
ABB 7110.410 Ceiling Box is a hollow ceiling central conduit box designed to simplify wiring in industrial installations. Engineers often struggle with cramped access and disorganized terminations in ceiling spaces, which slows installation and increases risk of miswiring. It carries CE conformity, REACH compliance, and SCIP registration, giving you regulatory assurance and transparent supply chain data for audit readiness. The compact 70 Ă— 58 Ă— 110 mm footprint and screw-mount cover deliver straightforward installation, while eight conduit inlets accommodate wiring density without compromising serviceability. This solution pairs well with ABB wiring accessories and BIM data, delivering reliable performance in new builds and retrofit projects alike, reducing install time and downstream maintenance costs.
Product Information
Extended Description
7110.410 ABB: 55mm 4x16mm low + 4x16mm high Ceiling junction box
Application
Hollow ceiling
Model Number
Single
Number of Conduit Inlets
8
Number of Inlet Inserts Included
0
Design
Central conduit box
Box Type
Single
Cover Mounting Type
Screw
Enclosure Type
Central conduit box
Mounting Type
Hollow ceiling
Nozzle Type
Double Nozzle
Product Type
Central
Switching Equipment Mounting Type
Screw
Shape
Square
Surface Finishing
Untreated
Tube Socket Location
Side
Enclosure Material
Plastic
Material
Plastic
Options Provided
Wiring accessories mounting with screws | Screws | Feed-through via nozzle | Pipe locking optional | 8 Inlets | Cover plate screwed | Double nozzle
Includes
None
Accessories Available
Yes
Color
Blue
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
415d3c29-1c2f-4831-a800-61535a14a61d Netherlands (NL)
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP00
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
70 mm
Product Net Height
58.000 mm
Product Net Depth / Length
110.000 mm
Product Net Weight
0.072 kg
Package Level 1 Units
box 100 piece
Package Level 1 Gross Weight
8.1235 kg
Declaration of Conformity - CE
EU Declaration of Conformity / Ceiling boxes
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
Building Information Modeling – BIM
ABB-BIM-Junction Boxes-Hafobox-165A-Ceiling junction box
ETIM 8
EC002601 - Box/housing for built-in mounting in the wall/ceiling
ETIM 9
EC002601 - Box/housing for built-in mounting in the wall/ceiling
eClass
V11.0 : 27144402
Object Classification Code
Not applicable
Feature: Hollow ceiling mounting and central conduit box design. Business Impact: Simplifies installation in constrained ceiling spaces, reduces wiring complexity, and speeds up early wiring phases. Application: Ideal for hollow ceiling projects where space is at a premium and reliability matters. Feature: Eight conduit inlets with central conduit layout. Business Impact: Increases wiring density while maintaining clean, organized terminations, lowering rework risk. Application: Suitable for compact electrical junctions in control panels and ceiling cavities. Feature: Screw cover mounting and double nozzle options. Business Impact: Provides secure enclosure access and flexible wiring paths, enabling faster inspections and maintenance. Application: Retrofit and new-install scenarios requiring modular wiring paths and easy feed-through. Feature: Plastic enclosure, blue color, and lightweight construction (0.072 kg). Business Impact: Reduces material handling costs, simplifies transport, and minimizes dead load on ceilings. Application: Large-scale installations with numerous boxes or retrofits across facilities. Feature: 8 inlets, wiring accessories mounting with screws, feed-through via nozzle, pipe locking optional. Business Impact: Accelerates pre-install characterization and reduces field assembly time, improving project margins. Application: Environments demanding robust mounting, secure cable routing, and optional pipe lock compatibility. Feature: Certifications and data compatibility (CE, REACH, SCIP, BIM data). Business Impact: Enhances compliance, traceability, and digital-twin integration for project handovers. Application: European projects requiring regulatory alignment and BIM-enabled design workflows.
Get a Quick Quote for a ABB 7110.410
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7110.410?
Enquire Now
FAQs
This product is ideal for hollow ceiling installations where space is limited and wiring density is high. With eight conduit inlets and a central conduit design, it enables organized terminations, fast access, and straightforward maintenance, making it well-suited for retrofit projects and new-builds in industrial environments.
The 7110.410 provides eight conduit inlets. It ships with a screw-cover mounting option and a double-nozzle layout; wiring accessories and additional fittings are available as options. The unit itself does not include additional inserts by default, allowing you to tailor the setup to your specific wiring scheme.
Yes, the product carries a CE Declaration of Conformity. It aligns with REACH regulations and SCIP reporting for materials, supporting regulatory compliance in European projects. BIM data and ETIM/eClass classifications further assist cataloging and interoperability within formal procurement processes.
Mounting options include screw-covered access and a central conduit box layout designed for hollow ceilings. The box supports side nozzle feeding and a double-nozzle configuration, with pipe locking as an optional accessory. This flexibility helps installers route cables efficiently while maintaining secure, accessible terminations.
Using this central conduit box reduces installation time with its straightforward screw-mount setup and eight-inlet design, leading to lower labor costs and faster project throughput. Its durable plastic enclosure and secure mounting minimize field maintenance, easing inspections and reducing downtime during future wiring upgrades or servicing tasks.
