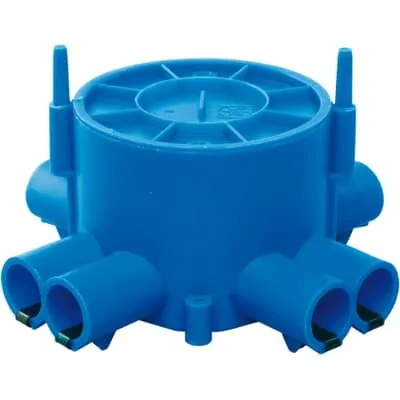

ABB 7111.110 Ceiling Junction Box - Central conduit box, Double Nozzle
Part Number: 7111.110
Quick Summary
ABB 7111.110 Ceiling Junction Box is a central conduit enclosure designed for concrete ceilings, delivering eight conduit inlets and safe access for wiring. For engineers and installers, the challenge is achieving clean routing in tight spaces while maintaining code compliance. This unit provides CE conformity, RoHS compliance, and a REACH declaration, delivering regulatory confidence and safer materials in the field. The blue plastic housing with a screw-mounted cover supports quick, tool-friendly installations, while compatibility with wiring accessories and a double-nozzle design simplifies complex feeder layouts. In short, it helps drive faster project completion, predictable maintenance, and improved procurement predictability for industrial electrical installations.
Product Information
Extended Description
7111.110 ABB: 4x(2x16mm) round Ceiling junction box
Application
Concrete
Model Number
Single
Number of Conduit Inlets
8
Number of Inlet Inserts Included
0
Design
Central conduit box
Box Type
Single
Cover Mounting Type
Screw
Enclosure Type
Central conduit box
Mounting Type
Concrete building
Nozzle Type
Double Nozzle
Product Type
Central
Switching Equipment Mounting Type
Screw
Shape
Round
Side Socket Placement
Equal height side sockets
Surface Finishing
Untreated
Tube Socket Location
Side
Enclosure Material
Plastic
Material
Plastic
Options Provided
Wiring accessories mounting with screws | Screws | Feed-through via nozzle | Pipe locking included | 8 Inlets | Cover plate screwed | Double nozzle
Includes
None
Cover Style
Blind Cover
Color
Blue
Number of Batteries
0
RoHS Information
EU Declaration of Conformity / Gietbouw centraaldoos
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20160420
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP00
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
125 mm
Product Net Height
80.000 mm
Product Net Depth / Length
125.000 mm
Product Net Weight
0.085 kg
Package Level 1 Units
box 100 piece
Package Level 1 Gross Weight
9.751 kg
Declaration of Conformity - CE
EU Declaration of Conformity / Gietbouw centraaldoos
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
Building Information Modeling – BIM
ABB-BIM-Junction Boxes-Hafobox-C55-Ceiling junction box
ETIM 8
EC002601 - Box/housing for built-in mounting in the wall/ceiling
ETIM 9
EC002601 - Box/housing for built-in mounting in the wall/ceiling
eClass
V11.0 : 27144402
Object Classification Code
Not applicable
Feature: Central conduit box design with eight conduit inlets. Business Impact: Simplifies wiring layout in concrete ceilings and reduces installation depth planning. Application: Ideal for overhead power and control wiring in industrial facilities. Feature: 4x(2x16mm) round conduit capacity with equal-height side sockets. Business Impact: Supports common feeder configurations while maintaining balanced aesthetics and consistent spacing. Application: Suitable for multi-circuit installations in control rooms and equipment spaces. Feature: Screw-cover mounting and central enclosure. Business Impact: Facilitates rapid service access and secure closure, lowering maintenance downtime. Application: Replacements or retrofits in busy plant environments. Feature: Double nozzle and feed-through via nozzle. Business Impact: Increases wiring flexibility, enabling clean transitions between conduits without extra fittings. Application: Complex control panel and ceiling-mounted wiring schemes. Feature: Wiring accessories mounting with screws and included pipe locking options. Business Impact: Reduces external hardware purchases and accelerates install cycles. Application: Quick onboarding on new builds or retrofit projects. Feature: Regulatory compliance (CE, RoHS, REACH) and WEEE considerations. Business Impact: Lowers compliance risk and supports audit readiness across supply chains. Application: Procurement for regulated industries and global deployments.
Get a Quick Quote for a ABB 7111.110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7111.110?
Enquire Now
FAQs
This model is designed for concrete building mounting with a screw-covered central enclosure. It supports eight conduit inlets and double-nozzle feed-through, aiding clean routing in tight ceiling spaces. Ensure proper alignment with side sockets and confirm the 125x125x80 mm footprint fits your ceiling cavity before installation.
The box accommodates eight conduits via 4x(2x16mm) round entries, featuring a double nozzle configuration for flexible feed-through. This setup enables parallel routing and reduces the need for additional fittings, improving wiring density in control and power circuits.
Yes. The product carries CE conformity, RoHS and REACH declarations, and WEEE considerations. This supports regulatory compliance for industrial procurement and ensures safer material composition in electrical installations.
Based on the options provided, the box supports wiring accessories mounting with screws and includes feed-through via nozzle plus pipe locking features. A cover plate is screw-mounted, and the arrangement supports fast field wiring without multiple accessory hunts.
Ideal for concrete-building projects requiring reliable overhead wiring for power and control circuits. Its central conduit design, eight inlet capacity, and double-nozzle flexibility suit retrofit work, data/controls installations, and new-build electrical infrastructure in industrial facilities.
