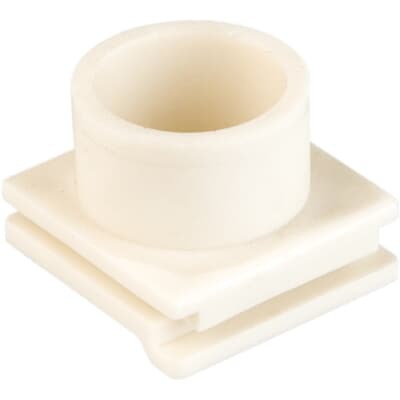

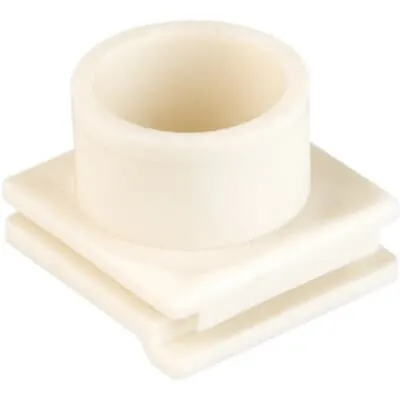

ABB 7118.110 Tube inlet - CE & REACH Compliance
Part Number: 7118.110
Quick Summary
Tube inlet ABB 7118.110 provides a secure cable entry for compact ABB enclosures. This addresses enclosure sealing and cable routing challenges in tight spaces while maintaining regulatory compliance. It carries CE conformity, REACH declarations, and WEEE status alignment to support regulatory compliance in your panel builds. Designed to work with 16 mm tubes and extension rings such as 3514, it reduces installation time and improves lifecycle reliability, helping procurement and maintenance teams streamline sourcing and serviceability.
Product Information
Extended Description
7118.110 ABB: Insert 16mm for extension ring 3514
Suitable For
Tube branch
Number of Conduit Inlets
1
Number of Tubes
1
Accessory Type
Tube inlet
Product Type
Tube inlet
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
25.000 mm
Product Net Height
35.000 mm
Product Net Depth / Length
37.000 mm
Product Net Weight
0.003 kg
Package Level 1 Units
bag 100 piece
Package Level 1 Gross Weight
0.36 kg
Declaration of Conformity - CE
Declaration regarding the REACH - Regulation
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002326 - Cable plug for cable-/installation tube entry
ETIM 9
EC002326 - Cable plug for cable-/installation tube entry
eClass
V11.0 : 27144407
Object Classification Code
Not applicable
Feature → Business Impact → Application: The ABB 7118.110 offers a single conduit inlet for one 16 mm tube, delivering a compact footprint (25 mm width, 35 mm height, 37 mm depth) that saves panel space and simplifies installation in tight electrical cabinets. Benefit: reduced enclosure footprint and faster assembly translates to lower labor costs and higher production throughput in automation projects. Application: Suitable for control panels and junction boxes where a neat, single-entry tube inlet is required for reliable cable management and leak-tight sealing. Feature → Business Impact → Application: CE conformity, REACH declaration, and WEEE status alignment provide regulatory assurance and lower compliance risk across plant sites. Benefit: faster audit readiness and lower risk of non-compliance penalties, enabling smoother OTA updates and change management in electrical infrastructure. Application: Critical for ISO/IEC 17025 and OEM quality programs where traceable declarations support supplier qualification and documentation.
Get a Quick Quote for a ABB 7118.110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7118.110?
Enquire Now
FAQs
To install, position the inlet at the enclosure wall opening, align the conduit inlet with the 16 mm tube, and secure with the standard mounting method. Ensure the area around the inlet remains sealed to maintain enclosure integrity. The unit is designed for one tube and one conduit, simplifying installation steps and reducing entry points for dust or moisture.
Key specs include a single conduit inlet for one 16 mm tube, with product net dimensions of 25 mm width, 35 mm height, and 37 mm depth, and a net weight of 0.003 kg. Packaging is bag-level, with 100 pieces per box, facilitating bulk procurement for assemblies and spares.
Yes. The tube inlet carries a CE conformity declaration, REACH declaration (ABB BV, Ede), and is aligned with WEEE category guidance indicating it is not in WEEE scope. These declarations support regulatory compliance across European manufacturing sites and supplier qualification processes.
Yes, the product description notes compatibility with extension rings such as 3514, enabling 16 mm tube extensions. This provides installation flexibility in cabinets where extended routing or additional buffering is needed without introducing new components or multi-part assemblies.
The 7118.110 offers space-efficient, one-tube entry suitable for compact ABB enclosures, with straightforward installation and strong regulatory compliance. It ships in bulk packaging (bag, 100 pieces) to support procurement efficiency, reduce stocking complexity, and lower unit costs for OEMs and service teams managing multiple enclosures.
