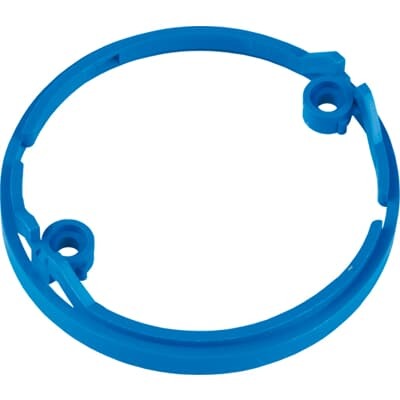

ABB 7119.220 Extension Ring - Plaster compensation ring
Part Number: 7119.220
Quick Summary
ABB 7119.220 Extension Ring is a flush-mounting accessory for central conduit boxes used in ceiling junctions. Installers often face gaps and misalignment when mounting ceiling boxes, which can extend project timelines and compromise wiring access. This plaster compensation ring provides 6 mm of compensation and a compact round profile, simplifying alignment against ceiling surfaces. It aligns with REACH and CMRT requirements and is supported by a CE conformity declaration, helping engineers meet regulatory expectations. By delivering a consistent, flush finish, the extension ring reduces rework, improves finish quality, and speeds up panel installs, while remaining compatible with common central conduit boxes and plaster rings in industrial installations.
Product Information
Extended Description
7119.220 ABB: Compensation ring 6mm, round, stackeble for ceiling junction box
Application
Central conduit box
Suitable For
Flush mounted ceiling junction boxes
Accessory Type
Extension Ring
Mounting Type
Flush mounting
Product Type
Raising ring
Shape
Round
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
50.000 mm
Product Net Height
35.000 mm
Product Net Depth / Length
50.000 mm
Product Net Weight
0.006 kg
Package Level 1 Units
bag 50 piece
Package Level 1 Gross Weight
0.36 kg
Declaration of Conformity - CE
Declaration regarding the REACH - Regulation
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC000115 - Plaster compensation ring
ETIM 9
EC000115 - Plaster compensation ring
eClass
V11.0 : 27144411
Object Classification Code
Not applicable
Feature: 6 mm plaster compensation ring provides additional adjustment for imperfect ceilings. Benefit: Improves alignment and reduces installation rework, shortening project timelines in retrofit and new-build ceiling installations. Application: Central conduit boxes in flush-mounted ceiling junctions. Feature: Compact round form with 50 mm width and 50 mm depth, plus 35 mm height. Benefit: Fits tight service spaces and simplifies routing in constrained plant spaces. Application: Ceiling junction box accessories for industrial enclosures. Feature: Flush mounting capability. Benefit: Delivers a clean, professional finish and reduces gaps that collect dust or moisture. Application: Ceiling and wall penetrations in electrical infrastructure. Feature: Lightweight construction at 0.006 kg per unit, with bag packaging of 50 pieces (0.36 kg gross per bag). Benefit: Easier handling, lower shipping costs, and streamlined bulk procurement. Application: Stocking and reorder processes for maintenance teams and OEMs. Feature: Compliance and classification details (REACH, CMRT, ETIM/ eClass). Benefit: Mitigates regulatory risk and supports supplier data requirements for audits. Application: Quality management, supplier qualification, and compliance documentation for modular enclosure projects.
Get a Quick Quote for a ABB 7119.220
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7119.220?
Enquire Now
FAQs
Check that your installation uses a central conduit box with a flush mounting requirement for ceiling junctions. The 7119.220 is a round plaster compensation ring with 50x50x35 mm overall footprint and 6 mm compensation, designed for flush mounting. It aligns with typical junction box interfaces and plaster ring assemblies, ensuring a seamless fit and minimal modification on site.
The extension ring has a product net width of 50.000 mm, net height of 35.000 mm, and net depth/length of 50.000 mm. The unit weight is 0.006 kg. Packaging is bagged in sets of 50 pieces with a total gross weight of 0.36 kg per bag, facilitating bulk ordering and inventory planning.
Yes. The product carries REACH declarations from ABB BV, Ede and a CE conformity statement. It is also associated with Conflict Minerals Reporting Template (CMRT) and falls under ETIM 8/9 classification for plaster compensation rings, supporting regulatory compliance and supplier qualification in regulated projects.
The 6 mm plaster compensation provides rapid alignment against ceiling surfaces, reducing gaps and rework. Its flush mounting design minimizes surface protrusion and simplifies cable routing, enabling faster approvals and fewer adjustments during ceiling box installations in industrial spaces.
Each unit ships in a bag containing 50 pieces, with a bag gross weight of 0.36 kg. The extension ring is suitable for bulk procurement in maintenance schedules and OEM projects, with consistent dimensions (50x50x35 mm) and a light 0.006 kg per piece, aiding warehouse handling and stock control.
