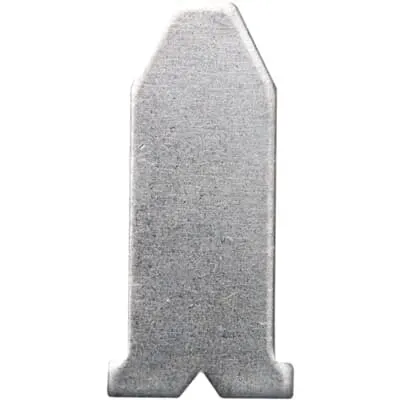

ABB 7119.310 Mounting cramp - Double branch locking device
Part Number: 7119.310
Quick Summary
Mounting cramp for ABB 7119.310 provides secure tube locking in junction boxes for electrical enclosures. Installers often struggle with wobble and misalignment in tight panels, leading to time-consuming adjustments and unreliable seals; this wedge design delivers precise seating and fast, outage-free assembly. The solution carries CE conformity, REACH declaration, and ETIM classification, ensuring regulatory compliance and streamlined cataloging in procurement systems. By reducing installation time and delivering a dependable lock, it lowers field labor costs and supports scalable, compliant enclosure programs across industrial environments.
Product Information
Extended Description
7119.310 ABB: Wedge for tube locking in double inlets, 16 mm and 19 mm.
Model Number
Single nozzle
Accessory Type
Mounting cramp
Product Type
Locking device
Shape
Double branch
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
10.000 mm
Product Net Height
2.000 mm
Product Net Depth / Length
35.000 mm
Product Net Weight
0.003 kg
Package Level 1 Units
bag 200 piece
Package Level 1 Gross Weight
0.66 kg
Declaration of Conformity - CE
Declaration regarding the REACH - Regulation
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002362 - Mounting cramp for junction boxes
ETIM 9
EC002362 - Mounting cramp for junction boxes
eClass
V11.0 : 27144415
Object Classification Code
Not applicable
Feature: Double-branch locking geometry enables stable, two-point engagement of tubes. Business Impact: Reduces movement and leakage risk, improving enclosure integrity and minimizing rework. Application: Ideal for junction boxes with 16 mm and 19 mm inlet tubes in control panels. Feature: Wedge-type locking mechanism provides quick, tool-free installation. Business Impact: Accelerates commissioning and lowers on-site labor costs while preserving secure retention. Application: Suitable for high-throughput panel builds in manufacturing settings. Feature: Complete REACH compliance with Declaration of Conformity and a non-detect profile (>0.1 mass% substances). Business Impact: Lowers regulatory risk and simplifies supplier audits. Application: Essential for global deployments in harsh industrial environments. Feature: ETIM and eClass classifications (EC002362, V11.0 27144415) support accurate procurement and cataloging. Business Impact: Improves parts routing, reduces mispicks, and shortens time-to-order. Application: Fits standard ABB junction box inventories and ERP integrations. Feature: Small footprint (10.000 mm W Ă— 2.000 mm H Ă— 35.000 mm D) and light weight (0.003 kg). Business Impact: Conserves space inside compact enclosures and lowers overall panel weight. Application: Compliant with space-constrained electrical infrastructure projects. Feature: Packaging at bag level (200 piece per Level 1 unit) and total weight per carton (0.66 kg) enable efficient stocking. Business Impact: Decreases warehousing costs and improves bulk ordering efficiency. Application: Beneficial for high-volume OEM and contractor orders.
Get a Quick Quote for a ABB 7119.310
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7119.310?
Enquire Now
FAQs
To install, align the wedge with the 16 mm and 19 mm inlet tubes, insert into the double inlet, and engage the locking mechanism until your panels sit firmly. The design supports quick, tool-free seating, reducing assembly time while maintaining a secure lock under vibration conditions common in industrial environments.
The wedge is designed for double inlet applications using 16 mm and 19 mm tubes. This enables reliable locking across common junction box configurations, improving installation consistency and reducing the need for additional adapters or fiddling during assembly.
Yes. The mounting cramp features CE conformity and a REACH declaration. It also provides traceable compliance information, including a REACH date of 20230911 and related environmental declarations, simplifying regulatory audits and supplier qualification.
The product has a net width of 10.000 mm, height of 2.000 mm, and depth of 35.000 mm, with a net weight of 0.003 kg. Its compact form supports dense layouts inside electrical enclosures and minimizes space intrusion during installation.
Packaging is Level 1 units in bags of 200 pieces, with a gross weight of 0.66 kg per bag. This arrangement supports efficient stocking for high-volume OEM builds and reduces unit handling in procurement workflows.
