ABB 7126.120 Junction Box - CE RoHS
Part Number: 7126.120
Quick Summary

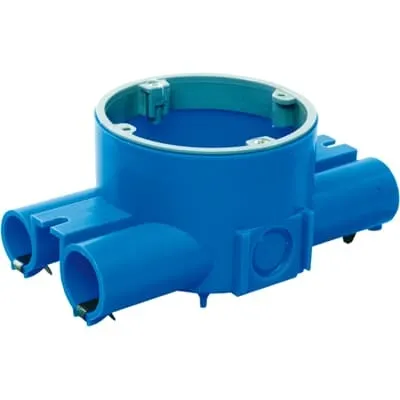

ABB 7126.120 Junction Box is a hollow-wall enclosure designed to house a single electrical fitting in hollow-wall installations. This compact solution helps avoid exposed wiring and misalignment when retrofitting in limited wall cavities. It carries CE and RoHS declarations, along with REACH compliance, and aligns with ABB’s EU Declaration of Conformity for hollow-wall boxes HW50-G. By combining a tough plastic enclosure with a screw-based mounting and a snap-on cover plate, it delivers reliable, fast installation while maintaining regulatory compliance. For project teams and maintenance crews, the box offers predictable performance, easy accessory compatibility (revolving ring, feed-through via nozzle, and double nozzle options), and consistent quality across installs.
Product Information
Extended Description
7126.120 ABB: 50mm 1x16+1x19mm, drill size 76mm Hollow wall junction box
Application
Hollow wall
Suitable For
1 electric fitting
Model Number
Single
Number of Conduit Inlets
1
Number of Gangs
1
Number of Inlet Inserts Included
0
Design
Inbouwdoos/verbindingsdoos (rond/vierkant)
Box Type
Single
Cover Mounting Type
Snap On
Enclosure Type
Built-in installation box
Mounting Type
Hollow wall
Nozzle Type
Double Nozzle
Product Type
Flushmounted tube
Switching Equipment Mounting Type
Screw
Shape
Round
Surface Finishing
Untreated
Enclosure Material
Plastic
Material
Plastic
Options Provided
Revolving ring | Connectable | Feed-through via nozzle | Pipe locking included | 1 Inlet | Snap on cover plate | Double nozzle
Includes
None
Accessories Available
Yes
Color
Blue
Number of Batteries
0
RoHS Information
EU Declaration of Conformity Hollow wall boxes - HW50-G
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240330
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP00
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
70 mm
Product Net Height
55.000 mm
Product Net Depth / Length
120.000 mm
Product Net Weight
0.052 kg
Package Level 1 Units
box 100 piece
Package Level 1 Gross Weight
6.3 kg
Declaration of Conformity - CE
EU Declaration of Conformity Hollow wall boxes - HW50-G
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
Building Information Modeling – BIM
ABB-BIM-Junction Boxes-Hafobox-HW50-G-Hollow wall junction box
ETIM 8
EC002601 - Box/housing for built-in mounting in the wall/ceiling
ETIM 9
EC002601 - Box/housing for built-in mounting in the wall/ceiling
eClass
V11.0 : 27144402
Object Classification Code
Not applicable
Feature: Hollow-wall design with 1 conduit inlet and 1 gang. Business Impact: Streamlines cavity planning and reduces wall intrusion, speeding retrofit projects. Application: Ideal for mounting a single electrical fitting behind interior walls with clean routing. Feature: Snap-on cover and screw mounting for switching equipment. Business Impact: Quick access and secure mounting cut labor time and field errors. Application: Suitable for hollow-wall installations needing reliable, long-term connections with minimal maintenance. Feature: Plastic enclosure in blue with IP00 noted. Business Impact: Lightweight, non-corrosive housing suitable for indoor environments while enabling easy identification. Application: Internal electrical installations where a visible, compact box is beneficial. Feature: Compact dimensions 70 Ă— 55 Ă— 120 mm and weight 0.052 kg. Business Impact: Minimal wall intrusion while maintaining enough space for a single fitting. Application: Retrofit and new-build projects in restricted cavities. Feature: Extensive accessory options including revolving ring, feed-through via nozzle, pipe locking, 1 inlet, and double nozzle. Business Impact: Reduces parts diversity and speeds configuration for different fitting layouts. Application: Works with ABB accessories for tailored installations and faster commissioning.
Get a Quick Quote for a ABB 7126.120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7126.120?
Enquire Now
FAQs
ABB 7126.120 is designed for hollow-wall installations, providing a compact single-gang enclosure to house a single electrical fitting behind walls. With a 1 conduit inlet and double nozzle, it supports clean routing and easy access via the snap-on cover, making retrofits efficient and predictable in confined spaces.
The box carries a CE declaration of conformity, RoHS compliance under EU directive 2011/65/EU with amendment 2015/863, and a REACH declaration. It is categorized for safe indoor use with IP00 protection, and ABB’s documented conformity supports regulatory acceptability for hollow-wall installations.
Yes. It supports options such as revolving rings, connectable components, feed-through via nozzle, pipe locking, and includes a 1 inlet plus double nozzle configuration. A snap-on cover plate enhances installation speed and allows flexible accessory integration with ABB systems.
Product net dimensions are 70 mm in width, 55 mm in height, and 120 mm in depth, with a net weight of 0.052 kg. Packaging per box is 100 pieces, and the box weight is 6.3 kg per package, facilitating efficient bulk handling and shipping.
It offers a compact, lightweight plastic enclosure with snap-on cover and screw mounting for switching equipment, plus access to ABB-compatible accessories. The design supports fast installation, regulatory compliance (CE/RoHS/REACH), and predictable performance across retrofits and new installations, reducing labor costs and project risk.
