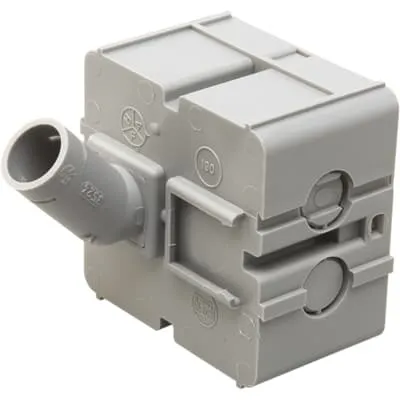

ABB 7126.310 Junction Box - Facing Brickwork IP00
Part Number: 7126.310
Quick Summary
ABB 7126.310 Junction Box is a wall-mounted enclosure designed for facing brickwork installations. Installers often struggle with secure mounting and clean cable entry when brickwork is uneven. This unit provides CE conformity, RoHS compliance, and REACH declarations for regulatory assurance in commercial builds. With a built-in installation box design, snap-on cover, and rear-entry options, it streamlines brick-wall wiring while preserving access to a single electric fitting. The result is faster, more reliable installations, reduced field adjustments, and improved overall project efficiency for brickwork electrical fittings.
Product Information
Extended Description
7126.310 ABB: 1x16mm/45°, for facing brickwork Wall junction box
Application
Brick
Suitable For
1 electric fitting
Model Number
Single
Number of Conduit Inlets
1
Number of Gangs
1
Number of Inlet Inserts Included
0
Design
Built-in installation box (device box)
Box Type
Single
Cover Mounting Type
Snap On
Cover Plate Type
Non Transparent
Enclosure Type
Device connection box
Mounting Type
Facing brickwork
Nozzle Type
Tunnel Branch Pipe
Product Type
Flushmounted tube
Switching Equipment Mounting Type
Screw
Shape
Square
Surface Finishing
Untreated
Tube Socket Location
Back
Enclosure Material
Plastic
Material
Plastic
Options Provided
Connectable | Feed-through via nozzle | Pipe locking optional | Inlet from the rear | 1 Inlet | Snap on cover plate | Tunnel nozzle
Includes
None
Accessories Available
Yes
Cover Style
Blind Cover
Color
Grey
Number of Batteries
0
RoHS Information
EU Declaration of Conformity / Inbouwdozen voor schoonmetselwerk HAFOBOX
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20160420
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP00
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
71 mm
Product Net Height
48.000 mm
Product Net Depth / Length
119.000 mm
Product Net Weight
0.048 kg
Package Level 1 Units
box 100 piece
Package Level 1 Gross Weight
5.9 kg
Declaration of Conformity - CE
EU Declaration of Conformity / Inbouwdozen voor schoonmetselwerk HAFOBOX
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
Building Information Modeling – BIM
ABB-BIM-Junction Boxes-Hafobox-190-Wall junction box
ETIM 8
EC002601 - Box/housing for built-in mounting in the wall/ceiling
ETIM 9
EC002601 - Box/housing for built-in mounting in the wall/ceiling
eClass
V11.0 : 27144402
Object Classification Code
Not applicable
Feature: Built-in installation box (device box) with a single gang and 1 conduit inlet. Business Impact: Simplifies mounting on brick surfaces, reducing alignment errors and on-site time. Application: Ideal for brick-wall installations requiring a compact, secure device box for one electric fitting. Feature: Front and rear inlet versatility with a tunnel nozzle option. Business Impact: Enables flexible cable routing in tight brick cavities and retrofit projects without excessive dismantling. Application: Suitable for facing brickwork where rear-entry wiring is preferred or required by the installation layout. Feature: Snap-on cover and non-transparent cover plate. Business Impact: Provides quick access for maintenance while protecting conductors, improving uptime and safety. Application: Regularly serviced junctions in industrial brickwork environments. Feature: Plastic enclosure with square design and IP00 protection. Business Impact: Lightweight, cost-efficient housing that is easy to handle on-site and reduces material costs; predictable performance in indoor facilities. Application: Wall-mounted junctions inside factories and warehouses. Feature: 1 inlet, 1 conduit inlet, and compatibility with 1 electric fitting. Business Impact: Streamlines circuit provisioning and minimizes material variance, supporting faster project completion and predictable procurement. Application: Standardized brickwork installations across multiple sites.
Get a Quick Quote for a ABB 7126.310
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7126.310?
Enquire Now
FAQs
To install ABB 7126.310, position the box flush with the brick surface, align the conduit inlet, and secure the device box using appropriate anchors for brick. The snap-on cover simplifies panel access, while rear-entry capability allows flexible cable routing. Ensure the enclosure remains IP00 protected from direct exposure and conduct wiring per local codes.
The unit is designed for 1 electrical fitting, with 1 conduit inlet and 1 gang configuration. It features a built-in installation box, a tunnel nozzle option for feed-through, and a screw-based mounting system. The enclosure is plastic, grey, and complies with RoHS and REACH requirements, ensuring regulatory alignment in european installations.
Yes. The box supports rear-entry with a tunnel nozzle configuration and a single inlet, enabling flexible wiring paths behind facing brickwork. This is especially useful in retrofits or tight-wall installations where front-entry space is limited, while still retaining a secure snap-on cover for maintenance access.
ABB 7126.310 carries CE conformity, RoHS compliance under EU Directive 2011/65/EU, and a REACH declaration. It references the EU Declaration of Conformity and related ABB industry documentation, ensuring regulatory compliance for European markets and alignment with BIM and WEEE considerations.
The box reduces installation time through a built-in device box and snap-on cover, minimizes wiring errors with a single conduit inlet, and lowers maintenance costs via quick access ports. The combination of regulatory compliance and modular rear-entry capability also supports faster project turnover and fewer on-site reworks, improving overall return on investment.
