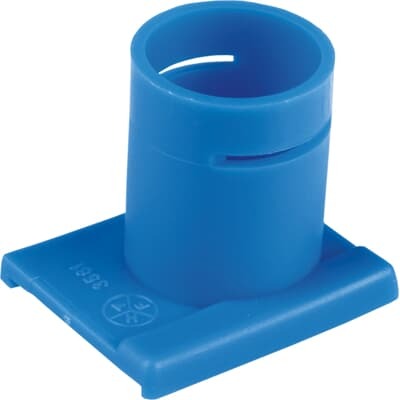

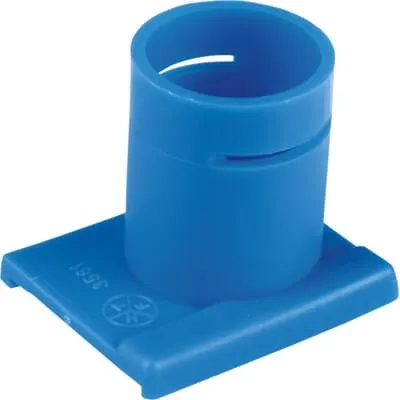

ABB 7128.170 Tube inlet for H-type boxes - CE
Part Number: 7128.170
Quick Summary
ABB 7128.170 Tube inlet is a compact conduit entry accessory designed for flush-mounted brick wall junction boxes. For engineers facing cramped installations and variable wall finishes, it minimizes misalignment and simplifies the seal at the wall interface. This accessory carries CE conformity with REACH declarations and CMRT documentation, reinforcing regulatory compliance across European supply chains. By leveraging a 19 mm insert and a single conduit inlet, it streamlines hardware selection and reduces field variability. When used with ABB or compatible enclosures, it speeds setups, improves reliability, and lowers total cost of ownership over the life of control panels and electrical installations.
Product Information
Extended Description
7128.170 ABB: Insert 1 x 19mm for H-type boxes
Suitable For
Flush mounted brick wall junction boxes
Number of Conduit Inlets
1
Number of Tubes
1
Accessory Type
Tube inlet
Product Type
Tube inlet
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
37.000 mm
Product Net Height
35.000 mm
Product Net Depth / Length
50.000 mm
Product Net Weight
0.008 kg
Package Level 1 Units
bag 50 piece
Package Level 1 Gross Weight
0.46 kg
Declaration of Conformity - CE
Declaration regarding the REACH - Regulation
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002326 - Cable plug for cable-/installation tube entry
ETIM 9
EC002326 - Cable plug for cable-/installation tube entry
eClass
V11.0 : 27144407
Object Classification Code
Not applicable
Feature: 1 conduit inlet aligns with single-tube entry. Business Impact: Reduces installation time and field adjustments, lowering labor costs and risk of air gaps or misaligned entries. Application: Ideal for single-tube entry in H-type boxes and similar flush-mounted installations. Feature: 19 mm insert for precise cable entry. Business Impact: Standardizes cable routing, minimizing rework and enabling faster panel assembly. Application: Fits 1 x 19 mm tube insert for predictable runs in brick-wall boxes. Feature: Flush-mounted compatibility with brick wall junction boxes. Business Impact: Enables clean, secure mounting in tight spaces, improving enclosure aesthetics and protection. Application: Retrofit or new build where wall access is limited. Feature: Certifications and declarations (CE, REACH, CMRT). Business Impact: Mitigates regulatory risk and supports supplier compliance programs. Application: Essential for European projects and audits. Feature: Lightweight, compact geometry (37x35x50 mm, 0.008 kg). Business Impact: Easy handling, low inventory burden, and scalable packaging (bag 50 pieces). Application: High-volume assembly lines and panel shops. Feature: ETIM 8/9 and eClass classifications for cataloging. Business Impact: Improves supplier data quality and enables seamless integration with procurement systems. Application: Product listings and e-commerce integrations.
Get a Quick Quote for a ABB 7128.170
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7128.170?
Enquire Now
FAQs
To install, verify you have a flush-mounted brick wall junction box, prepare the knockout opening for a 19 mm insert, and insert the tube inlet into the designated port. Secure with the included fittings, ensuring a flush seal. The unit supports a single conduit inlet and a single tube for reliable cable entry in ABB and compatible enclosures.
Yes. The ABB 7128.170 Tube inlet is designed specifically for flush-mounted brick wall junction boxes, providing a single conduit inlet and a 19 mm tube entry. Its dimensions and mounting geometry align with standard brick-wall enclosures, enabling quick retrofits or new installations with minimal accessory variation.
The accessory carries a CE declaration, REACH information, and CMRT documentation, supporting regulatory compliance. It is designed to meet European market requirements and offers documentation for sustainability reporting, supply chain audits, and customer compliance programs.
The tube inlet measures 37.000 mm in width, 35.000 mm in height, and 50.000 mm in depth, with a product net weight of 0.008 kg per unit. Packaging comprises bags of 50 pieces, with a gross weight of 0.46 kg per bag, suitable for high-volume production lines.
Using this tube inlet standardizes cable entry for single-tube runs, reducing assembly time and field errors. Its CE/REACH/CMRT compliance supports audits and regulatory adherence, while its compact form and lightweight design simplify inventory and installation in dense control panels and electrical enclosures.
