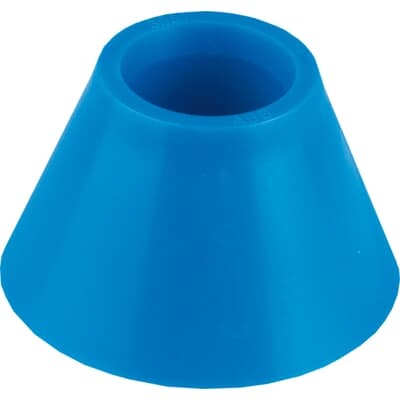

ABB 7173.110 Cone for Tube - Concrete Construction CE
Part Number: 7173.110
Quick Summary
ABB 7173.110 Cone for Tube is a recessed cone for concrete construction, guiding cables through tube entries. Installers often struggle with secure cable termination and durability in concrete, leading to rework and risk. The product carries CE conformity, RoHS compliance under EU directives, and REACH declarations, with BIM-ready data to streamline design. Compatibility with ABB BIM catalogs and ETIM/ eClass classifications supports faster procurement, installation planning, and consistent field results. Its compact dimensions and lightweight profile simplify cavity access, while the 49 mm width and 75 mm depth fit standard concrete entries. Packaged in bags of 100 units, it keeps on-site logistics simple and reduces stocking complexity.
Product Information
Extended Description
7173.110 ABB: Cone for tube 16mm Concrete construction
Application
Concrete
Model Number
Straight
Accessory Type
Cone for tube
Product Type
Recess cone
Number of Batteries
0
RoHS Information
EU Declaration of Conformity Cones
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240326
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
49.000 mm
Product Net Height
30.000 mm
Product Net Depth / Length
75.000 mm
Product Net Weight
0.014 kg
Package Level 1 Units
bag 100 piece
Package Level 1 Gross Weight
1.46 kg
Declaration of Conformity - CE
EU Declaration of Conformity Cones
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
Building Information Modeling – BIM
ABB-BIM-Cable Boxes-Hafobox-3550-Cone 16mm for concrete construction Blue
ETIM 8
EC001795 - Wall-ceiling transition for concrete construction
ETIM 9
EC001795 - Wall-ceiling transition for concrete construction
eClass
V11.0 : 27144413
Object Classification Code
Not applicable
Feature: Designed for a 16 mm tube in concrete construction. Business Impact: Ensures secure cable routing with minimal risk of misalignment, reducing field rework and installation time. Application: Suitable for new-build and retrofit penetrations in concrete structures. The streamlined geometry supports quick alignment during plastering and finishing stages, improving overall site productivity. Feature: RoHS and REACH compliance with clear declarations. Business Impact: Lowers regulatory risk on European projects and simplifies supplier qualification. Application: Procurement for multi-site programs that require standard-compliant components. Feature: Compact footprint and light weight (49 mm W x 30 mm H x 75 mm D; 0.014 kg). Business Impact: Easier handling, reduced freight costs, and faster on-site deployment. Application: Ideal for tight cavities and overhead installations where space is constrained. Feature: BIM data and ETIM/eClass alignment. Business Impact: Accelerates design-to-install workflows, reduces model edits, and enhances procurement accuracy. Application: Integration into BIM models and catalog-driven purchasing. Feature: Simple, non-electrical accessory with no battery requirement. Business Impact: Higher reliability in harsh environments and lower maintenance. Application: Durable addition for concrete penetrations in harsh construction sites.
Get a Quick Quote for a ABB 7173.110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7173.110?
Enquire Now
FAQs
The cone is a recessed cone designed to fit a 16 mm tube in concrete. For installation, align the cone with the tube entry, ensure clean cavity dimensions (49 mm wide, 75 mm deep), and snugly seat the cone to guide cables without protrusion. Use compatible sealing methods per project specs to maintain concrete integrity and protect routed cables.
Key specs include Application: Concrete; Model Number: Straight; Accessory Type: Cone for tube; Product Type: Recess cone; Product Net Width: 49.000 mm; Product Net Height: 30.000 mm; Product Net Depth: 75.000 mm; Product Net Weight: 0.014 kg; Package Level 1 Units: bag 100 piece; RoHS/REACH declarations and WEEE status are documented for compliance.
Yes. The cone carries RoHS information aligned with EU Directive 2011/65/EU and its amendment 2015/863, with a RoHS date of 20240326, and it includes REACH declarations indicating no substances above 0.1 mass percentage. It also aligns with the EU CE Declaration of Conformity for reliable regulatory compliance.
This recessed cone is designed for concrete construction applications involving 16 mm tubes, enabling safe and efficient cable routing through concrete walls or floors. It is well-suited for electrical infrastructure penetrations in new builds and retrofits, particularly where BIM data integration and ETIM/eClass classifications streamline procurement and design workflows.
Yes. The product includes BIM-ready data (ABB BIM data) and is classified under ETIM 8/9 as EC001795 for concrete wall-ceiling transitions, plus eClass 27144413. This supports model-based design, accurate part selection, and faster purchasing cycles through catalog-driven workflows.
