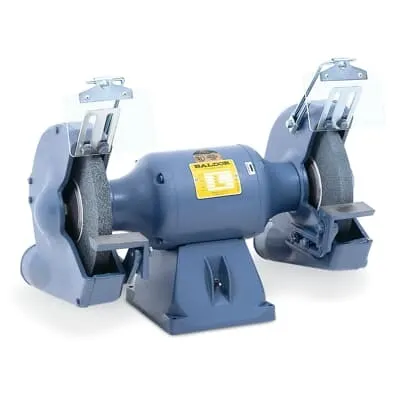

ABB 7B1021W Grinders/Buffers/Lathes/Belt Sander - CSA Certified
Part Number: 7B1021W
Quick Summary
ABB 7B1021W is a 3-phase grinder designed for heavy-duty grinding, buffing, and surface finishing in industrial settings. This compact, foot-mounted unit delivers consistent speed under continuous duty, reducing process variability and maintenance downtime. For engineers and procurement teams, the challenge is reliable performance in harsh environments; the 7B1021W meets that with a TENV enclosure, steel frame, and dual-voltage capability. With CSA certification and UL/CSA listings, it aligns with regulatory expectations while enabling easier commissioning. The result is improved throughput and predictable labor costs, supported by ready availability from multiple warehouses and straightforward installation across shop floors.
Product Information
Extended Description
7B1021W ABB: 28M 4P GRNDR
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
28M 4P GRNDR
Ambient Temperature
40 °C
Brand / Label
Baldor-Reliance®
Catalog Number
1021W
Certification Agency
CSA
Country of Origin
United States (US)
Customs Tariff Number
8460908020
Dimension Diagram
G0LY0163: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
50 Hz | 60 Hz
Global Commercial Alias
1021W
Gross Volume
8416.408 in³
Gross Weight
134 lb
Horsepower Rating UL/CSA
1.500 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
B
Invoice Description
28M 4P GRNDR
Made To Order
No
Medium Description
3 Phase, TENV Enclosure, (1021W)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Mounting Orientation
Horizontal
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.50 Hp
Product Name
Grinders/Buffers/Lathes/Belt Sander
Product Net Depth / Length
27.438 in
Product Net Height
16.75 in
Product Net Weight
134 lb
Product Net Width
18.313 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 4.4 A | 2.2 A
Rated Speed
1500 r/min | 1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
3 PH, TENV,
Standards
Other
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min | 1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
208 V | 230 V | 460 V
Feature: TENV enclosure protects the windings and internal components from dust, oil and heat buildup. Business Impact: Prolonged motor life and lower maintenance costs in demanding metalworking environments. Application: Ideal for continuous-running grinding and finishing in foundries and fabrication shops. Feature: Steel frame and 134 lb robust construction. Business Impact: Enhanced vibration resistance and longer service life, reducing downtime and replacement parts. Application: Suitable for retrofit or new-line installations in busy manufacturing plants. Feature: Flexible voltage rating (208/230/460 V) for 3-phase power. Business Impact: Simplifies electrical design and stock management, enabling one SKU to serve multiple facilities. Application: Fits varied plant electrical distributions without special transformers. Feature: 4-pole, 1500/1800 r/min performance. Business Impact: Dual-speed capability supports different finishing tasks, improving process control and surface quality. Application: Use 1500 r/min for fine work and 1800 r/min when more material removal is required. Feature: Direct on line starting. Business Impact: Minimal control hardware and faster startup sequences, reducing installation time and commissioning risk. Application: Integrates easily into existing control schemes and maintenance routines. Feature: CSA certification and UL/CSA rating. Business Impact: Compliance with regulatory standards, smoother audits, and safer operation. Application: Suitable for regulated industries and commissioning on customer sites. Feature: Ready availability and stock across multiple warehouses. Business Impact: Shorter lead times, improved project scheduling, and reduced expediting costs. Application: Ideal for long-term maintenance contracts and large-scale rollouts in manufacturing networks.
