ABB 7B1216W Motor - 3HP, 1500/1800RPM, CSA/UR
Part Number: 7B1216W
Quick Summary
ABB 7B1216W motor delivers reliable 3HP power for general purpose drives in manufacturing and material-handling equipment. Engineers often face downtime when enclosure, mounting, or start-up characteristics don’t align with existing lines. This model carries CSA and UR certifications, plus UL/CSA horsepower labeling, and a rugged TENV enclosure that stands up to dusty shop-floor conditions. With 208/230/460 V three-phase capability and a foot-mounted, horizontal design, installation is straightforward and scalable across multiple production lines. In business terms, you gain faster uptime, easier procurement, and long-term reliability from a motor built for continuous duty across diverse industrial environments.
Product Information
Extended Description
7B1216W ABB: 3HP,1500/1800RPM,3PH,50/60HZ,3628M,GRND
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1500/1800RPM,3PH,50/60HZ,3628M,
Ambient Temperature
40 °C
Brand / Label
Baldor-Reliance®
Catalog Number
1216W
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
8460908020
Dimension Diagram
G2LY0118: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
50 Hz | 60 Hz
Global Commercial Alias
1216W
Gross Volume
21929.457 in³
Gross Weight
248 lb
Horsepower Rating UL/CSA
3.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
B
Invoice Description
3HP,1500/1800RPM,3PH,50/60HZ,3628M,GRND
Made To Order
No
Medium Description
3 Phase, TENV Enclosure, (1216W)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Mounting Orientation
Horizontal
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp

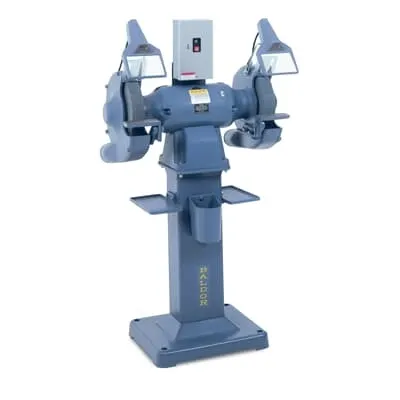

Product Name
Grinders/Buffers/Lathes/Belt Sander
Product Net Depth / Length
41.313 in
Product Net Height
28.5 in
Product Net Weight
248 lb
Product Net Width
18.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8 A | 7.4 A | 3.7 A
Rated Speed
1500 r/min | 1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.25 in
Short Description
3 PH, TENV,
Standards
Other
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min | 1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
208 V | 230 V | 460 V
Dual-speed capability provides 1500 r/min or 1800 r/min operation, allowing the motor to match machine torque curves and belt speeds. The business impact is improved efficiency and reduced wear, delivering smoother starts and lower energy waste on conveyors, grinders, and small machine tools. The enclosure is Totally Enclosed, Non-Ventilated (TENV), protecting internal components in dusty environments and simplifying maintenance schedules, which translates to higher Overall Equipment Effectiveness (OEE) and fewer unplanned outages. Foot-mounted, horizontal mounting simplifies installation, reduces alignment issues, and supports quick swaps in retrofit projects. The 3-phase 208/230/460 V rating paired with direct-on-line starting minimizes control complexity and enables rapid commissioning in both new builds and line expansions. A robust steel frame, 4-pole operation, and 1.25 in shaft diameter enhance durability, reducing lifecycle costs in high-use shop floors. Industry-standard dimensions and a dimension sheet (G2LY0118) ease replacement and spares planning, improving procurement agility. This motor’s compatibility with a range of grinders, buffers, lathes, and belt sanders makes it a dependable choice for mid-size manufacturing lines, aligning with lean manufacturing objectives and predictable maintenance budgets.
