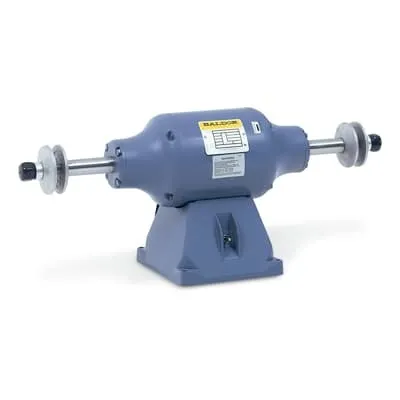

ABB 7B1251 Motor - 2HP 1PH 60Hz, TENV Enclosure, UR
Part Number: 7B1251
Quick Summary
ABB 7B1251 motor is a compact 2HP single-phase electric motor designed for 60 Hz industrial and workshop use, including grinders, buffers, and light lathes. The design emphasizes reliable start-up and steady torque in demanding shop environments. Engineers often struggle with downtime caused by mismatched voltage and enclosure exposure; this unit supports both 115 V and 230 V operation and features a durable TENV enclosure to protect internal components. It carries UR certification and US-origin manufacturing, with a 0-day lead time and stock available at multiple warehouses for rapid fulfillment. By combining rugged construction with straightforward installation, this motor helps minimize downtime and improve overall equipment effectiveness for metalworking applications.
Product Information
Extended Description
7B1251 ABB: 2HP,3600RPM,1PH,60HZ,3634L,BUFF
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3600RPM,1PH,60HZ,3634L,BUFF
Ambient Temperature
40 °C
Brand / Label
Baldor-Reliance®
Catalog Number
1251
Certification Agency
UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
G2LY0120: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
1251
Gross Volume
0 in³
Gross Weight
160 lb
Horsepower Rating UL/CSA
2.000 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
B
Invoice Description
2HP,3600RPM,1PH,60HZ,3634L,BUFF
Made To Order
No
Medium Description
1 Phase, TENV Enclosure, (1251)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Mounting Orientation
Horizontal
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Product Name
Grinders/Buffers/Lathes/Belt Sander
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
160 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
21 A | 10.5 A
Rated Speed
3600 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.25 in
Short Description
1 PH, TENV,
Standards
Other
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Dual voltage capability 115/230V reduces wiring errors and broadens compatibility with existing power systems, delivering faster retrofits for belt grinders and buffing machines. The 2HP, single-phase performance translates to predictable startup torque and steady running speeds, improving process stability and reducing idle time in small machining cells. A TENV enclosure protects the windings from dust, splashes, and heat, enabling reliable operation on shop floors without heavy enclosure maintenance. Foot-mounted, horizontal mounting simplifies retrofits into existing baselines and aligns with common floor plans, accelerating installation while minimizing retrofit costs. With a 3600 r/min synchronous speed and 1PH, 60 Hz operation, this motor delivers consistent belt drive performance across a range of small mechanical tools, improving overall uptime. The unit weighs 160 lb and supports direct-on-line starts, helping to limit gear and switching stress while enabling quick commissioning. Stocked at multiple warehouses with 0 day lead time, ABB 7B1251 supports fast deployment in manufacturing lines and maintenance turnarounds. Long-tail keywords integrated include ABB 7B1251 motor, 2HP single-phase motor, 115/230V dual voltage, TENV enclosure, foot-mounted motor, and 3600 r/min drive for grinders and buffing equipment.
