ABB 7B1408W Motor - 575V 3PH 50/60Hz TENV 5HP CSA
Part Number: 7B1408W
Quick Summary
ABB 7B1408W is a rugged 5HP three-phase motor designed for reliable performance in heavy-duty industrial equipment. Engineers often face downtime from inadequate enclosure protection, thermal limits, or misalignment with variable-speed drives. This motor features a TENV enclosure, NEMA Design Code B, and CSA certification, enabling operation at 40 °C ambient and 575 V three-phase service. The combination supports easy integration with ABB Baldor-Reliance offerings and standard VFDs, delivering predictable performance, longer motor life, and a lower total cost of ownership for manufacturing lines and heavy machinery applications.
Product Information
Extended Description
7B1408W ABB: 5HP,1500/1800RPM,3PH,50/60HZ,3735M,GRND
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1500/1800RPM,3PH,50/60HZ,3735M,
Ambient Temperature
40 °C
Brand / Label
Baldor-Reliance®
Catalog Number
1408W
Certification Agency
CSA
Country of Origin
United States (US)
Customs Tariff Number
8460908080
Design
B
Dimension Diagram
G4LY0116: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
50 Hz | 60 Hz
Global Commercial Alias
1408W
Gross Volume
21929.457 in³
Gross Weight
358 lb
Horsepower Rating UL/CSA
5.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
B
Invoice Description
5HP,1500/1800RPM,3PH,50/60HZ,3735M,GRND
Made To Order
No
Medium Description
3 Phase, TENV Enclosure, (1408W)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Mounting Orientation
Horizontal
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Product Name

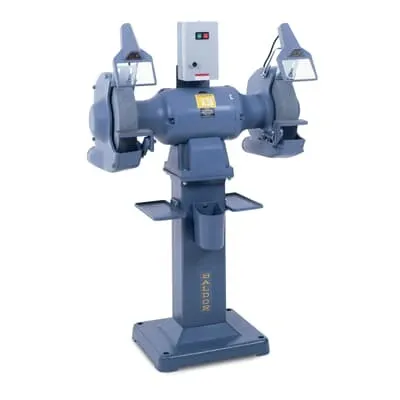

Grinders/Buffers/Lathes/Belt Sander
Product Net Depth / Length
41.313 in
Product Net Height
28.5 in
Product Net Weight
358 lb
Product Net Width
18.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.5 A
Rated Speed
1500 r/min | 1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.25 in
Short Description
3 PH, TENV,
Standards
Other
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min | 1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
575 V
Feature → Business Impact → Application: The 5HP rating with 1500/1800 r/min (single-speed) aligns with common process cycles, enabling efficient loads in grinders, buffers, lathes, and belt sanders while minimizing energy waste. This translates to measurable throughput improvements and reduced wear on drives when paired with standard 575V three-phase systems in production lines. Application: Ideal for machine tools and automation cells that demand reliable motor torque and consistent speed under varying loads. Feature → Business Impact → Application: TE N V enclosure with 40 °C ambient rating enhances enclosure protection in open plants, reducing moisture and dust ingress risk. This improves uptime and maintenance intervals for conveyors and workshops lacking climate control. Application: Suitable for open-floor manufacturing, material handling, and light metalworking stations. Feature → Business Impact → Application: NEMA Design Code B and Insulation Class B support thermal resilience and routine servicing, lowering the likelihood of insulation breakdown during peak demand. Application: Panels and drives requiring robust thermal margins and long-service life in continuous-duty tasks. Feature → Business Impact → Application: Direct on line starting and 1.25 in shaft with foot mounting provide straightforward installation and compatibility with standard belt and pulley configurations. Application: Quick retrofit into existing lines or new tool stations, with minimal mechanical adaptation. Feature → Business Impact → Application: Stocked at multiple warehouses with 0 day lead time improves supply chain reliability and reduces project downtime. Application: Critical for OEMs and maintenance teams needing fast replacements or spares in US and international facilities.
