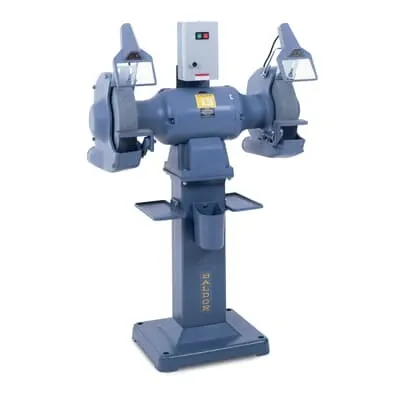

ABB 7B1411W Grinder - 7.5 HP, CSA UR Certified
Part Number: 7B1411W
Quick Summary
ABB 7B1411W Grinder is a robust 3-phase motor designed for heavy grinding, buffing, and surface finishing in manufacturing and workshop environments. This model addresses common pain points such as inconsistent performance, unplanned downtime, and complex maintenance by delivering reliable torque and stable speeds across demanding cycles. It carries CSA and UR certifications, is rated for 60 Hz and 50 Hz operation, and uses a 4-pole design for predictable speed response. With a Totally Enclosed Non-ventilated (TENV) enclosure and a foot-mounted base, installation is straightforward and safer in dusty or compact spaces. For buyers, these specifications translate to higher uptime, easier compliance, and lower total cost of ownership in job shops and contract manufacturing settings.
Product Information
Extended Description
7B1411W ABB: 40M 4P GRINDER
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40M 4P GRINDER
Ambient Temperature
40 °C
Brand / Label
Baldor-Reliance®
Catalog Number
1411W
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
8460908020
Dimension Diagram
G4LY0116: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz | 50 Hz
Global Commercial Alias
1411W
Gross Volume
21929.457 in³
Gross Weight
381 lb
Horsepower Rating UL/CSA
7.500 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
B
Invoice Description
40M 4P GRINDER
Made To Order
No
Medium Description
3 Phase, TENV Enclosure, (1411W)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Mounting Orientation
Horizontal
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
7.50 Hp
Product Name
Grinders/Buffers/Lathes/Belt Sander
Product Net Depth / Length
41.313 in
Product Net Height
28.5 in
Product Net Weight
381 lb
Product Net Width
18.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
18.8 A | 9.4 A
Rated Speed
1500 r/min | 1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.25 in
Short Description
3 PH, TENV,
Standards
Other
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min | 1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
208 V | 230 V | 460 V
3-phase, 4-pole design delivers high starting torque and consistent speed, reducing belt wear and vibration. The business impact is improved uptime and longer tool life on grinding lines, especially during heavy material removal. In practice, this is ideal for industrial grinders and buffing cells in metal fabrication shops. The Totally Enclosed Non-ventilated (TENV) enclosure protects windings from dust and splashes, extending motor life in harsh shop environments. This supports maintenance teams by reducing cleaning cycles and preventing overheating during continuous grinding cycles. Foot-mounted, horizontal mounting enables quick, room-friendly installation and simpler retrofits into existing production frames. This reduces installation time and minimizes misalignment risks, which translates to lower commissioning costs. Wide voltage and frequency range (208-230/460 V; 60 Hz/50 Hz) makes the ABB 7B1411W adaptable across global plants and supplier fleets. For procurement, this means fewer part numbers, easier stock management, and improved supply chain resilience. CSA and UR certifications provide regulatory assurance for electrical safety and reliability across U.S. and Canadian operations. This minimizes compliance overhead for audits and quality checks while supporting continuous production on shop floors. Starting Direct on Line compatibility and 1.25 in shaft diameter support straightforward coupling to grinders and accessory tooling. Operationally, the motor emphasizes robustness necessary for continuous grinding cycles and demanding workshop environments.
