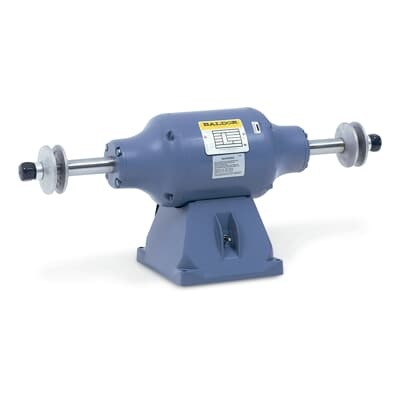

ABB 7B1458 Grinders/Buffers/Lathes/Belt Sander - CSA
Part Number: 7B1458
Quick Summary
ABB 7B1458 is a 5HP, three-phase motor designed for continuous duty in grinders, buffers, lathes, and belt sanders. In shop-floor environments, fluctuating loads and downtime erode uptime and margins, but this model addresses those pain points with robust performance and immediate availability. Key certifications and ratings include CSA certification, a Class B insulation, and a NEMA Design Code B in a compact, foot-mounted package with a TENV enclosure. The 208/230/460 V voltage range and direct-on-line starting simplify integration with existing power systems while minimizing control complexity. With 0-day lead time and stock across multiple warehouses, procurement aligns with lean manufacturing and just-in-time delivery strategies, delivering predictable lead times and reduced carrying costs for your project timelines.
Product Information
Extended Description
7B1458 ABB: 5HP,1500/1800RPM,3PH,50/60HZ,3735M,BUFF
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1500/1800RPM,3PH,50/60HZ,3735M,
Ambient Temperature
40 °C
Brand / Label
Baldor-Reliance®
Catalog Number
1458
Certification Agency
CSA
Country of Origin
United States (US)
Customs Tariff Number
8460908020
Design
B
Dimension Diagram
G4LY0117: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
50 Hz | 60 Hz
Global Commercial Alias
1458
Gross Volume
0 in³
Gross Weight
218 lb
Horsepower Rating UL/CSA
5.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
B
Invoice Description
5HP,1500/1800RPM,3PH,50/60HZ,3735M,BUFF
Made To Order
No
Medium Description
3 Phase, TENV Enclosure, (1458)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Mounting Orientation
Horizontal
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Product Name
Grinders/Buffers/Lathes/Belt Sander
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
218 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.6 A
Rated Speed
1500 r/min | 1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.25 in
Short Description
3 PH, TENV,
Standards
Other
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min | 1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
208 V | 230 V | 460 V
Feature: 5HP, 1500/1800 RPM, 3-phase operation at 50/60 Hz. Business Impact: provides reliable torque across common spindle speeds, minimizing belt slip and stalling in machine tools. Application: ideal for grinders, buffers, and belt sander setups in mid-size workshops. Feature: Foot-mounted, horizontal mounting with a TENV enclosure and 1.25 in shaft diameter. Business Impact: simplifies installation, alignment, and maintenance while protecting windings from dust ingress. Application: retrofit or new builds with standard base plates and straightforward alignment. Feature: Voltage flexibility (208V, 230V, 460V) and Direct on Line starting. Business Impact: reduces wiring complexity and startup power challenges, enabling rapid commissioning and lower installation costs. Application: integration into diverse electrical systems across plants with single- or multi-voltage supply. Feature: Insulation Class B and NEMA Design Code B. Business Impact: enhances reliability under moderate ambient temperatures, supporting longer motor life with predictable performance. Application: continuous-duty applications in controlled shop environments. Feature: Stocked at multiple warehouses with 0 day lead time. Business Impact: accelerates procurement cycles, supports just-in-time manufacturing, and minimizes production pauses. Application: fast-track projects, emergency spare parts, and equipment upgrades in U.S. and international facilities. Feature: 3-phase, 4-pole design with 1.0 service factor and a rolling 13.6 A rated current. Business Impact: delivers consistent load handling for standard tooling operations while maintaining motor efficiency and lifecycle, reducing energy waste over peak cycles. Application: general-purpose industrial motor duties in machine tools and belt-driven equipment.
Get a Quick Quote for a ABB 7B1458
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7B1458?
Enquire Now
FAQs
Yes. The motor supports direct-on-line starting and features a voltage rating of 208V/230V/460V, enabling straightforward connection to common three-phase power networks. For safe operation, ensure proper circuit protection and motor starter sizing per the 5HP rating and current draw (13.6 A).
The 7B1458 delivers 5 HP with rated speeds of 1500 r/min and 1800 r/min, at 50/60 Hz. The rated current is 13.6 A, and it uses a 1.25 in shaft with a 4-pole, 3-phase design. Insulation class is B, with a NEMA design B rating.
Absolutely. The product name indicates compatibility with grinders, buffers, lathes, and belt sanders, and the 5HP, 3-phase configuration is well-suited for tool-room machinery requiring steady torque and reliable startup in continuous-duty applications.
This motor is CSA-certified and built to NEMA design code B with a Class B insulation. It uses a TENV enclosure and is designed for reliable operation in standard workshop environments, supporting regulatory compliance for many North American facilities.
Lead time is 0 days with stock at multiple warehouses, including U.S. and China locations. This supports lean procurement, reduces downtime, and accelerates project timelines, helping you optimize capital expenditure and improve return on investment.
