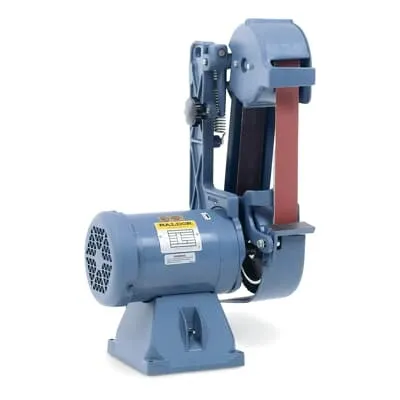

ABB 7B2048-151D 1-Phase TEFC Motor - UL Listed
Part Number: 7B2048-151D
Quick Summary
ABB 7B2048-151D 1-Phase TEFC Motor is a compact, reliable drive designed for single-phase applications requiring robust performance at 60 Hz. This 1.5 HP motor delivers 3600 rpm with a TEFC enclosure, making it suitable for belt grinders, lathes, and other shop-floor equipment. For engineers facing space constraints and dust-prone environments, the 143 frame with foot-mounted, horizontal orientation simplifies installation and replacement while maximizing uptime. The motor is UL listed and manufactured in the United States, with a 40 °C ambient rating and a NEMA Design Code L design, providing regulatory confidence. Standard stock availability across multiple warehouses enables fast procurement and consistent spare-part planning, reducing downtime and inventory complexity.
Product Information
Extended Description
7B2048-151D ABB: 1.5HP,3600RPM,1PH,60HZ,3528L,3528L,TEFC
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,3600RPM,1PH,60HZ,3528L,3528L,
Ambient Temperature
40 °C
Brand / Label
Baldor-Reliance®
Catalog Number
2048-151D
Certification Agency
UL
Country of Origin
United States (US)
Customs Tariff Number
8460908020
Design
L
Dimension Diagram
B2LY0003: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
2048-151D
Gross Volume
13239.046 in³
Gross Weight
88 lb
Horsepower Rating UL/CSA
1.500 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
B
Invoice Description
1.5HP,3600RPM,1PH,60HZ,3528L,3528L,TEFC
Made To Order
No
Medium Description
1 Phase, TEFC Enclosure, (2048-151D)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143
Mounting Orientation
Horizontal
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.50 Hp
Power Factor
82 %
Product Name
Grinders/Buffers/Lathes/Belt Sander
Product Net Depth / Length
26.5 in
Product Net Height
32.625 in
Product Net Weight
88 lb
Product Net Width
15.313 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
15 A | 7.5 A
Rated Efficiency
70 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Short Description
1 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The 1.5 HP, 3600 rpm, 60 Hz, single-phase design delivers readily available torque for light-industrial belt grinders and buffers, enabling smoother startup and predictable performance in small machine shops. Application: This supports reliable OEM line setups and maintenance tasks with minimal retrofit. The TEFC enclosure provides excellent protection against dust and moisture, reducing maintenance cycles and extending service intervals in abrasive environments. Application: Ideal for retrofit projects and new installations in manufacturing environments where enclosure integrity matters. Insulation Class B and NEMA Design Code L offer proven reliability under continuous duty and controlled startup torque, helping to meet regulatory expectations and reduce energy waste. Application: Suitable for continuous operation in light-duty automation tasks. Foot-mounted, horizontal mounting simplifies installation, aligns with standard bases, and minimizes downtime during upgrades. Application: Expedited installation with lower project risk. Stocked at multiple warehouses worldwide (US and international), with 0-day lead times, improving procurement efficiency and spare-part availability. Application: Supports lean inventory and rapid replacement across multi-site operations. Long-tail keywords integrated include ABB single-phase motor, TEFC enclosed motor, NEMA design L motor, foot-mounted induction motor, 1-phase 60 Hz drive, and 115/230 V compatibility for shop-floor automation.
