ABB 7B248-153TD Motor - CSA/UL Certified
Part Number: 7B248-153TD
Quick Summary
ABB 7B248-153TD motor is a 1.5 HP, 3600 RPM three-phase drive designed for general-purpose workshop automation. Engineers often face long lead times and compatibility gaps when replacing legacy motors; this model eliminates those pain points with 0-day lead time and broad stocking across multiple US and international warehouses. It carries CSA and UL certifications, a TEFC enclosure, and insulation class B, ensuring safe operation in busy shop floors and demanding environments. With 208–230–460 V compatibility and a 1.15 service factor, it delivers reliable, low-risk performance for grinding, buffing, lathes, and belt sander applications, enabling faster maintenance cycles and predictable procurement budgets.
Product Information
Extended Description
7B248-153TD ABB: 1.5HP,3600RPM,3PH,60HZ,3516M,3516M,TEFC
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,3600RPM,3PH,60HZ,3516M,3516M,
Ambient Temperature
40 °C
Brand / Label
Baldor-Reliance®
Catalog Number
248-153TD
Certification Agency
CSA | UL
Country of Origin
United States (US)
Customs Tariff Number
8460908080
Design
B
Dimension Diagram
B2LY0005: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
248-153TD
Gross Volume
13239.046 in³
Gross Weight
84 lb
Horsepower Rating UL/CSA
1.500 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
B
Invoice Description
1.5HP,3600RPM,3PH,60HZ,3516M,3516M,TEFC
Made To Order
No
Medium Description
3 Phase, TEFC Enclosure, (248-153TD)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Mounting Orientation
Horizontal
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.50 Hp
Power Factor
76 %
Product Name

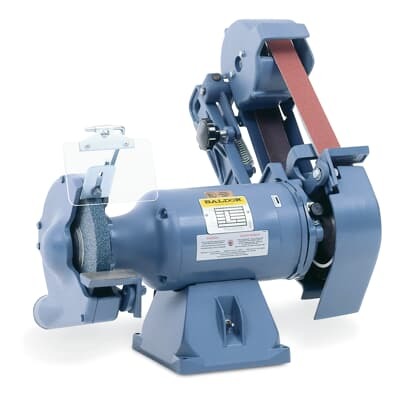

Grinders/Buffers/Lathes/Belt Sander
Product Net Depth / Length
26.5 in
Product Net Height
32.625 in
Product Net Weight
84 lb
Product Net Width
15.313 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5 A | 4.6 A | 2.3 A
Rated Efficiency
75.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Short Description
3 PH, TEFC,
Standards
Other
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
208 V | 230 V | 460 V
Feature: 1.5 HP, 3600 RPM, 60 Hz three-phase motor. Business Impact: Delivers ample continuous power for common shop tools, reducing stall and startup losses. Application: Ideal for grinders, buffers, lathes, and belt sanders in general purpose machinery. The 1.15 service factor provides a margin for short-duration overloads, improving uptime and reliability. Feature: TEFC enclosure with steel frame. Business Impact: Enhanced protection against dust, debris, and oil in busy workshops, extending motor life and reducing maintenance. Application: Suitable for belt sanders and other surface finishing equipment operating in dirty environments. Feature: Foot-mounted, horizontal mounting with standard drive end flange. Business Impact: Eases installation and retrofit into existing benches and cabinets, shortening downtime and enabling flexible layouts. Application: Retrofit projects and new machine builds with rapid commissioning. Feature: Wide voltage tolerance (208/230/460 V). Business Impact: Enables installation across diverse electrical systems without rewiring or transformers, lowering integration costs. Application: North American and export environments. Feature: CSA/UL certification and ambient rating (40 °C). Business Impact: Strengthens procurement approvals, supplier quality, and regulatory compliance; minimizes risk during audits. Application: Industrial automation and general purpose motor applications across manufacturing floors.
