ABB 7B248-181TD AC Motor - TENV Enclosure
Part Number: 7B248-181TD
Quick Summary
ABB 7B248-181TD is an AC motor designed to drive single-phase machinery in industrial applications. Engineers often struggle with long lead times, non-standard frames, and insufficient protection when upgrading legacy equipment. This model leverages UL/CSA-friendly performance, a NEMA Design Code L profile, and a robust 1.5HP rating to deliver reliable operation in 60 Hz environments. With a Total Enclosed Non-Ventilated (TENV) enclosure and insulation class B construction, it supports steady operation in harsher shop floors while maintaining everyday efficiency. For procurement teams, the combination of stock availability, quick lead times, and straightforward installation translates into lower downtime and improved project ROI, especially when replacing older motors or integrating into compact automation lines.
Product Information
Extended Description
7B248-181TD ABB: 1.5HP,3600RPM,1PH,60HZ,3535LC,3535LC
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,3600RPM,1PH,60HZ,3535LC,3535L
Ambient Temperature
40 °C
Brand / Label
Baldor-Reliance®
Catalog Number
248-181TD
Country of Origin
United States (US)
Customs Tariff Number
8460908080
Design
L
Dimension Diagram
B2LY0006: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
248-181TD
Gross Volume
13239.046 in³
Gross Weight
138 lb
Horsepower Rating UL/CSA
1.500 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
B
Invoice Description
1.5HP,3600RPM,1PH,60HZ,3535LC,3535LC
Made To Order
No
Medium Description
1 Phase, TENV Enclosure, (248-181TD)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Mounting Orientation
Horizontal
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.50 Hp
Product Name

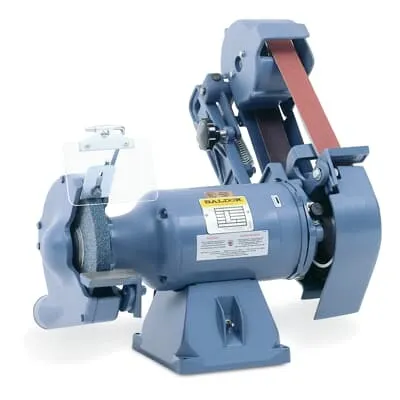

Grinders/Buffers/Lathes/Belt Sander
Product Net Depth / Length
26.5 in
Product Net Height
32.625 in
Product Net Weight
138 lb
Product Net Width
15.313 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
15 A | 7.5 A
Rated Speed
3600 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Short Description
1 PH, TENV,
Standards
Other
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature → The 1.5HP, 3600RPM, single-phase motor delivers strong startup torque for small to mid-sized automation tasks. Benefit → This enables faster cycle times and reduced belt or chain wear, improving conveying and tooling throughput in light-to-mid industrial applications. Application → Ideal for compact conveyors, grinders, lathes, and belt sanders where space is at a premium. Feature → Foot-mounted, horizontal mounting with frame 3535LC fits standard bases and ensures easy retrofits. Benefit → Simplified installation, lower mounting costs, and compatibility with existing machine frames across shop floors. Application → Suitable for retrofit projects in machine tools and packaging lines. Feature → TENV enclosure protects the windings in non-ventilated spaces. Benefit → Enhanced motor longevity and resistance to dust and incidental moisture, reducing maintenance cycles. Application → Use in factory floors with limited cooling or aggressive environments. Feature → Insulation Class B and NEMA Design Code L provide reliable thermal and electrical performance. Benefit → Higher temperature tolerance and predictable control with standard drive systems. Application → Supports continuous-duty operations in general machinery and automation panels. Feature → Stocked At Warehouses with 0-day lead time promotes faster procurement. Benefit → Reduced downtime for replacements and urgent modernization projects. Application → Ideal for just-in-time maintenance and emergency spares in US and international facilities. Feature → UL/CSA-rated horsepower and direct-on-line starting simplify safety and integration. Benefit → Compliance confidence and straightforward control wiring without complex soft-start hardware. Application → Across production lines, packaging, and simple robotics where robust, safe start is critical.
