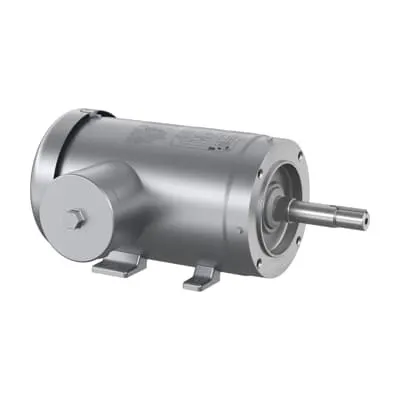

ABB 35E4781N653G2 Pump Motor - IE3 Premium Efficiency
Part Number: 7B35E4781N653G2
Quick Summary
Pump motor 3 HP 575 V powers reliable pumping in industrial equipment and process systems. Manufacturers often face downtime and high energy costs due to inefficient or incompatible motors. It aligns with IE3 Premium Efficiency, NEMA Premium, and CSA EEV certifications to support regulatory compliance. Designed for continuous duty in close-coupled pump configurations, it helps reduce energy consumption and maintenance costs. With US origin and immediate availability across multiple warehouses, it lowers lead times and strengthens procurement resilience.
Product Information
Extended Description
7B35E4781N653G2 ABB: Pump Motor 3 Hp 575 V (35E4781N653G2)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3470RPM,3PH,60HZ,145JM,3546M,TE
Ambient Temperature
40 °C
Bearing
6206, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
35E4781N653G2
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
35E4781N653G2
Gross Volume
7192.91 in³
Gross Weight
61 lb
Insulation Class
H
Invoice Description
3HP,3470RPM,3PH,60HZ,145JM,3546M,TEFC,F1
Made To Order
No
Medium Description
Close Coupled Pump, 3 HP, 3600 RPM, Frame Size 145Jm, C-Face Mounting, 3 Phase, 575 V, 60 Hz (35E4781N653G2)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
91 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
61 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.9 A
Rated Efficiency
86.50 %
Rated Speed
3470 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
3 HP, 3600 RPM, Frame Size 145Jm, C-Face, 3 PH, 575 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
575 V
Feature: IE3 Premium efficiency with a rated 86.50% efficiency and a power factor of 91% reduces energy consumption and heat generation. Business Impact: lowers operating costs, extends motor life, and improves system reliability. Application: suitable for continuous-duty 3 HP pumps in process lines and cooling loops where energy efficiency directly affects total cost of ownership. Feature: TEFC enclosure for rugged environments and 575 V, 60 Hz operation. Business Impact: provides robust protection against dust and moisture, reducing maintenance cycles and downtime. Application: ideal for pumps in industrial plants, water treatment, and chemical processing where harsh conditions are common. Feature: Close-coupled pump design with 145JM frame, 3 HP, and 3470 r/min rated speed. Business Impact: compact footprint lowers installation space and enables quicker skid integration. Application: tight pump packages in confined spaces and retrofit projects in OEM assemblies. Feature: C-Face drive end, foot mounting, horizontal mounting position (F1). Business Impact: simplifies alignment, reduces installation time, and supports flexible mounting on existing frames. Application: pump kits and replacement motors in standard industrial equipment. Feature: Stocked at multiple warehouses with 0-day lead times. Business Impact: dramatically reduces procurement cycles and accelerates project timelines. Application: procurement for capital equipment, OEMs, and service contracts requiring rapid availability. Feature: Certifications CSA EEV, NEMA Premium, UR with 575 V, 60 Hz, and 3-phase rating. Business Impact: ensures regulatory compliance and reliability across global projects. Application: critical in industries with strict energy and safety standards, including regulated process industries and utility-backed installations.
