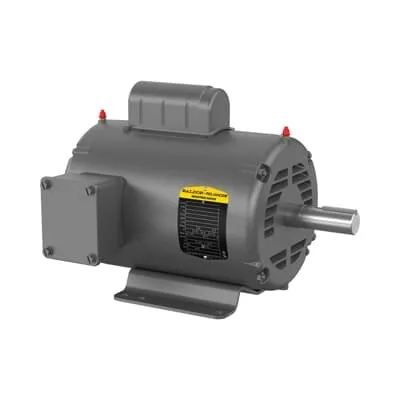

ABB 7B36D001W693G1 General Purpose Motor - 1PH, 60Hz, 182T
Part Number: 7B36D001W693G1
Quick Summary
ABB 7B36D001W693G1 General Purpose Motor is a 2 HP single‑phase open‑frame motor ideal for standard industrial drives such as pumps, fans, and conveyors. Engineers often contend with long lead times and installation surprises; this model addresses those challenges with immediate stock at multiple warehouses and simple mounting options. It carries CSA/UR certification and adheres to NEMA design standards, delivering regulatory confidence in critical environments. With United States origin and 208 V, 60 Hz operation, the 182T frame supports easy integration into existing toolings and spare-part ecosystems. Stock availability, straightforward installation, and predictable performance translate into faster project timelines and a lower total cost of ownership.
Product Information
Extended Description
7B36D001W693G1 ABB: General Purpose Motor 2 Hp 208 V (36D001W693G1)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1725RPM,1PH,60HZ,182T,3634L,OPE
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
36D001W693G1
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
36D001W693G1
Gross Volume
5274.135 in³
Gross Weight
74 lb
Insulation Class
B
Invoice Description
2HP,1725RPM,1PH,60HZ,182T,3634L,OPEN,F1
Made To Order
No
Medium Description
General Purpose 1PH Open, 2 HP, 1800 RPM, Frame Size 182T, Standard Mounting, 1 Phase, 208 V, 60 Hz (36D001W693G1)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
81 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
74 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12 A
Rated Efficiency
75 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
2 HP, 1800 RPM, Frame Size 182T, Standard, 1 PH, 208 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
208 V
Feature: 2 HP, 1PH, 208 V, 60 Hz aligns with common utility power and lightweight plant loads, reducing wiring complexity and panel footprint. Business Impact: Facilitates quicker installation and reliable uptime for pumps, fans, and conveyors in HVAC and process applications. Application: Ideal for small- to mid-sized open‑frame drives where space and power budgets are tight. Feature: 182T frame, foot-mounted, horizontal mounting (F1) with open enclosure. Business Impact: Ensures retrofit compatibility and straightforward mounting on existing bases, minimizing mechanical modification costs. Application: Replacement motors in legacy equipment and new installations across manufacturing lines. Feature: Direct on line starting and 1PH operation. Business Impact: Simplifies electrical design and reduces soft-start requirements, lowering initial capital expenditure and enabling fast commissioning. Application: Direct-drive fans, pumps, and conveyors in light industrial settings. Feature: NEMA Design Code L, CSA | UR certifications, United States origin. Business Impact: Delivers regulatory confidence, traceability, and supplier reliability for regulated environments. Application: Medical,食品, and general industrial environments requiring approved components. Feature: Rated current 12 A, Power Factor 81%, Rated Efficiency 75%. Business Impact: Predictable electrical performance reduces utility load estimates and improves motor sizing accuracy for control systems. Application: Energy-conscious equipment design and maintenance planning across industrial facilities.
Get a Quick Quote for a ABB 7B36D001W693G1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7B36D001W693G1?
Enquire Now
FAQs
Yes. This motor is specified for 208 V, single-phase (1PH), 60 Hz operation and uses a 182T frame. It is designed for direct replacement in compatible open-frame applications and aligns with 1PH power distribution typical in light-industrial settings.
The motor is foot-mounted (F1) with an OPEN enclosure, allowing for straightforward installation and effective cooling in open plant environments. Horizontal mounting makes it suitable for conveyor and pump housings with standard base plates.
It carries NEMA design code L and CSA | UR certifications, with United States origin. These approvals support regulatory compliance, safety, and reliability in regulated facilities, reducing risk during audits and procurement reviews.
Ideal for pumps, fans, and conveyors in light industrial or HVAC systems. The 2 HP rating, 1725 rpm class, and 208 V single-phase operation make it a practical choice for retrofit projects and standard machine drives.
Warranty terms indicate that products under warranty must be returned. The motor is stocked across multiple warehouses with zero-day lead times, which supports rapid replacement and service continuity if a fault occurs.
