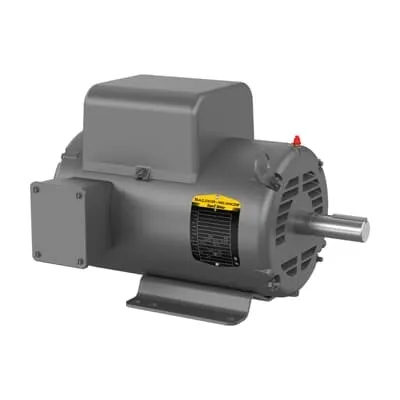

ABB 7B36E002W100 General Purpose Motor - NEMA L Design
Part Number: 7B36E002W100
Quick Summary
General Purpose Motor powers 3 HP loads in open-frame applications like pumps, fans, and conveyors. Engineers often face long lead times and supply uncertainty; this ABB motor ships from multiple stocked warehouses with 0 day lead time. It carries CSA and UR certifications along with a NEMA Design L designation for dependable safety and performance in varied industrial environments. With 1PH, 208 V operation and an open enclosure, it integrates smoothly into existing systems, delivering cost-effective maintenance and scalable upgrade paths for future needs.
Product Information
Extended Description
7B36E002W100 ABB: General Purpose Motor 3 Hp 208 V (36E002W100)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1725RPM,1PH,60HZ,184T,3634LC,OP
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
36E002W100
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
36E002W100
Gross Volume
5274.135 in³
Gross Weight
76 lb
Insulation Class
B
Invoice Description
3HP,1725RPM,1PH,60HZ,184T,3634LC,OPEN,F1
Made To Order
No
Medium Description
General Purpose 1PH Open, 3 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 1 Phase, 208 V, 60 Hz (36E002W100)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Product Name
General Purpose 1PH Open
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
76 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
17.5 A
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 184T, Standard, 1 PH, 208 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
208 V
Feature → The motor operates on 1 phase at 208 V, 60 Hz, delivering 3 HP and 1725 rpm. Business Impact → Simplified wiring and compatibility with common single-phase systems reduce project complexity and wiring errors. Application → Ideal for light industrial pumps, fans, and conveyors where quick commissioning is critical. Feature → 184T frame with foot-mounted base and horizontal mounting (F1). Business Impact → Standardized mounting reduces installation time and streamlines replacement in existing equipment. Application → Fits common base plates and equipment footprints in OEM lines and retrofit projects. Feature → Open enclosure and steel frame construction. Business Impact → Enhanced cooling and robust service life in open or semi-indoor environments. Application → Suitable for open-air installations, machine rooms, and conveyors in manufacturing floors. Feature → NEMA Design Code L and 60 Hz operation. Business Impact → Predictable torque characteristics and compatibility with typical load profiles, supporting longer motor life under start/stop duty. Application → Continuous-duty applications with frequent starting cycles, such as pumps and fans. Feature → Stocked at multiple warehouses with 0-day lead time. Business Impact → Accelerated procurement and faster project timelines, reducing downtime risk. Application → Ideal for urgent installations, plant upgrades, and maintenance spares programs. Feature → 3 HP, 1725 r/min, rated current 17.5 A, service factor 1.15. Business Impact → Balanced efficiency and overload tolerance for steady performance under modest overloads. Application → Ideal for general purpose drives, conveyors, and light-duty process equipment.
