7B380WCT
Part Number: 7B380WCT
Product Information
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation

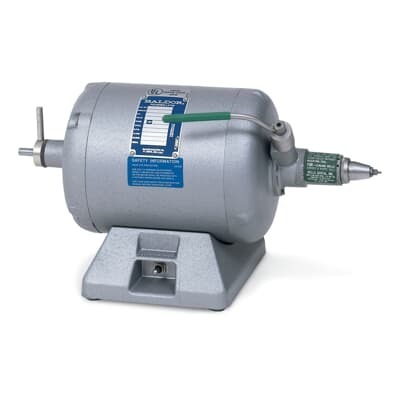

28L 2/4P POLISHING LATHE MTO
Ambient Temperature
40 °C
Brand / Label
Baldor-Reliance
Catalog Number
380WCT
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
8460908020
Dimension Diagram
L5LY0243: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
380WCT
Gross Volume
3590.443 inÂł
Gross Weight
47 lb
Horsepower Rating UL/CSA
0.330 Hp | 0.170 Hp
IDEA Granular Category Code (IGCC)
1323 >> Multispeed motor AC
Insulation Class
F
Invoice Description
28L 2/4P POLISHING LATHE MTO
Made To Order
No
Medium Description
1 Phase, TENV Enclosure, (380WCT)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Mounting Orientation
Horizontal
Number of Phases
1
Number of Poles
2P | 4P
Number of Poles (High)
4
Number of Poles (Low)
2
Number of Speeds
Two Speed
Order Multiple
1 piece
Output Power
0.33 Hp | 0.17 Hp
Product Name
Grinders/Buffers/Lathes/Belt Sander
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
47 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.3 A | 2.1 A
Rated Speed
1725 r/min | 3450 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.38 in
Short Description
1 PH, TENV,
Standards
Other
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min | 3600 r/min
Type of Duty
Continuous
UNSPSC
26101110
Voltage Rating
115 V
