ABB 7B412B 1.5HP Motor - 3PH 50/60Hz, TENV Enclosure
Part Number: 7B412B
Quick Summary
ABB 7B412B motor delivers 1.5 HP of reliable, three‑phase power for general industrial equipment and automation lines. This compact, foot-mounted motor supports dual speed operation, delivering 3000 r/min and 3600 r/min to suit belt drives, grinders, and machine tools. With instant availability and US origin stocking, you can reduce downtime and simplify procurement in high-demand environments. The unit is CSA-certified and UL/CSA listed, and it uses a Totally Enclosed Non-Ventilated (TENV) enclosure to protect internal components in typical workshop and plant conditions. Designed for straightforward installation, long-term reliability, and predictable maintenance, it aligns well with cost-conscious manufacturing strategies and local supply chains.
Product Information
Extended Description
7B412B ABB: 1.5HP,3000/3600RPM,3PH,50/60HZ,3528M
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,3000/3600RPM,3PH,50/60HZ,3528
Ambient Temperature
40 °C
Brand / Label
Baldor-Reliance®
Catalog Number
412B
Certification Agency
CSA
Country of Origin
United States (US)
Customs Tariff Number
8460908020
Dimension Diagram
G0LY0167: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz | 50 Hz
Global Commercial Alias
412B
Gross Volume
5770.548 inÂł
Gross Weight
62 lb
Horsepower Rating UL/CSA
1.500 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
B
Invoice Description
1.5HP,3000/3600RPM,3PH,50/60HZ,3528M
Made To Order
No
Medium Description
3 Phase, TENV Enclosure, (412B)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Mounting Orientation
Horizontal
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.50 Hp
Product Name

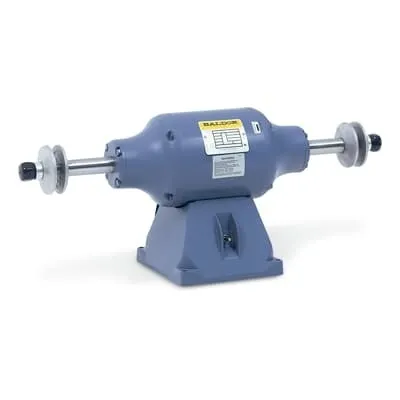

Grinders/Buffers/Lathes/Belt Sander
Product Net Depth / Length
31.813 in
Product Net Height
13.625 in
Product Net Weight
62 lb
Product Net Width
13.313 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Speed
3000 r/min | 3600 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
3 PH, TENV,
Standards
Other
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3000 r/min | 3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
208 V | 230 V | 460 V
Feature: Dual-speed 3000 r/min and 3600 r/min operation allows precise matching of motor speed to belt drives and processing cycles. Business Impact: Enables energy-efficient operation and improved process control, reducing wear on driven equipment. Application: Ideal for grinders, lathes, and conveyors where duty cycles vary. Feature: 3-phase power with voltage options of 208/230/460 V ensures compatibility with a wide range of facility electrical systems. Business Impact: Simplifies retrofits and minimizes additional wiring or transformers, lowering installation costs. Application: New installations in mixed-voltage plants and upgrade projects. Feature: Totally Enclosed Non-Ventilated (TENV) enclosure provides robust protection in typical workshop environments. Business Impact: Enhances reliability, reduces maintenance needs, and extends motor life in dust and mild moisture conditions. Application: Machine tools, packaging lines, and general automation equipment. Feature: Foot-mounted, horizontal orientation allows quick, secure installation with standard base plates. Business Impact: Reduces setup time and alignment errors, improving uptime and safety. Application: OEM and retrofit projects with standard floor anchoring. Feature: Compact dimensions and 62 lb weight (Net: 62 lb) with a 31.813 in length and 13.625 in height profile. Business Impact: Facilitates easy mounting in tight enclosures and space-constrained cabinets, lowering footprint. Application: Enclosed control panels and compact machine builds. Feature: Insulation Class B and ambient temperature rating of 40 °C support predictable life cycles under typical plant conditions. Business Impact: Improves reliability and reduces unexpected maintenance windows. Application: Continuous-duty operation in standard manufacturing environments.
