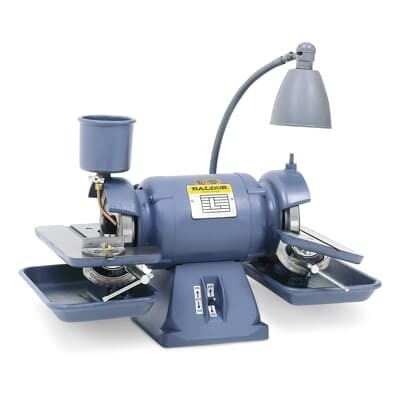

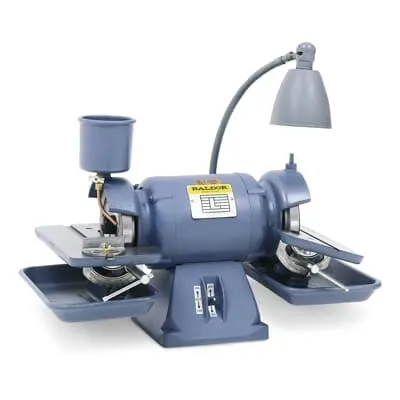

ABB 7B522 Grinders/Buffers/Lathes/Belt Sander - TENV
Part Number: 7B522
Quick Summary
ABB 7B522 is a compact single-phase motor designed for shop machinery and power tools, ideal for grinders, buffers, lathes, and belt sanders. This motor delivers reliable performance in small- to mid-size equipment retrofit and new builds, reducing downtime with immediate availability. It carries the key credentials you expect in industrial environments, including UL/CSA and UR recognition, and is built in the United States for consistent supply. With a 0.5 HP rating, 3600 rpm, and a rugged TENV enclosure, it combines efficiency with durability. The design supports straightforward installation and service, boosting uptime, simplifying spare-part strategies, and delivering tangible cost savings over time for OEMs and maintenance teams alike.
Product Information
Extended Description
7B522 ABB: .5HP,3600RPM,1PH,60HZ,3524C,3524C,TENV
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,3600RPM,1PH,60HZ,3524C,3524C,T
Ambient Temperature
40 °C
Brand / Label
Baldor-Reliance®
Catalog Number
522
Certification Agency
UR
Country of Origin
United States (US)
Customs Tariff Number
8460908020
Dimension Diagram
ALY0738: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
522
Gross Volume
8416.408 inÂł
Gross Weight
108 lb
Horsepower Rating UL/CSA
0.500 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
B
Invoice Description
.5HP,3600RPM,1PH,60HZ,3524C,3524C,TENV
Made To Order
No
Medium Description
1 Phase, TENV Enclosure, (522)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Mounting Orientation
Horizontal
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.50 Hp
Product Name
Grinders/Buffers/Lathes/Belt Sander
Product Net Depth / Length
27.438 in
Product Net Height
16.75 in
Product Net Weight
108 lb
Product Net Width
18.313 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5 A
Rated Speed
3600 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.75 in
Short Description
1 PH, TENV,
Standards
Other
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V
Feature → Business Impact → Application: 0.5 HP, 3600 rpm, 1-phase, 60 Hz delivers strong torque at mains voltage to drive common workshop tools, enabling compact drives and improved workpiece throughput for grinders and belt sanders. Application: Use in small machine shops or OEM rebuilds to maximize productive cycles with minimal energy draw. Feature → Business Impact → Application: TENV enclosure protects the windings in dusty, workshop environments, reducing thermal stress and extending motor life; this supports continuous operation in manufacturing cells and repair centers. Feature → Business Impact → Application: 115V operation with 5 A current provides easier electrical integration in retrofit projects and retrofits where three-phase power is unavailable. Application: Perfect for single-phase line-ups on grinders, buffers, lathes, and belt sanders. Feature → Business Impact → Application: 3524C frame with 0.75 in shaft diameter ensures compatibility with standard mounting plates and couplings, simplifying installation and spare parts management. Application: Facilitates rapid OEM change-overs and controlled inventory for maintenance teams. Feature → Business Impact → Application: Direct on line starting and 0 day lead time offer rapid deployment and simplified control schemes; reduces switchgear requirements and installation complexity. Application: Ideal for new installations in production lines or repair shops seeking fast commissioning. Feature → Business Impact → Application: UL/CSA and UR certifications along with US origin support regulatory compliance, quality assurance, and supplier traceability; this reduces risk in audits and customer qualification. Application: Suitable for regulated environments and contracts demanding recognized standards. The combination of stock across multiple warehouses and listed warranty terms provides confidence for procurement and service planning, helping engineers meet uptime targets with predictable lead times.
