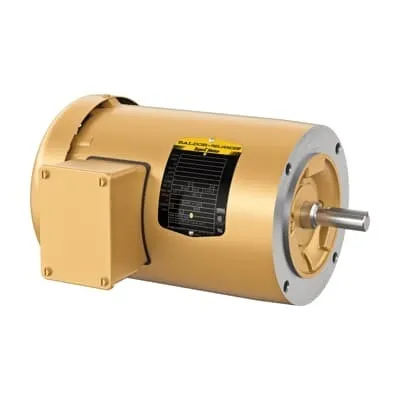

ABB 610490001DG Unit Handling - TEFC 2HP IE3 CE
Part Number: 7B610490001DG
Quick Summary
Unit Handling ABB 610490001DG motor delivers reliable 2 HP performance for conveyors, material handling, and automated lines. This compact 56C frame, C-face mounted motor is designed for industrial environments where uptime and efficiency matter. Users often struggle with integrating motors that support multiple voltages and certifications, driving inventory complexity. This solution provides cross-compatibility across 208-230/460 V in a single frame, with TEFC protection and robust insulation. The motor meets CE, CSA, and IE3 standards, alongside NEMA Premium efficiency, delivering predictable energy savings and easier procurement. With 0-day lead time and stock across multiple warehouses, you can source quickly, reduce spare parts, and streamline maintenance planning for lower lifecycle costs.
Product Information
Extended Description
7B610490001DG ABB: Unit Handling 2 Hp 208 V (610490001DG)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3450//2890RPM,3PH,60//50HZ,56C,
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
610490001DG
Certification Agency
CE | CSA | CSA EEV | IE3 | NEMA_PREMIUM | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
50 Hz | 60 Hz
Global Commercial Alias
610490001DG
Gross Volume
3496.049 in³
Gross Weight
43 lb
Insulation Class
F
Invoice Description
2HP,3450//2890RPM,3PH,60//50HZ,56C,3532M
Made To Order
No
Medium Description
Unit Handling, 2 HP, 3600//3000 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 208-230/460 V, 60 Hz (610490001DG)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
87 %
Product Name
Unit Handling
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
43 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.4 A | 5 A | 2.5 A | 5.5 A | 5.2 A | 2.6 A
Rated Efficiency
85.50 %
Rated Speed
2890 r/min | 3450 r/min
Replaced Product ID (OLD)
7B35A013L541G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
2 HP, 3600//3000 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3000 r/min | 3600 r/min
Type of Duty
Continuous
Voltage Rating
208 V | 230 V | 460 V
Feature → Business Impact → Application: The 2 HP, 3-phase output combined with a 56C frame and C-face mounting reduces footprint while maintaining robust torque for continuous duty on compact conveyors and packaging lines. This translates to smaller installations and easier retrofits in existing lines, improving install time and reducing capital expenditure. Feature → Compatibility & Flexibility → Application: Voltage rating of 208-230/460 V and 50/60 Hz support simplifies sourcing across global sites, lowering stock diversity and procurement risk while enabling quick deployment in mixed-voltage facilities. Feature → Efficiency & Reliability → Application: IE3 efficiency (approx. 85.5%) and insulation class F deliver energy savings and longer motor life, decreasing energy bills and maintenance cycles in high-usage environments like material handling. Feature → Protection & Compliance → Application: TEFC enclosure with balanced shaft and CE/CSA/NEMA Premium certifications ensure safe operation, regulatory compliance, and lower total cost of ownership in OEM integrations. Feature → Availability & Support → Application: Stocked at multiple warehouses with 0-day lead times reduces downtime for OEMs and distributors, while standard mounting and footless base support straightforward installation and part availability.
Get a Quick Quote for a ABB 7B610490001DG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7B610490001DG?
Enquire Now
FAQs
The 610490001DG uses a 56C frame with C-face mounting and horizontal orientation, enabling straightforward installation on conveyors and material-handling gear. It supports 3-phase operation at 208-230/460V and 50/60 Hz, with a TEFC enclosure for protection in demanding environments. Footless base options simplify mounting on compact frames and streamline retrofits in existing lines.
This motor delivers 2 HP with rated currents ranging around 2.5–5.5 A depending on voltage and frequency, and it operates at 2890 r/min (low-speed) or 3450 r/min (high-speed). It is rated for 208-230/460V 3-phase and 50/60 Hz, with an efficiency of about 85.5% and a service factor of 1.15, suitable for continuous duty.
Yes. The motor is designed for continuous operation in industrial environments, featuring a TEFC enclosure, F-class insulation, and a 40 °C ambient rating. With a 56C frame and C-face mounting, it offers reliable torque and consistent performance for conveyors and material-handling systems under continuous load.
This model carries CE, CSA, CSA EEV, IE3, and NEMA Premium certifications, indicating compliance with European, Canadian, and NA energy and safety standards. For your compliance audits, procurement certainty, and end-user validation, these certifications reduce risk when integrating the motor into regulated manufacturing environments.
With a robust TEFC design and standard 56C frame, maintenance requirements are minimal, and parts are widely available. The IE3 efficiency reduces operating costs, improving ROI on high-usage lines. Stock availability across warehouses minimizes downtime during replacements, and the motor’s standard mounting simplifies future upgrades or spares planning.
