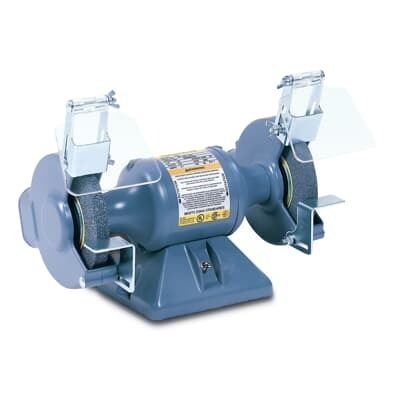

ABB 7B712 Electric Motor - 0.5HP, CSA Certified
Part Number: 7B712
Quick Summary
ABB 7B712 Electric Motor powers compact single-phase tools for light-duty grinding and buffing applications. This 0.5 HP motor delivers 3600 rpm from a 115 V, 60 Hz supply with a GRND enclosure, ideal for open-shop environments. Many buyers struggle with fitting a motor to standard shop power, ensuring durability, and simplifying installation. The unit is UL/CSA listed and ETIM-classified (EC001851 Electric motor), with a foot-mounted design that eases mounting and maintenance. Stocked at multiple warehouses for fast delivery reduces downtime and obsolescence. For small fabrication, maintenance, and repair operations, this motor offers reliable performance, easy interchangeability, and predictable service life without over-specifying capabilities.
Product Information
Extended Description
7B712 ABB: .5HP,3600RPM,1PH,60HZ,3420C,GRND
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,3600RPM,1PH,60HZ,3420C,GRND
Ambient Temperature
40 °C
Brand / Label
Baldor-Reliance®
Catalog Number
712
Certification Agency
CSA
Country of Origin
United States (US)
Customs Tariff Number
8460908020
Dimension Diagram
G7LY0370: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
GRND
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
712
Gross Volume
3590.443 in³
Gross Weight
45 lb
Horsepower Rating UL/CSA
0.500 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
B
Invoice Description
.5HP,3600RPM,1PH,60HZ,3420C,GRND
Made To Order
No
Medium Description
1 Phase, GRND Enclosure, (712)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Mounting Orientation
Horizontal
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.50 Hp
Product Name
Grinders/Buffers/Lathes/Belt Sander
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
45 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.4 A
Rated Speed
3600 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1 PH, GRND,
Standards
Other
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V
Feature: 1-phase, 115 V operation at 60 Hz delivers 0.5 HP with 3600 rpm. Business Impact: aligns with standard North American power infrastructure, streamlining installation and reducing wiring complexity. Application: ideal for light-duty grinders, buffers, and belt sanders in repair shops and small fabrication cells. Feature: Ground enclosure (GRND) and foot-mounted, horizontal orientation. Business Impact: provides rugged protection in open workshops and simplifies mounting, maintenance, and alignment. Application: fits on common workbench stands and machine bases without custom enclosures. Feature: Insulation Class B and ambient temperature rating to 40 °C. Business Impact: supports reliable performance in typical workshop temperatures, extending motor life and reducing overheating risk. Application: continuous-duty operation in ambient-controlled environments. Feature: Direct-On-Line starting and 0 day lead time with multi-warehouse stocking. Business Impact: minimizes installation downtime and supply chain risk; fast replacement in outages. Application: production lines, maintenance shops, and field service operations that require quick swap-outs. Feature: 2-pole design with 3600 r/min synchronous speed and 0.63 in shaft diameter. Business Impact: ensures efficient torque delivery with predictable performance and straightforward coupling to standard drive components. Application: drives small lathes, grinders, and polishing equipment in industrial settings.
