ABB 7B712RE Electric Motor - 0.5HP, 60Hz, 1PH Direct-On-Line
Part Number: 7B712RE
Quick Summary
ABB 7B712RE Electric Motor delivers 0.5 HP power for light-duty machinery used in manufacturing and packaging. In practice, downtime and mismatched torque can erode productivity; this motor balances reliability with a compact enclosure to keep lines running smoothly. It carries CSA certification for North American safety, is rated for 115 V at 60 Hz, and uses a 1-phase configuration suitable for common shop floors. With a foot-mounted GRND enclosure and Baldor-Reliance lineage, the 7B712RE is easy to source, install, and service, translating to reduced maintenance intervals and lower total cost of ownership across OEM and aftermarket applications.
Product Information
Extended Description
7B712RE ABB: .5HP,3600RPM,1PH,60HZ,3420C,GRND
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,3600RPM,1PH,60HZ,3420C,GRND
Ambient Temperature
40 °C
Brand / Label
Baldor-Reliance®
Catalog Number
712RE
Certification Agency
CSA
Country of Origin
United States (US)
Customs Tariff Number
8460908020
Dimension Diagram
G7LY0302: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
GRND
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
712RE
Gross Volume
3590.443 in³
Gross Weight
30.844 kg
Horsepower Rating UL/CSA
0.500 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
B
Invoice Description
.5HP,3600RPM,1PH,60HZ,3420C,GRND
Made To Order
No
Medium Description
1 Phase, GRND Enclosure, (712RE)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Mounting Orientation
Horizontal
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.50 Hp
Product Name

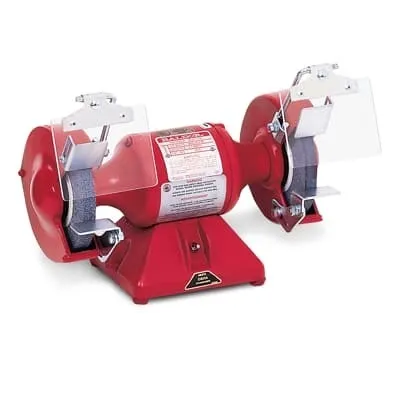

Grinders/Buffers/Lathes/Belt Sander
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
30.844 kg
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.4 A
Rated Speed
3600 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1 PH, GRND,
Standards
Other
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V
Feature: 0.5 HP, 3600 r/min single-phase output. Business Impact: Delivers dependable torque for small-scale automation without oversizing, reducing energy waste and heat in continuous-running tasks. Application: Ideal for light-duty grinders, buffers, and small lathes in manufacturing lines. Feature: 115 V, 60 Hz, 1-phase supply. Business Impact: Simplifies electrical design and minimizes wiring complexity on standard plant power rails, enabling faster installation. Application: Fits typical shop-floor outlets and OEM control panels used in packaging lines. Feature: Foot-mounted, horizontal orientation with GRND enclosure. Business Impact: eases installation alignment and improves protection in damp or dusty environments, lowering misalignment risk and maintenance costs. Application: Conveyor and drive systems in material handling and general machining. Feature: Insulation Class B and ambient temperature rating to 40 °C. Business Impact: Enhances reliability in moderate-temperature facilities and reduces thermal wear, extending motor life and reducing warranty claims. Application: Continuous-duty applications in North American facilities. Feature: Shaft diameter 0.63 in and 12.25 in net width with 12.813 in net height. Business Impact: Enables straightforward coupling with common belt/pulley assemblies and compact machine footprints, saving space in panel or pedestal mounts. Application: Drive systems for small equipment carts, polishers, and light-duty grinders. Feature: Stocked at multiple US and global warehouses with CSA-certified compliance. Business Impact: Short lead times, predictable procurement, and faster maintenance cycles, improving uptime and serviceability. Application: OEM sourcing and aftermarket service for Baldor-Reliance 712RE families.
